The Ultimate Guide to Floor Safe Installation
Published: Jan 22, 2026
Here’s a startling fact that might change how you think about security: a $5,000 high-tech safe secured with weak concrete can be defeated faster than a $500 basic safe installed correctly. The truth is, the strongest safe in the world is only as secure as the foundation it’s anchored to. A determined thief won’t waste time attacking the door; they’ll attack the installation itself, exploiting weak concrete and improper anchoring to pry the entire unit out of the floor.
Most installation guides tell you what to do, but they skip the most important part: why you're doing it. They’ll give you a concrete mix ratio without explaining what makes it strong, or tell you to use anchor bolts without explaining how they can fail.
This guide is different. We’re going to pull back the curtain on the science of a truly secure floor safe installation. Think of us as that knowledgeable friend who loves to explain how things work. By the end, you won't just know the steps; you'll understand the principles, empowering you to create a foundation as impenetrable as the safe itself.
Foundation: Understanding the Fortress Under Your Feet
Before you ever pick up a shovel, understanding the materials is crucial. Your floor isn’t just a surface; it’s the bedrock of your security system. Getting this part right is everything.
The Science of Security: Concrete Strength (PSI) Explained
You’ve probably seen "PSI" on bags of concrete mix, but what does it actually mean for security? PSI stands for "Pounds per Square Inch," and it measures compressive strength—how much pressure the concrete can withstand before it crushes.
Think of it like this:
- Low-PSI Concrete (under 3000 PSI): This is like a cracker. It's brittle and crumbles easily under focused pressure, like from the tip of a crowbar.
- High-PSI Concrete (4000+ PSI): This is like a solid stone. It’s dense and incredibly resistant to crushing and chipping.
When a thief tries to pry a safe out, they leverage their tools against the surrounding concrete. If that concrete is low-PSI, it will fracture and crumble, giving the anchor bolts nothing to hold onto. For floor safe installation, 4000 PSI is the minimum professional standard. Anything less is an open invitation for a brute-force attack.

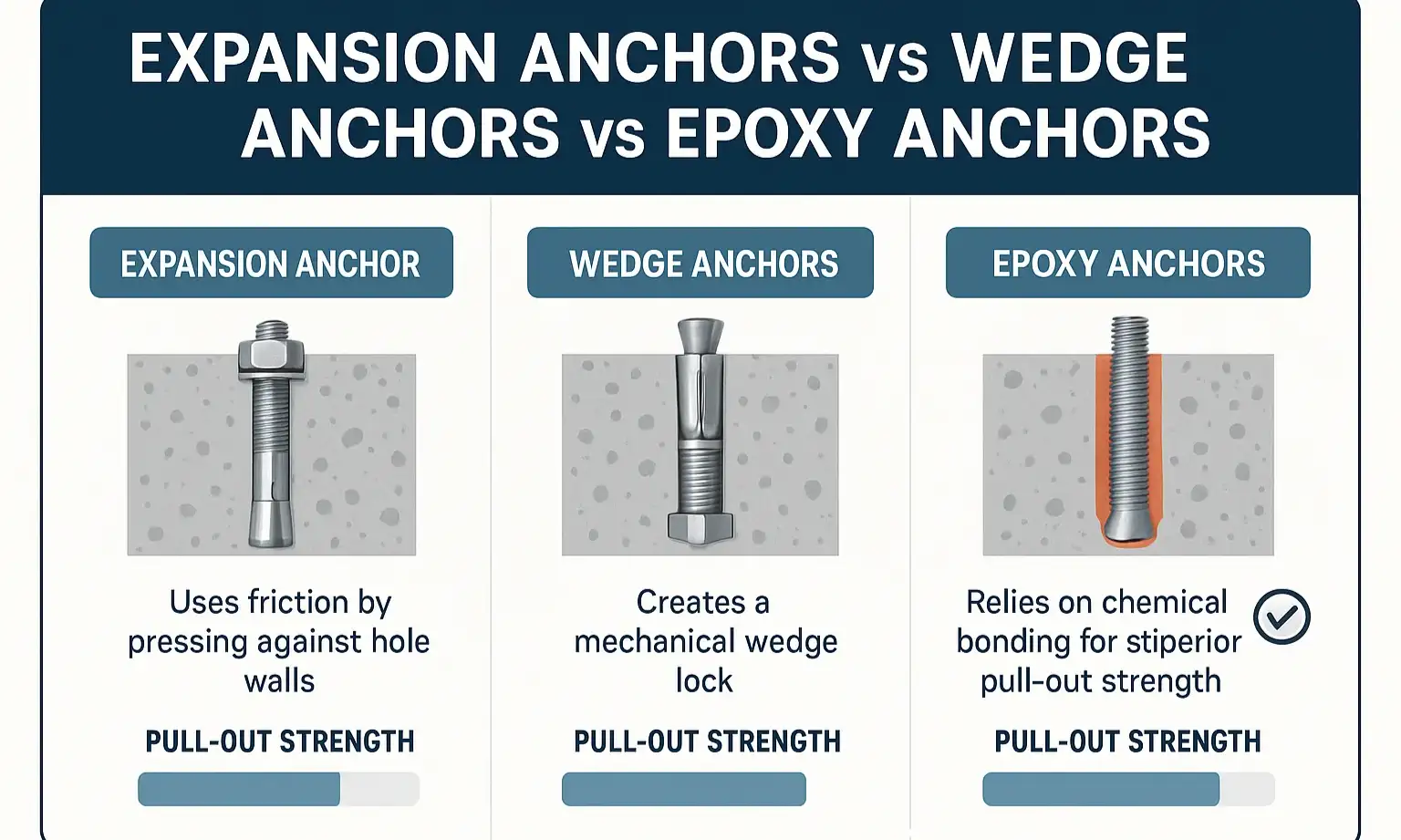

The Anchoring Trinity: Expansion vs. Wedge vs. Epoxy Anchors
Anchor bolts are the final connection between your safe and its concrete fortress. But not all anchors are created equal. They work in fundamentally different ways, and choosing the right one is critical.
- Expansion Anchors (Mechanical): These work by expanding a sleeve against the sides of the drilled hole, creating a friction hold. They are common and easy to install, but their holding power is limited by the quality of the concrete.
- Wedge Anchors (Mechanical): A step up from expansion anchors, these use a wedge-and-clip system that bites into the concrete as the bolt is tightened. They offer better hold but are still dependent on the concrete's integrity.
- Epoxy (Adhesive) Anchors (Chemical): This is the gold standard for high-security applications. A two-part epoxy is injected into the drill hole before the threaded rod is inserted. The epoxy cures, forming a chemical bond with the concrete and the anchor itself. This creates a bond that is often stronger than the concrete, providing vastly superior pull-out strength and resistance to vibration and shock.
For maximum security, epoxy anchors are the clear winner. While mechanical anchors can be sufficient in high-PSI concrete, an epoxy system turns the anchor and concrete into a single, unified block.
Pre-Installation Checklist: Is Your Slab Safe?
Before cutting into any concrete, you must identify potential hazards hidden within the slab. Cutting into the wrong thing can be catastrophic.
- Post-Tension Slabs: Common in modern construction, these slabs contain high-tension steel cables that are vital to the building's structural integrity. Cutting one of these cables can cause it to snap with explosive force, resulting in severe injury or property damage. Signs include stamped warnings on the garage floor or visible cable ends on the slab edge. If you suspect you have a post-tension slab, do not proceed. You must consult a structural engineer or a highly experienced safe installation professional.
- Radiant Heating: Many modern homes have heating tubes embedded in the concrete. Cutting into one of these will cause a costly flood. Use an infrared (IR) thermal imager to map out the tube locations before choosing a spot.
- Plumbing and Electrical Conduits: Always check building plans or use a concrete scanner to ensure you aren't drilling into hidden utilities.
Building: The Step-by-Step Professional Installation Guide
Once you've done your homework, it's time to build your foundation. Follow these phases carefully for a result that provides true peace of mind.
Phase 1: Excavation and Base Preparation
- Mark Your Area: Place the safe where you want it and trace its outline. Then, mark an excavation area that is at least 6 inches wider than the safe on all sides.
- Cut and Excavate: Using a concrete saw with a diamond blade, cut along your marked lines. Break up the concrete inside the lines with a sledgehammer or jackhammer and remove the debris.
- Dig to Depth: Excavate the soil underneath to a depth that allows for at least 4-6 inches of concrete below the safe and has the top of the safe sitting flush with your finished floor level.
- Create a Stable Base: Compact the soil at the bottom of the hole and add a 2-inch layer of gravel for drainage and stability.

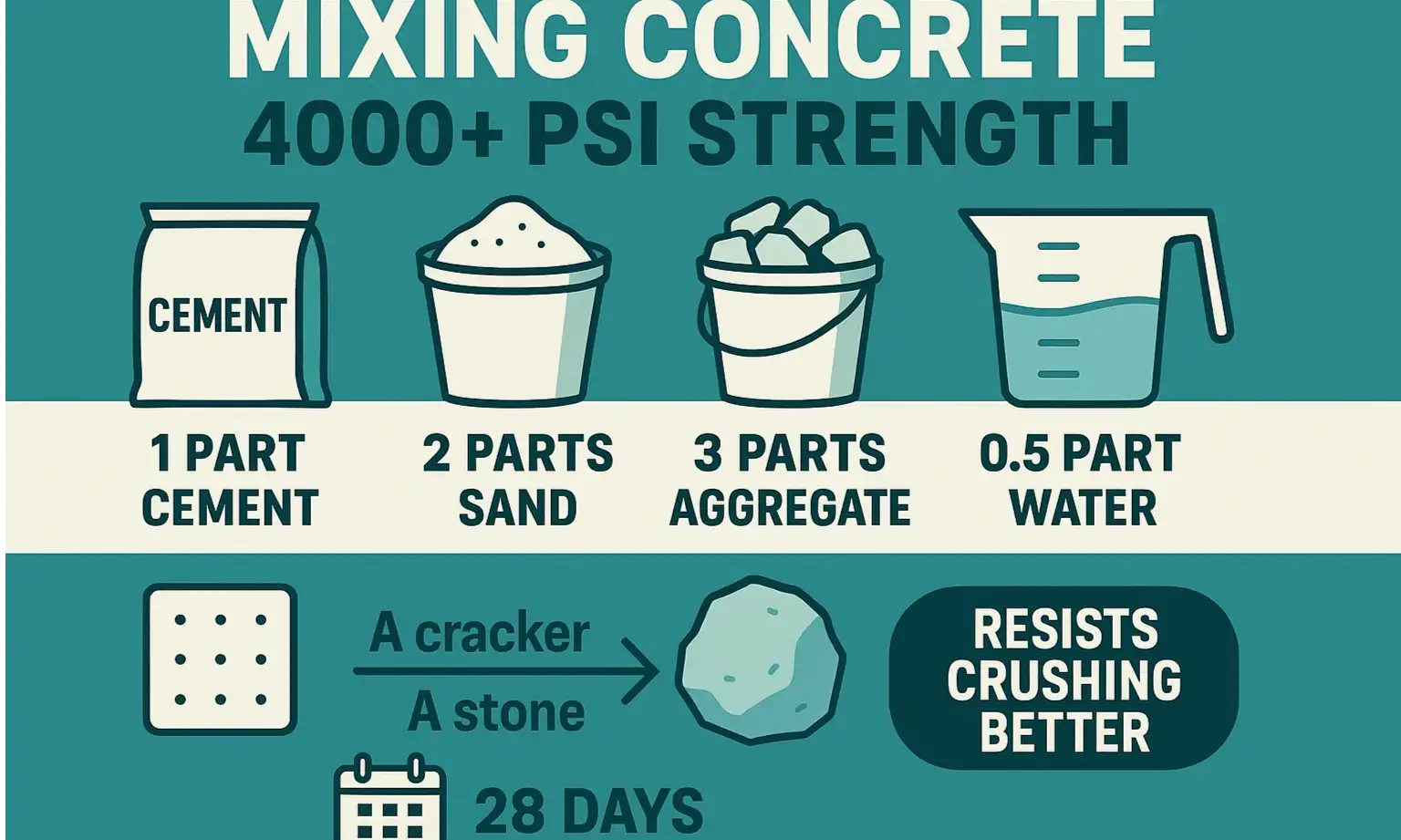

Phase 2: Mixing the Optimal Concrete (The 4000+ PSI Recipe)
This is where you create your fortress. Don't just grab any bag of concrete mix. To achieve a 4000+ PSI rating, you need the right ingredients in the right proportions. A standard, high-strength recipe is a 1:2:3 mix: one part cement, two parts sand, and three parts aggregate (gravel).
Pro Tip: Add just enough water to make the mix workable, like thick oatmeal. Too much water drastically reduces the final strength of the concrete.
Phase 3: Setting the Safe & Pouring The Concrete
- Pour the Base: Fill the bottom of the hole with your mixed concrete to the required depth (4-6 inches).
- Position the Safe: Carefully lower the safe into the wet concrete. Use a level to ensure it is perfectly straight on all axes.
- Pour the Sides: Fill the gaps around the safe with concrete, using a stick to poke and agitate the mix to remove any air pockets. Fill to just below the level of the top flange of the safe.
- Finish the Surface: Smooth the concrete with a trowel so it sits flush with your floor.
Phase 4: Drilling and Anchoring
This step happens after the concrete has fully cured (more on that below).
- Mark Your Holes: Use the pre-drilled holes inside your safe as a template to mark where to drill.
- Drill Precisely: Use a hammer drill and a masonry bit that matches the diameter specified for your chosen anchor bolts. Drill to the required depth, making sure to keep the drill perfectly perpendicular to the floor.
Common Mistake Callout: Not cleaning the drill hole before using epoxy. Dust and debris inside the hole can reduce the bond strength of epoxy anchors by up to 60%! Use a wire brush and compressed air to thoroughly clean every hole before injecting the adhesive.
Install the Anchors: Follow the manufacturer's instructions exactly, whether you're using mechanical or epoxy anchors. Tighten the bolts to the specified torque—over-tightening can fracture the concrete and ruin your installation.
Mastery: Advanced Security Considerations
If you want to take your security to the next level, consider these professional-grade techniques.

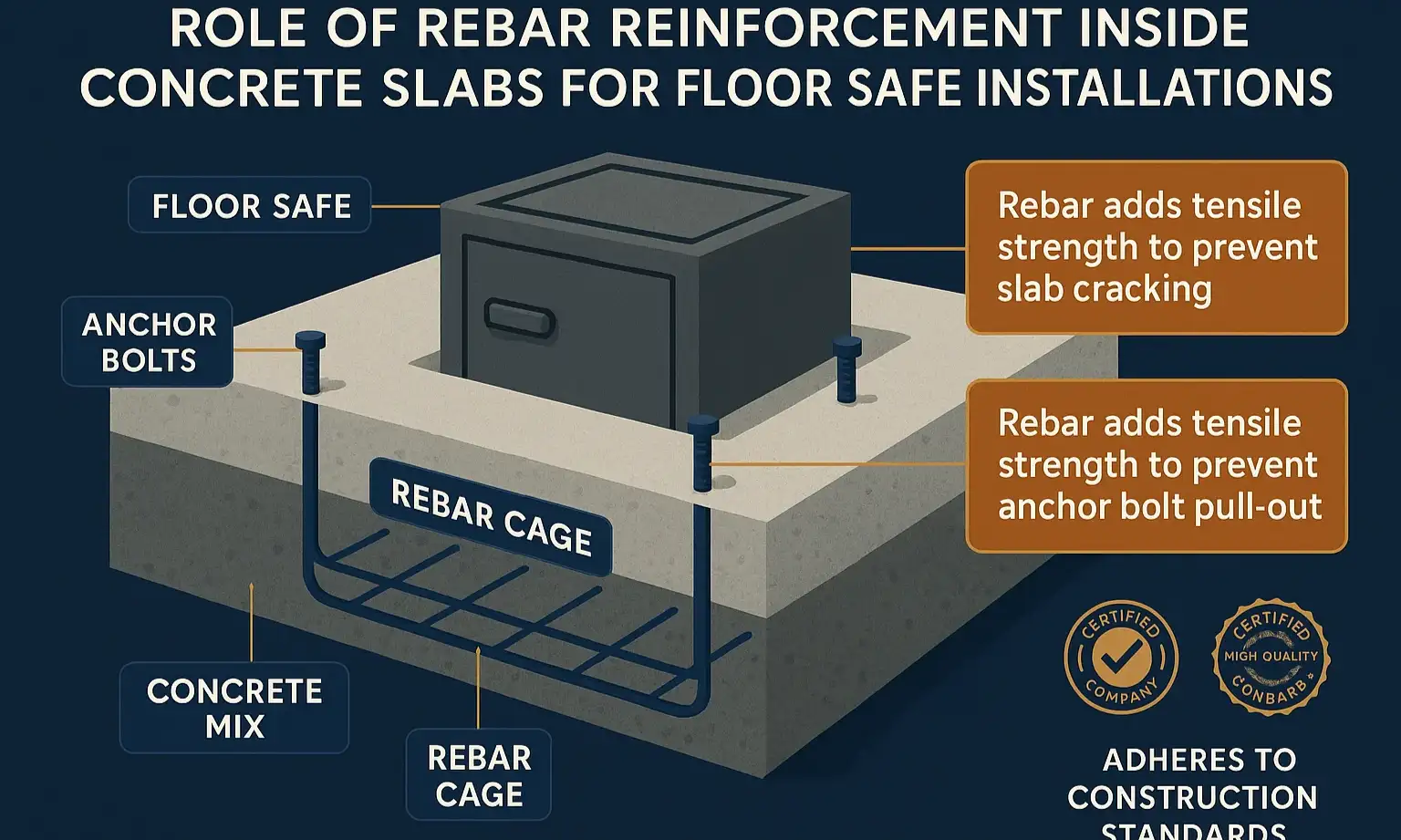

The Role of Rebar: When and How to Add Tensile Strength
Here’s that "aha moment" we promised. Concrete has incredible compressive strength (resists crushing) but very poor tensile strength (resists pulling apart). This is its Achilles' heel. A thief can exploit this by smashing the block of concrete around the safe, causing it to crack and break apart.
This is where rebar (steel reinforcing bar) comes in. Steel has amazing tensile strength. By embedding a cage of rebar into your concrete pour, you give it the tensile strength it lacks. Now, if a thief tries to smash the concrete, the rebar grid will hold it together, preventing catastrophic failure.
Curing Time vs. Security: A Timeline for Peace of Mind
This is one of the most common and dangerous misconceptions. Concrete may feel hard to the touch in 24-48 hours, but it is nowhere near its full strength. It achieves about 70% of its final strength in the first 7 days, but it takes a full 28 days to cure to its specified PSI rating.
Drilling and installing anchor bolts before the concrete has fully cured is a critical error. The uncured concrete is too soft to provide a secure grip, and the stress of tightening the bolts can cause microfractures that compromise the entire installation. Be patient—your security depends on it.
Need more information?
Get a free quote
Frequently Asked Questions (FAQ)
Can I install a floor safe in an upper-story apartment?
It is generally not recommended. Most upper floors are constructed with wood joists or thin concrete over metal decking, neither of which provides sufficient depth or strength for a secure installation. Floor safes are designed for ground-level concrete slab-on-grade foundations.
What happens if my floor safe gets wet from moisture in the concrete?
This is a major concern. Moisture from the curing concrete can get inside the safe and damage documents, electronics, or firearms. To prevent this, place desiccant packs inside your safe after installation and change them periodically. You can also coat the exterior of the safe with a waterproof sealant before placing it in the concrete.
What kind of drill bit do I need for high-PSI concrete?
For cured, high-strength concrete, you need a high-quality carbide-tipped masonry drill bit designed for use with a hammer drill. A standard drill bit will quickly dull and be ineffective.
When Professional Expertise is Your Best Security Asset
Installing a floor safe is one of the most effective ways to protect your valuables, but as you can see, doing it right involves more than just digging a hole. From identifying post-tension slabs to mixing a perfect 4000 PSI concrete batch and choosing the right anchoring system, every detail matters.
While a DIY installation can be rewarding, the risks of getting it wrong are significant. For a task this critical, leaning on professional expertise is often the wisest choice. A certified locksmith or security technician not only brings the right tools but also the experience to handle unexpected challenges and ensure your installation is truly tamper-proof.
At Sure Lock & Key, our family has been dedicated to security for over 35 years. Our licensed technicians have the training to handle complex jobs, from residential safe and vault services to comprehensive commercial security systems. If you want the ultimate peace of mind, let us build the fortress your valuables deserve.
