This isn’t just about mixing concrete. It’s about building a waterproof vault within your floor.
Phase 1: Excavation & Preparation
1. Select the Location: Choose a spot away from exterior walls, which are primary entry points for water. Also, ensure the location is discreet and easily accessible to you.
2. Scan the Concrete: CRITICAL STEP: Before cutting, you must verify that your slab is not a post-tension slab (common in some regions) and that there are no plumbing lines or electrical conduits embedded in the concrete. A concrete scanner can identify rebar and conduits. Cutting a post-tension cable is extremely dangerous.
3. Cut and Excavate: Mark out a square about 2-3 inches wider than the safe on all sides. Use a circular saw with a diamond blade to make a clean cut. Break up the concrete inside the square with a sledgehammer or jackhammer and dig out the dirt to a depth that allows the top of the safe to sit flush with the finished floor.
Common Mistake: Just digging a hole the exact size of the safe. You need extra room on all sides to create a thick, seamless layer of waterproof concrete.
Phase 2: Waterproofing the Cavity

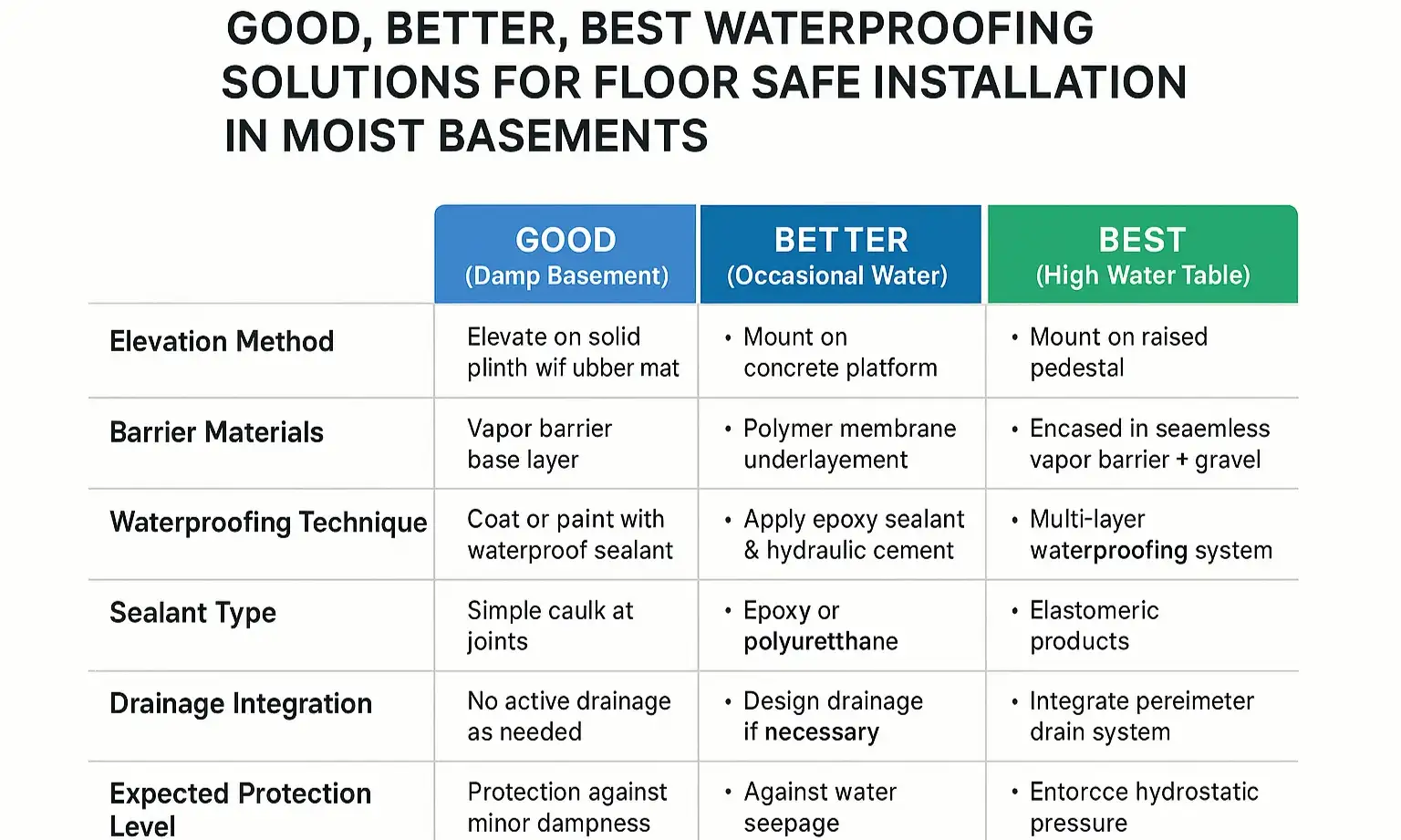

This is where you defeat moisture. Based on your risk assessment, choose the appropriate method.
Good (For Damp Basements – Low Risk)
This method focuses on creating a barrier and managing any moisture that gets through.
Materials: Heavy-duty rubber mat, concrete mixed with a waterproofing admixture.
Process:
- Line the bottom of the excavated hole with a layer of gravel for drainage.
- Place a thick, industrial rubber mat on top of the gravel. This elevates the safe off the bottom and creates a physical barrier.
- Mix your concrete with a waterproofing slurry or crystalline admixture, which seals the pores of the concrete as it cures.
Better (For Occasional Water – Medium Risk)
This approach adds layers of chemical waterproofing to the cavity itself.
Materials: Everything from “Good,” plus a cementitious tanking slurry or epoxy sealant.
Process:
- After excavating, coat the entire inside of the hole (bottom and sides) with two coats of a cement-based tanking slurry or a high-quality epoxy concrete sealant.
- Allow it to fully cure, creating a seamless waterproof “tub” in the ground.
- Proceed with the gravel, mat, and waterproof concrete mix as described in the “Good” method.
Best (For High Water Table – High Risk)

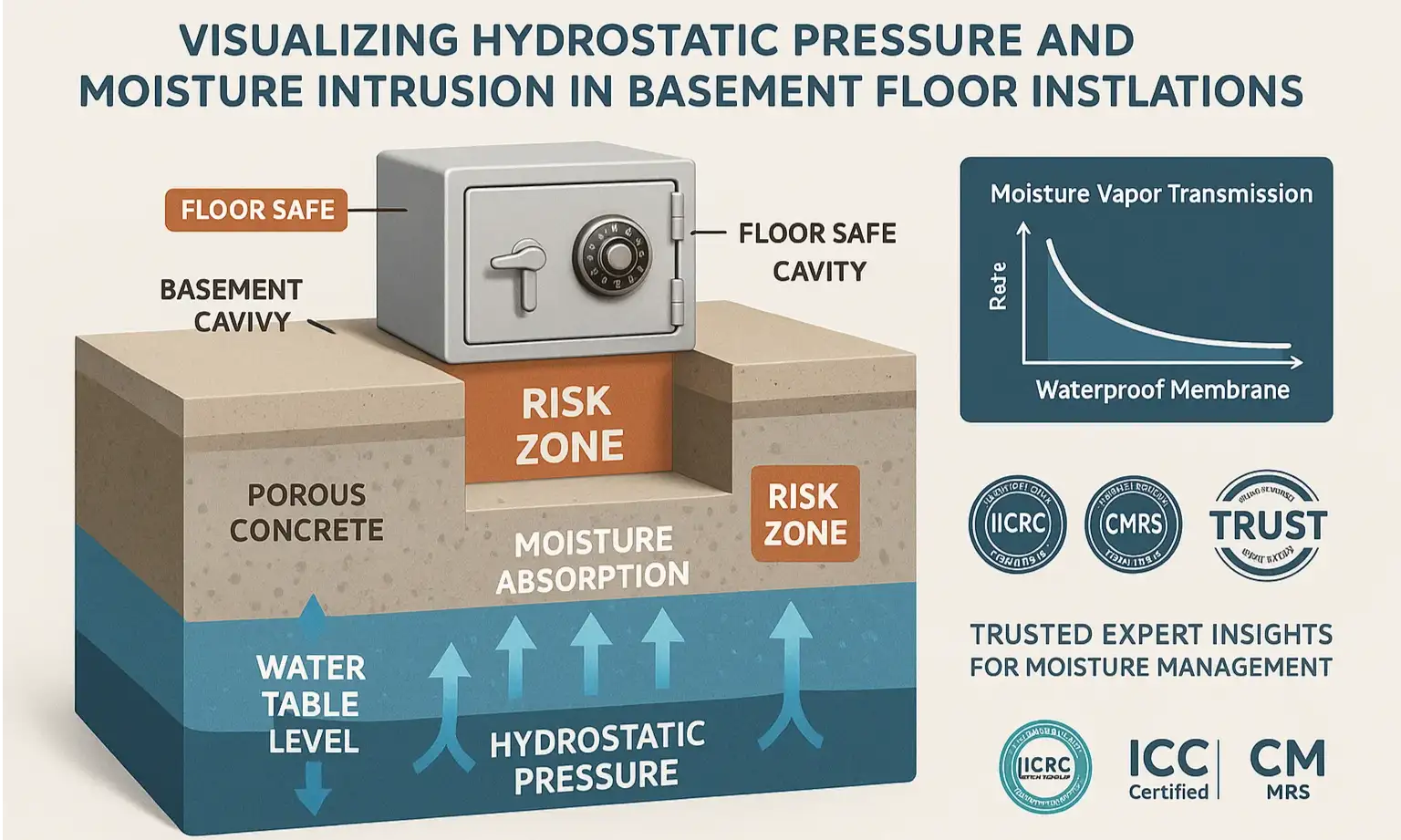

This is the ultimate solution for defeating hydrostatic pressure and ensuring a bone-dry installation.
Materials: Everything from “Better,” plus a thick, seamless 15-mil+ vapor barrier.
Process:
- After applying the epoxy sealant to the cavity, line the entire hole with a thick, puncture-resistant vapor barrier. Fold it carefully at the corners—do not cut it. Extend the barrier several inches above the floor level.
- Place the gravel base and rubber mat inside the vapor barrier liner.
- You are now ready to pour the concrete into a fully sealed, waterproof membrane.
Phase 3: Pouring the Concrete & Setting the Safe
1. Pour the Base: Pour about 2-4 inches of your waterproof concrete mix into the bottom of the prepared hole.
2. Set the Safe: Carefully lower the safe into the wet concrete, wiggling it to ensure it’s fully seated and level. The top of the safe should be perfectly flush with your floor.
3. Fill the Sides: Add concrete around the sides of the safe, using a piece of wood to tamp it down and remove any air pockets.
4. The Final Seal: For the top layer, use hydraulic cement to seal the seam between the safe’s collar and the existing concrete floor. Hydraulic cement expands as it cures, creating a truly watertight bond that regular concrete can’t match.
