A Guide to Laser-Cut & Sidewinder Car Keys

Published: Jan 20, 2026

That sinking feeling in the pit of your stomach—you can’t find your car key. A decade ago, this meant a quick, inexpensive trip to the hardware store. Today, it’s a more complex and often costly puzzle. The key in your pocket is no longer just a piece of metal; it’s a sophisticated security device.

Many people are surprised to learn that their modern car key is actually two distinct technologies working together in a single package. Understanding how they operate is the first step to making smart, cost-effective decisions when you need a replacement or a spare.

Your Car Key Is Two Keys in One

Here’s the single most important concept to grasp about modern car keys, and it clarifies nearly all the confusion around them:

The Mechanical Blade is the physical key that turns the lock. It’s what gets you in the door and allows you to turn the ignition.
The Electronic Chip is the key’s brain. It’s what tells your car’s computer, “Yes, this is the correct key, you have permission to start the engine.”

Think of it like this: the laser-cut blade gets you in the door, but the transponder chip starts the car. If either part fails, you’re not going anywhere. Let’s break down each component.

Foundation Part 1: The Mechanical Key - Understanding the Blade

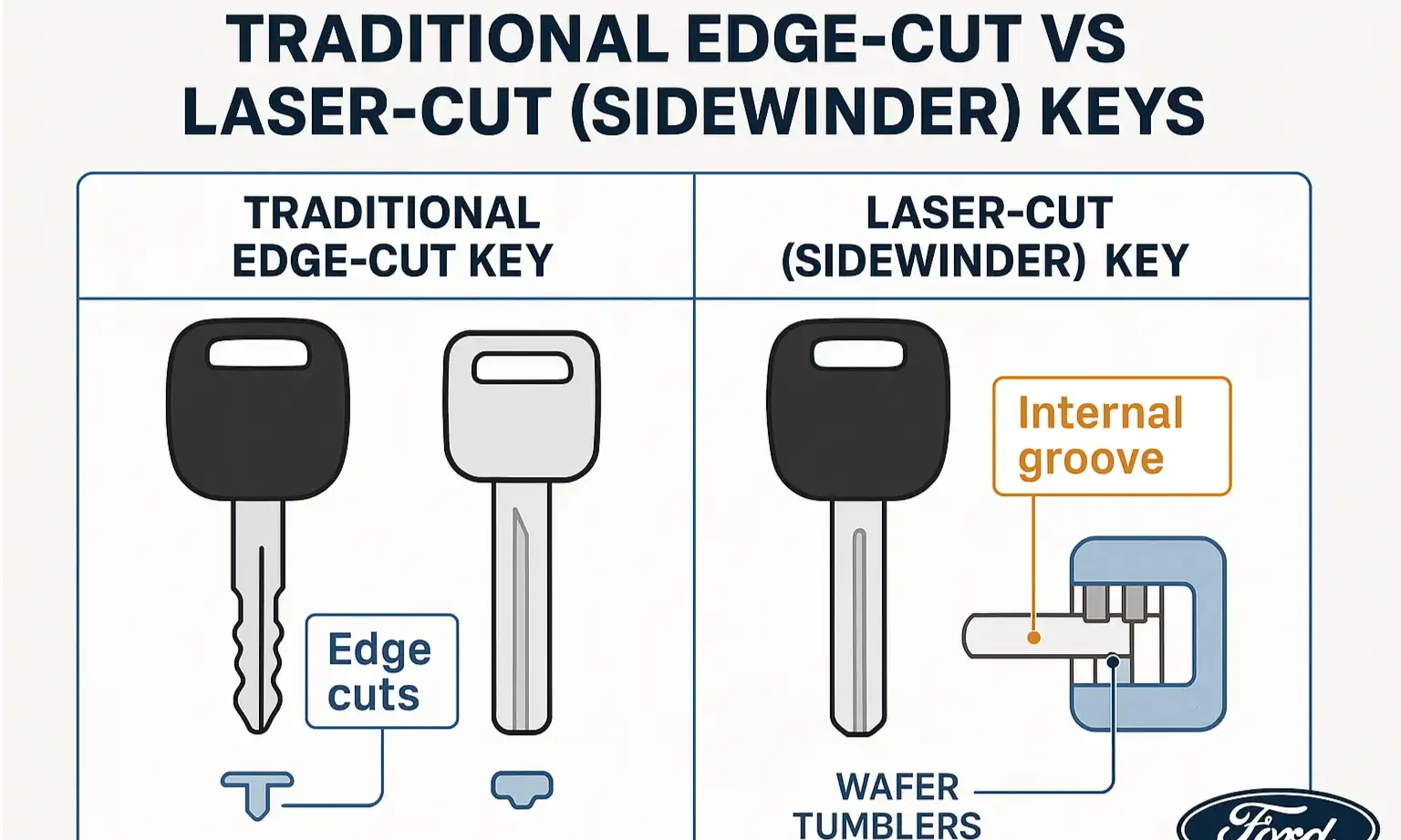

Visual comparison of traditional and laser-cut keys shows why sidewinder keys offer stronger mechanical security.

When you look at a newer car key, you’ll notice it looks different from a traditional house key. Instead of jagged teeth on the edge, it likely has a smooth, rectangular blade with a strange, winding groove milled down the middle. This is a laser-cut key, also known as a sidewinder or internal-cut key.

Unlike traditional keys that have cuts on the top and bottom, a laser-cut key’s groove interacts with pins inside the lock cylinder from both sides simultaneously. This design offers several security advantages:

Increased Complexity: The internal, often symmetrical cuts create a far more complex pattern, making the lock significantly harder to pick.
Durability: The thicker, solid blade is less prone to bending or breaking than a traditional key.
Difficult Duplication: These keys can’t be copied on the simple grinding machines found at hardware stores. They require specialized, computer-guided milling machines that can precisely replicate the internal groove.

This advanced mechanical design is the first layer of modern vehicle security. It makes unauthorized physical entry much more difficult, but it’s only half the story.

Foundation Part 2: The Electronic Brain - Understanding the Transponder

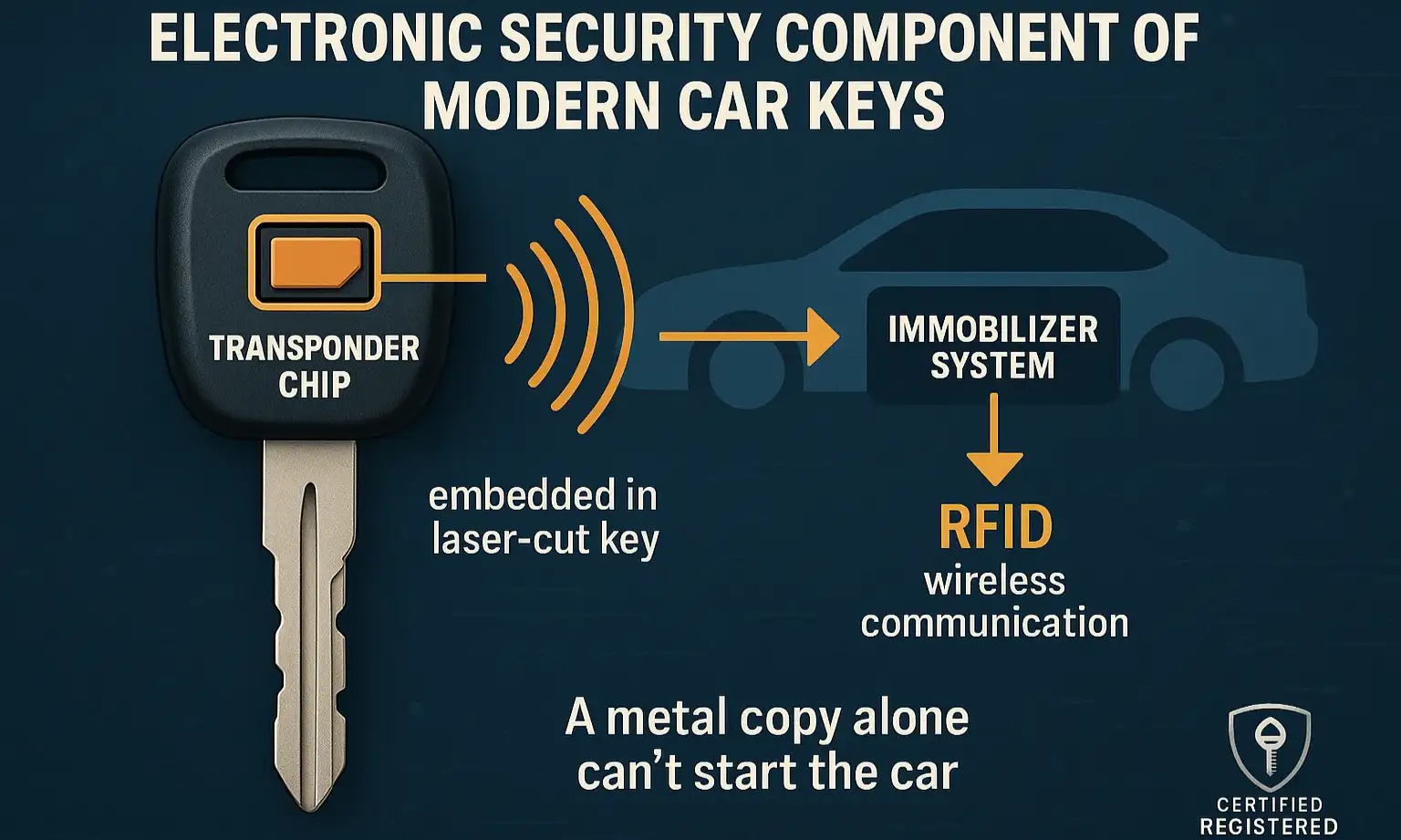

This diagram shows how a transponder chip works with a car’s immobilizer to prevent unauthorized engine starts.

Tucked away inside the plastic head of your car key is a tiny glass or ceramic capsule containing a transponder chip. This chip has no battery; it’s powered wirelessly by a radio signal sent from an antenna ring around your car’s ignition cylinder when you insert the key.

Here’s how the “digital handshake” works:

You insert the key and turn it.
The car’s immobilizer system sends out a low-frequency radio signal.
The transponder chip in your key is energized by this signal and broadcasts its unique alphanumeric security code back to the car.
If the code from the key matches the code stored in the car’s computer, the immobilizer is deactivated, and the engine is allowed to start.

If the code doesn’t match—or if there’s no code at all, like with a simple metal copy—the car will refuse to start, even if the key blade turns the ignition perfectly. This system is a powerful deterrent against hot-wiring and theft.

⚠️Common Pitfall: Don’t confuse the key’s remote functions (lock/unlock doors) with its transponder function (starting the car). They are often separate technologies in the same housing! You can have a key fob with a dead remote battery that still starts the car, because the transponder chip doesn’t need a battery to work.

Mastery: Duplication, Programming, and Common Problems

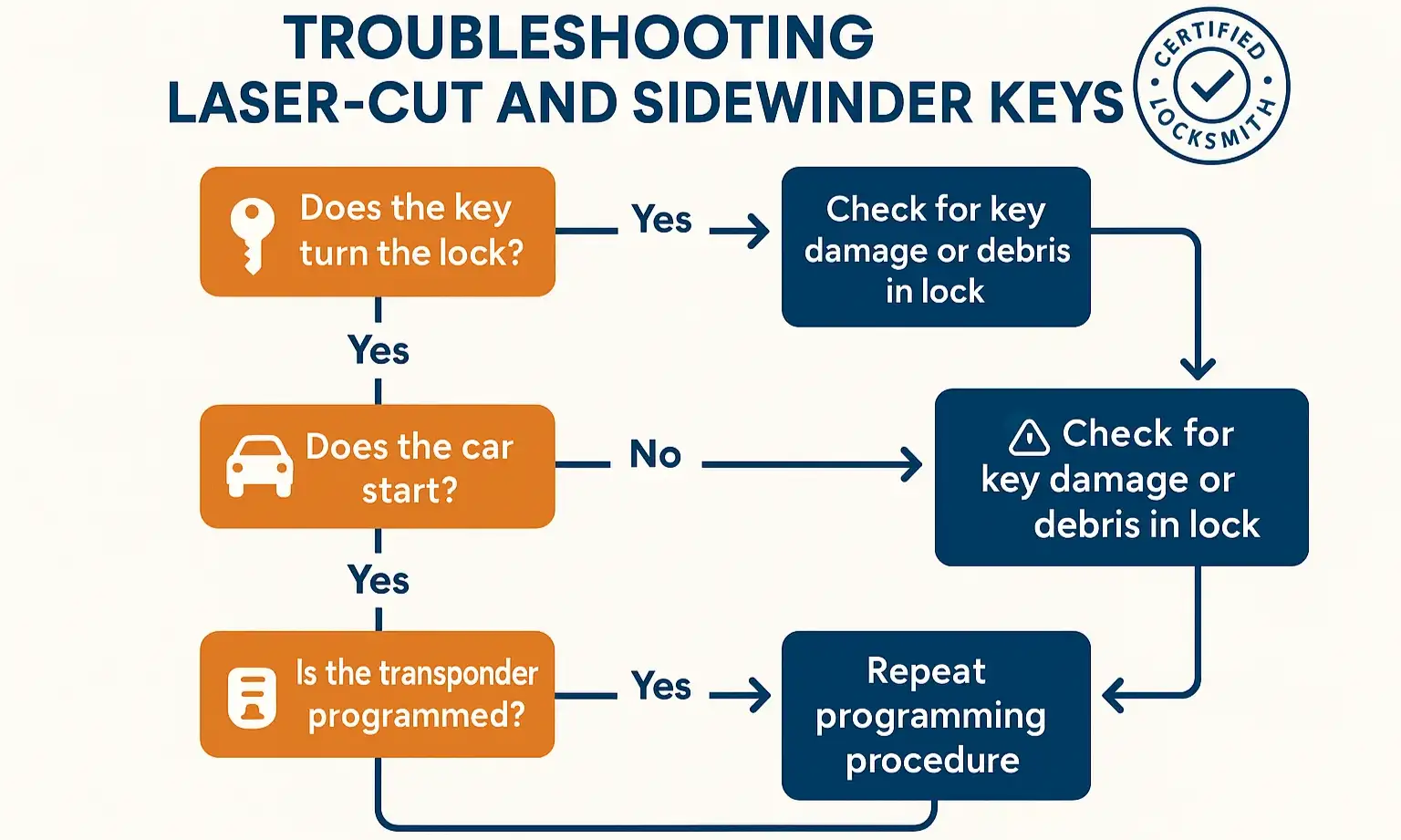

This decision flowchart helps readers diagnose and fix key duplication or programming issues with confidence.

So, you need a new key. Because of the two-part system, getting a replacement is a two-step process:

Cutting the Blade: A professional locksmith uses a special laser key cutting machine to mill the unique groove into a new key blank.
Programming the Chip: The technician then uses a diagnostic tool that plugs into your car’s OBD-II port to introduce the new key’s transponder chip to the vehicle’s computer.

This specialized equipment and software are why getting a modern car key replacement costs more than a simple copy. The investment in high-tech machinery and constant software updates is significant.

When a new key isn’t working right, the problem almost always falls into one of a few categories, which this flowchart can help you diagnose.

Action: Making Smart Decisions

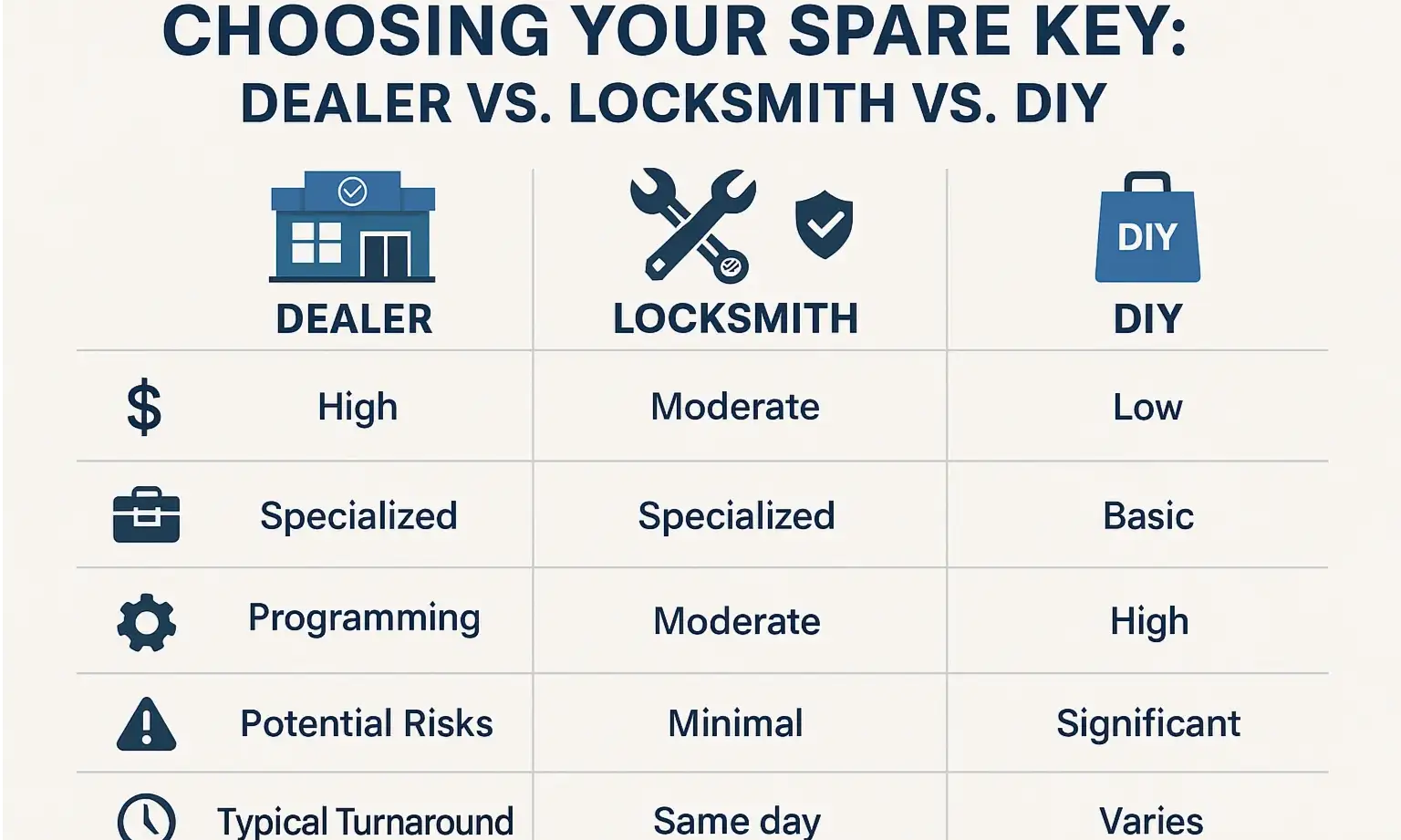

This infographic compares dealer, locksmith, and DIY key duplication options to help users make informed, cost-effective choices.

When it’s time to get a spare or replacement key, you have a few options. Understanding the pros and cons of each can save you time, money, and frustration.

Car Dealership: They can always make a key for your vehicle, but they are almost always the most expensive option. You’ll also need to get your car to them, which can be a problem if you’ve lost all your keys.
Professional Automotive Locksmith: A qualified locksmith with mobile service vans has the same cutting and programming equipment as a dealer. They are typically more affordable and can come to your location, which is a huge advantage in an emergency. They are experts in all things keys, including complex situations involving key fob & remote programming.
DIY (Online Blanks): Buying a key blank online can seem like a cheap option, but it’s risky. You might get a low-quality counterfeit, the wrong model, or a key with a chip that can’t be programmed. Many locksmiths are hesitant to work with customer-provided keys because if the programming fails, it’s unclear if the fault is with the key or their equipment.

When you call a locksmith, be prepared to provide your car’s make, model, and year. This helps them ensure they have the right key blank and programming software for your specific vehicle.

Your High-Security Key FAQ

My new key turns the lock but won't start the car. Why?

This is the classic symptom of a key that has been cut correctly but not programmed. The mechanical blade is working, but the car’s immobilizer doesn’t recognize the electronic transponder chip. The chip needs to be programmed to your vehicle’s computer.

Can a hardware store or self-service kiosk cut my laser-cut key?

Almost certainly not. The machinery required to cut the internal grooves of a sidewinder key is completely different from the traditional key grinders these places use. You need a specialist with the proper equipment.

Is a "Do Not Duplicate" stamp on a car key meaningful?

On most consumer car keys, this stamp is more of a request than a security feature. It doesn’t prevent a professional locksmith with the right equipment and proof of ownership from creating a new key. True high-security, restricted keys are typically found in commercial settings.

What's the real difference between a locksmith and the dealer?

The main differences are typically cost and convenience. A mobile automotive locksmith can perform the same car key duplication and programming services as a dealer, often for a lower price and without you needing to have your car towed. In situations like a complete key loss or a faulty ignition, where you can’t drive the car, a mobile service is invaluable.

What happens if I'm locked out but have a laser-cut key?

The type of key doesn’t change the process for a professional. A trained locksmith has specialized tools to handle high-security locks without damage. A reliable car lockout service can get you back in your vehicle safely.

The Key to Your Security

Your car key is the first line of defense for one of your most valuable assets. By understanding that it’s a combination of a precise mechanical tool and a sophisticated electronic device, you can better appreciate its role in your vehicle’s security. When you need a copy or a replacement, making an informed choice not only saves you money but also ensures your car remains secure.
