The Key to Understanding Locks: A Beginner’s Guide to Pin Tumbler Mechanics

Published: Jan 29, 2026 | Updated: Aug 14, 2026

Have you ever stopped to think about the everyday magic of a key? This small, grooved piece of metal slides into a lock, and with a simple twist, a heavy door swings open. It feels effortless, but inside that lock is a miniature mechanical puzzle working in perfect harmony. Understanding this puzzle is the first step to truly understanding your own home security.

At Sure Lock & Key, we believe that an informed homeowner is a secure homeowner. This isn’t a guide on how to perform illicit activities; it’s a look under the hood of the most common lock in the world. Think of it as a friendly chat over coffee, where we pull back the curtain on the simple genius you rely on every single day. By the end, you’ll see your keys—and your security—in a whole new light.

Foundation: Meet the 5 Core Components

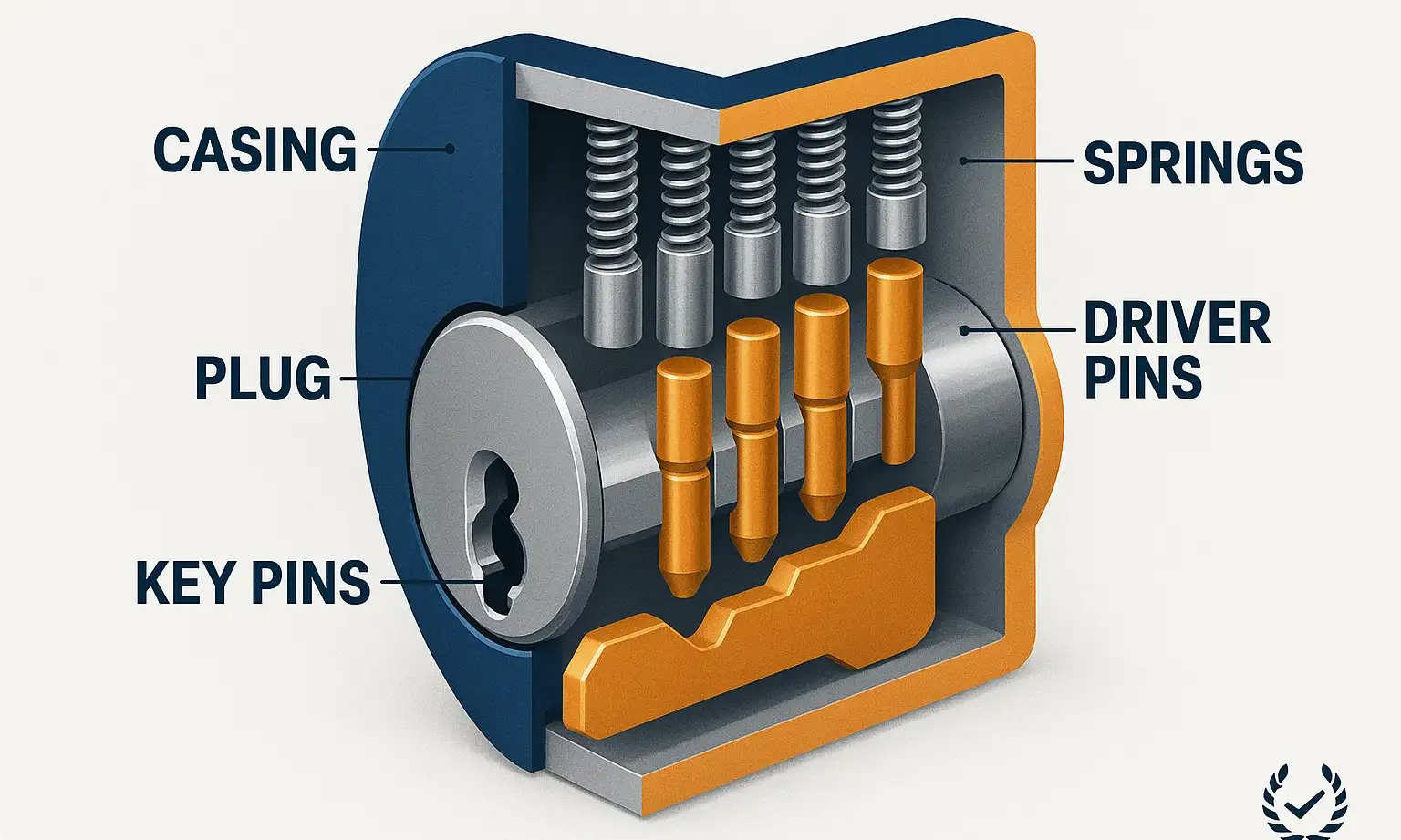

Visual highlights the five key parts of a pin tumbler lock and how the key interacts with them.

Before we can understand the magic, we need to meet the players. A standard pin tumbler lock, despite its importance, is made of just five essential parts. Each one has a single, crucial job to do.

Casing (or Housing): This is the outer body of the lock that holds everything together. It doesn’t move.
Plug (or Cylinder): This is the inner part that you put your key into. It’s the only part of the lock that is supposed to rotate.
Key Pins: These small pins come in different lengths and sit inside the plug. They are what the key directly touches and pushes up. The unique pattern of your key’s “bitting” (the jagged edge) corresponds to the lengths of these key pins.
Driver Pins: These are flat-topped pins that sit on top of the key pins, pushed down by springs. In a locked state, these pins cross the boundary between the plug and the casing, preventing the plug from turning.
Springs: Located at the very top, these tiny springs provide the tension that pushes the driver and key pins down, keeping the lock secure until the correct key is inserted.

That’s it. Casing, plug, two sets of pins, and springs. The secret to how they work together lies in one invisible line.

Building: The Magic of the Shear Line

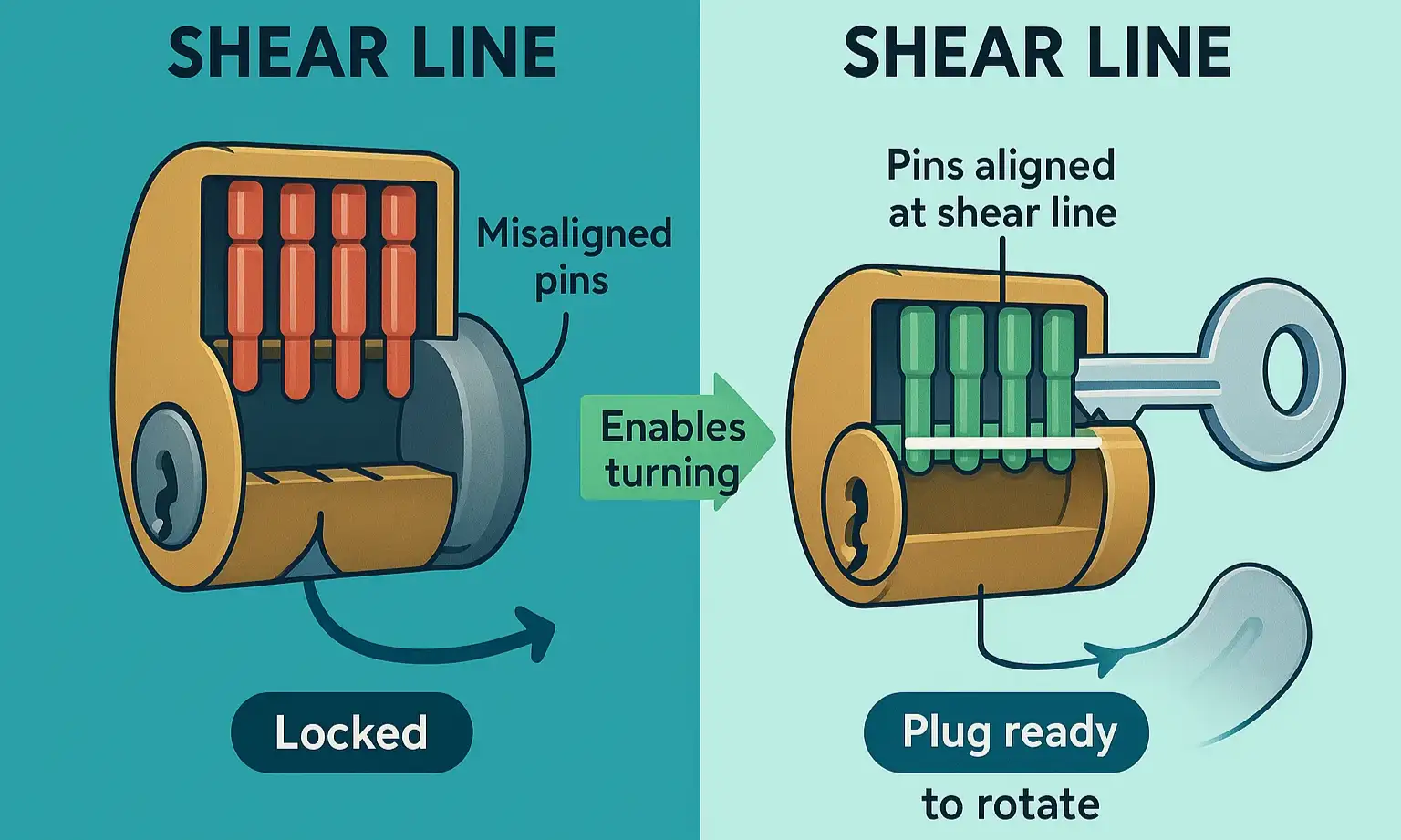

Visualizing the critical shear line alignment that allows your key to turn the lock—understanding this unlocks the mystery of non-destructive entry.

This is the “aha moment” in understanding any lock. The shear line is the tiny, invisible gap between the stationary outer casing and the rotating inner plug. For the lock to open, this line must be completely clear of obstructions.

When the lock is locked, the driver pins are partially in the plug and partially in the casing, bridging the shear line and acting like a bolt, preventing the plug from turning.

When you insert the correct key, something beautiful happens. Each cut on the key pushes its corresponding key pin up to a precise height. This, in turn, pushes the driver pin up. The correct key aligns the top of every key pin and the bottom of every driver pin perfectly with the shear line.

With the gap now clear, the plug is free to rotate, and the door unlocks.

An incorrect key will push the pins either too high or not high enough. Even if just one pin remains across the shear line, the lock will not open. This simple principle is why your key works in your front door but not your neighbor’s.

Mastery: Introduction to Lock Picking & Security Pins

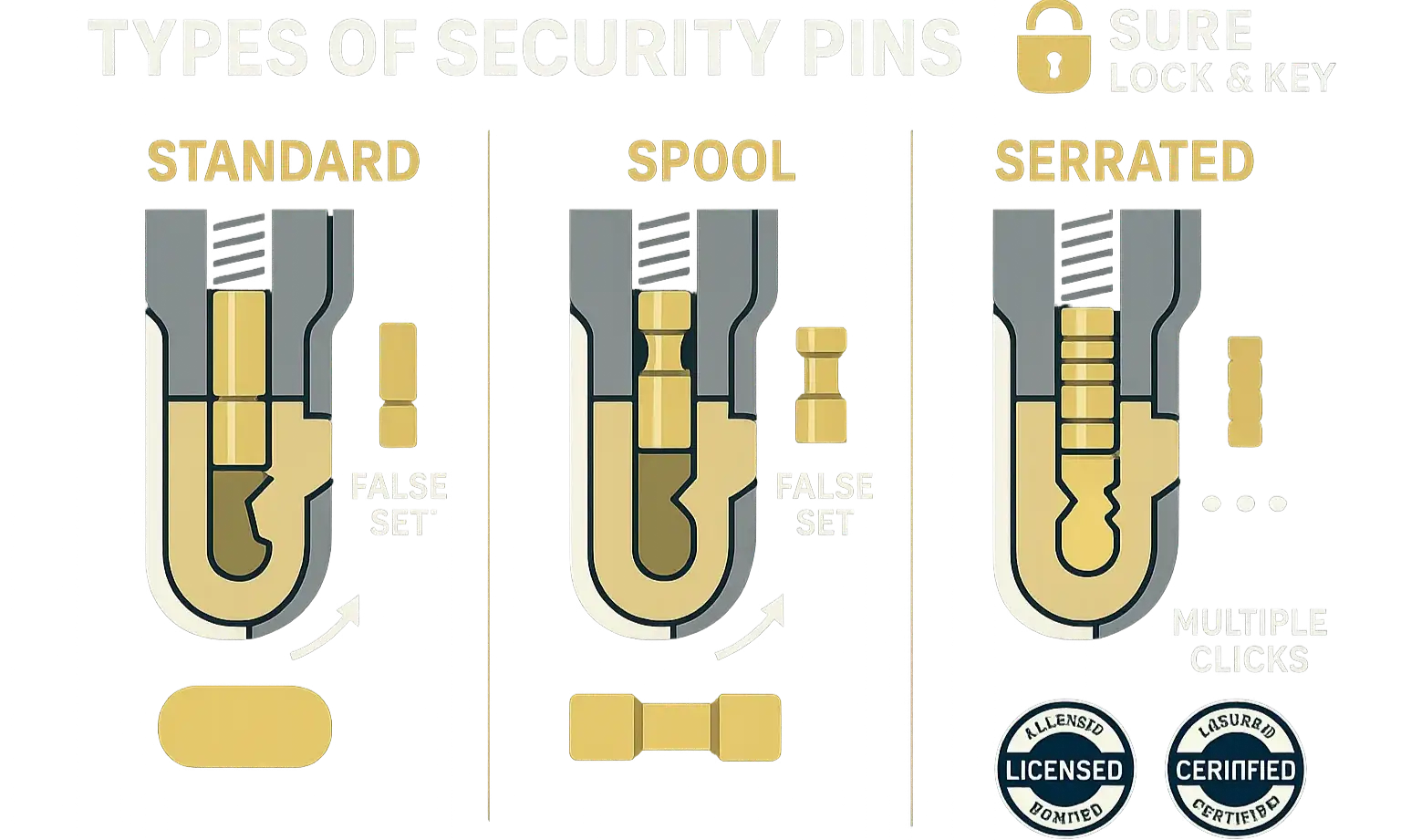

Understanding security pins is key to mastering lock mechanics—see how each type creates unique challenges in non-destructive entry methods.

So, how do non-destructive entry techniques work? In essence, lock picking is the art of manually recreating the job of a key, one pin at a time. This is achieved by applying slight rotational pressure (tension) to the plug. Due to microscopic imperfections in the lock, this tension causes one pin to “bind” before the others. A pick is then used to lift that binding pin until it sets at the shear line, creating a tiny click and a slight rotation of the plug. This process is repeated for each pin until the lock opens.

However, lock manufacturers are well aware of these techniques. To counter them, they developed security pins. These are cleverly designed driver pins that provide false feedback, making the lock much harder to manipulate open.

Here are the most common types you’ll find:

Spool Pins: Shaped like a spool of thread, these pins get caught at the shear line as you try to lift them. This gives the sensation that the lock is opening—what’s known as a “false set.” Applying more pressure is a beginner’s mistake; the picker must actually release tension slightly to maneuver the spool past the ledge.
Serrated Pins: These pins have multiple grooves along their sides. As you lift them, they produce several clicks, making it difficult to know which click is the true “set” at the shear line. They are designed purely to confuse and create uncertainty.
Mushroom Pins: Similar to spools, these pins have a flared end that catches at the shear line, creating a false set and making manipulation difficult.

The presence of these pins is often what separates a basic, low-cost lock from a genuinely secure one.

Action: Why This Matters for Your Home Security

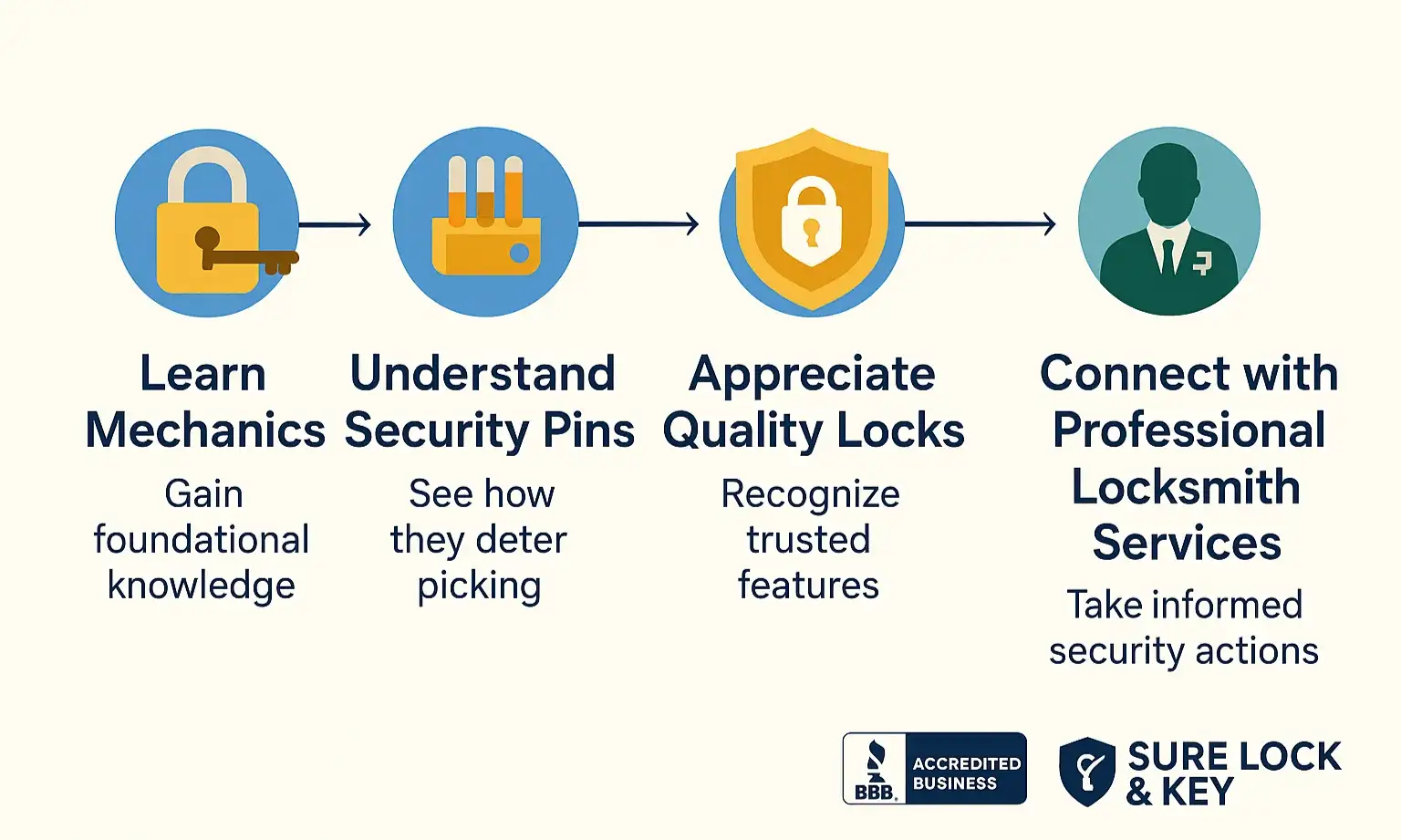

Your journey from understanding pin tumbler locks to securing your home starts here—empowered, informed, and confident.

Understanding how a pin tumbler lock works isn’t just a fun mental exercise; it’s the foundation of your home’s physical security. You now know that the core of your security lies in the complexity of the key and, more importantly, the quality of the pins inside the lock.

This knowledge empowers you to ask better questions:

Does my front door lock have security pins?
Is the cheap lock I bought from a big-box store truly secure?
When I moved in, did the previous owner return all their keys?

Suddenly, services like professional lock rekeying — which changes the internal pins to work with a new key without replacing the whole lock—make perfect sense. You might also see the value in upgrading to a high-security lock installation that uses patented keyways and complex security pins designed to resist manipulation. And if you’re ever locked out, you’ll understand why calling a professional locksmith who specializes in non-destructive methods is crucial to protect your hardware, especially if you have faced emergency home lockouts.

Frequently Asked Questions About Lock Mechanics

What is a pin tumbler lock?

A pin tumbler lock is the most common type of lock in use today. It uses pins of varying lengths to prevent it from opening without the correct key. As we’ve learned, the key’s job is to align these pins perfectly at the shear line.

Why is the 'shear line' so important?

The shear line is the entire basis of how the lock works. It’s the physical gap between the part of the lock that needs to turn (the plug) and the part that stays still (the casing). If that gap isn’t clear, the lock is just a solid piece of metal.

What's the difference between rekeying and replacing a lock?

Replacing a lock means removing the entire piece of hardware and installing a new one. Rekeying is a more subtle and cost-effective process where a locksmith changes the key pins inside the existing lock cylinder. This renders old keys useless and provides you with a brand-new key for the same lock—perfect for when you move into a new home or lose a set of keys.

Do security pins make a lock unpickable?

No lock is truly “unpickable,” but security pins make the process exponentially more difficult, time-consuming, and noisy. They require a high level of skill and specialized tools to defeat. For a potential intruder looking for a quick and quiet entry, a lock with good security pins is a powerful deterrent. Considering a modern alternative? A smart lock installation can offer keyless convenience and enhanced security features.

From Knowledge to Confidence

You started this journey with a simple key in your hand, and now you understand the intricate dance of pins, springs, and shear lines happening on the other side of the door. You’re no longer just a user of a lock; you’re an informed owner of your security.

This knowledge is your first and best tool. It helps you assess your own home, ask the right questions, and make confident decisions. If this exploration has you thinking about your own locks, our team of licensed technicians is always here to help. At Sure Lock & Key, our family’s mission for over 35 years has been to provide not just service, but peace of mind.
