Your Complete Guide to Outside Trim for Push Bar Doors

Published: Mar 27, 2026 | Updated: May 29, 2026

You’ve seen them a thousand times—the emergency exit doors at malls, theaters, and offices with the long horizontal bar. You know that pushing the bar gets you out quickly and easily. But have you ever stopped to look at the outside of that same door and wondered, “How do people get in? And how does this door actually get locked at night?”

It’s a common point of confusion. The answer lies in a crucial but often overlooked piece of hardware: the outside trim. This isn’t just a simple handle; it’s the control panel for your door’s exterior, dictating who can enter and when.

Understanding your outside trim options is the key to balancing seamless emergency egress with robust, controlled security for your building.

What is an Outside Trim and Why Does it Matter?

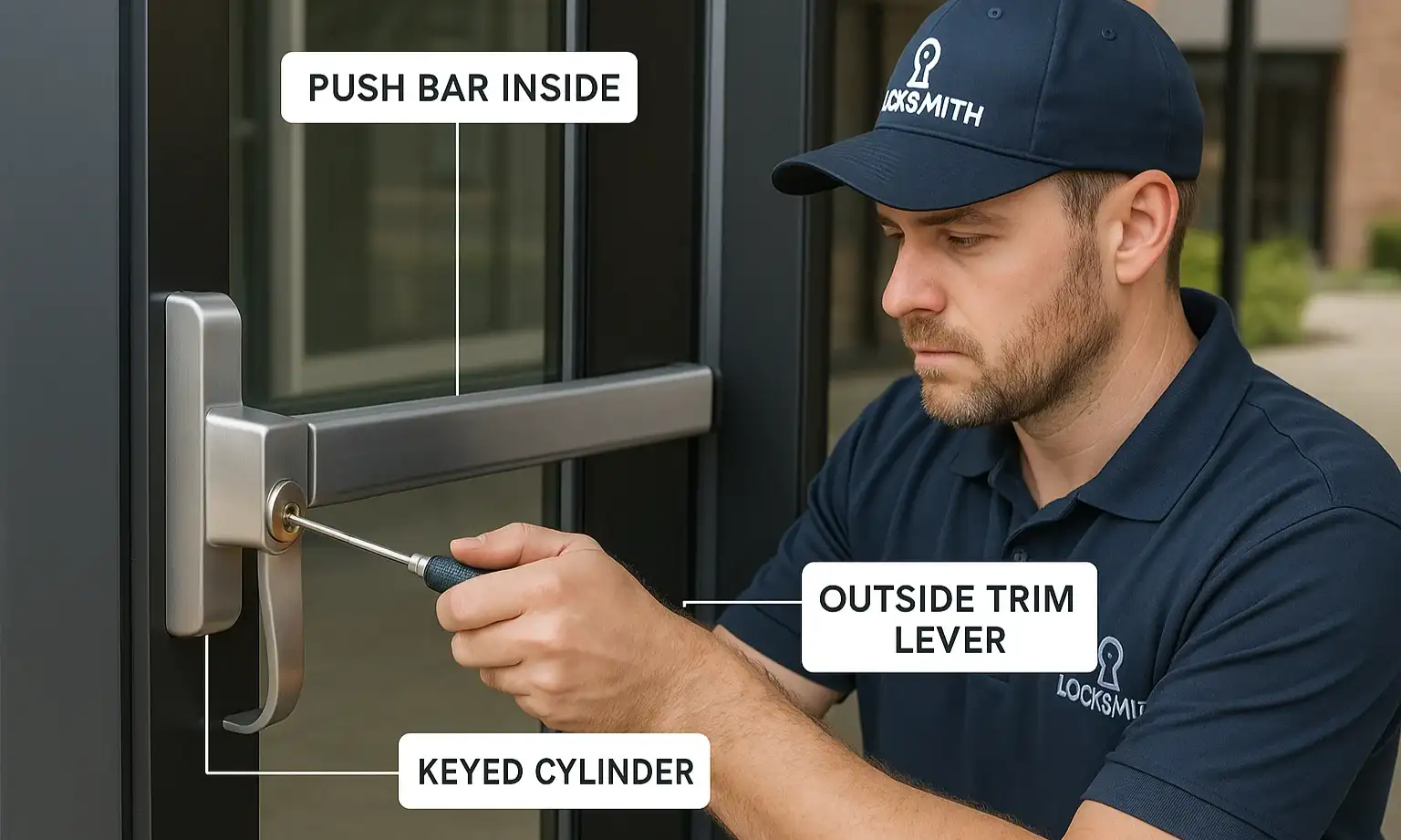

Expertise in action: See how a keyed lever trim integrates with a push bar door to provide secure exterior access while allowing free egress inside.

Let’s start with the core “aha!” moment: Outside trim is the handle and lock mechanism for the outside of a door that is designed for free exit from the inside.

While the internal push bar (also known as a panic bar or crash bar) is all about getting out, the outside trim is all about controlling who gets in. It’s the component that allows a staff member with a key to enter, a delivery person to use a handle on an unlocked door, or secures the building completely after hours.

Think of it as the gatekeeper. Without the correct trim, a push bar door is either a security risk (always open from the outside) or an operational headache (completely inaccessible from the outside). The trim you choose determines its functionality.

The entire assembly, including the push bar and the trim, is part of a larger system known as an exit device. Choosing the right exterior component is fundamental to making that system work for your security needs.

The Core Types of Trim: From Simple Handles to Keyed Security

Outside trim comes in several distinct functions, each designed for a specific purpose. Understanding these core types is the first step to selecting the right one.

Dummy Trim (Push/Pull Plate)

This is the most basic option. It’s a simple pull handle or plate with no mechanical latching function. The door latch is controlled only by the push bar inside.

How it Works: It’s a non-functioning handle. If the door is unlocked from the inside (often via a feature called “dogging”), the dummy trim can be used to pull the door open. If the door is latched, this trim does nothing.

Use This When: You need a way to pull open an exit door that is intentionally left unlocked for periods of high traffic, like the main entrance to a store during business hours.

Security Rating: Minimal. It offers no security on its own.

Passage Trim (Lever or Knob)

A passage trim is a functional lever or knob that is always unlocked. When you turn the handle from the outside, it retracts the latch, opening the door.

How it Works: The handle is always active. It provides free access from the outside at all times.

Use This When: The door needs to be accessible from both sides without a key, such as a connecting door between two secure office areas or a restroom door.

Security Rating: Low. It is not designed for exterior security doors.

Keyed Entry Trim (Lever or Knob with Key Cylinder)

This is the most common type for secure exterior doors. It features a handle (lever or knob) that can be locked or unlocked using a key.

How it Works: A key is used to lock or unlock the exterior handle. When locked, the handle is rigid and won’t open the door. When unlocked, it functions like a passage trim.

Use This When: You need to secure a perimeter door while allowing authorized personnel to enter with a key. This is perfect for employee entrances, rear exits, and main entrances after hours.

Security Rating: High. This is the standard for securing an exit door.

Night Latch Trim

This function is often found on older or simpler exit devices. The key doesn’t lock or unlock the handle; instead, it directly retracts the latch to open the door.

How it Works: The outside handle is always rigid (or non-existent). To enter, you must insert the key and turn it every single time. The latch re-engages as soon as the door closes.

Use This When: You need “key-in” access only, ensuring the door is always locked from the outside the moment it closes.

Security Rating: High. It prevents the door from being accidentally left unlocked.

Building: Choosing the Right Trim for Your Building

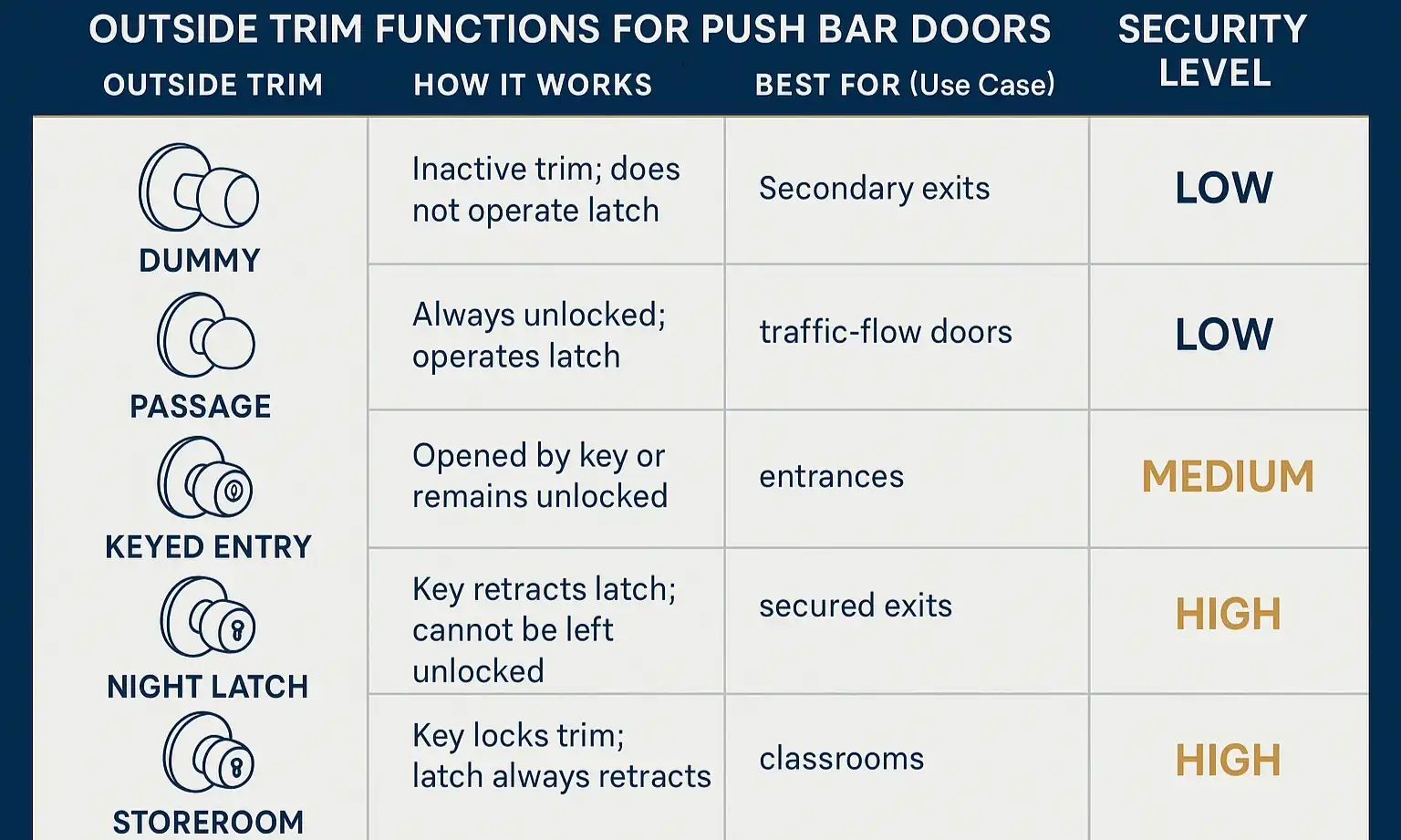

At a glance: Compare outside trim types by function, use cases, and security levels to choose the best option for your push bar door.

With the basics covered, you can now dive into more specific functions designed for different environments like schools and businesses. This table helps break down the options.

Advanced Functions: Classroom vs. Storeroom

Beyond the basics, two “keyed entry” variations offer specialized logic that is critical in certain settings:

Classroom Function: The outside lever can be locked or unlocked only by a key. Critically, the inside push bar is always active for emergency exit, regardless of the outside handle’s status. This allows a teacher to secure a classroom from the hallway while students can always exit.
Storeroom Function: The outside lever is always locked. You must use a key every single time to enter from the outside, just like a Night Latch function. It’s ideal for supply closets or IT rooms where access should always be controlled and the door must re-lock automatically.

Going High-Tech: Electrified Trim and Access Control

Modern security often goes beyond traditional keys. Electrified trim integrates directly with access control systems, allowing entry via keypads, card readers, or even biometric scanners. This is where you encounter two critically important but often confused terms: Fail Safe and Fail Secure.

The difference between them boils down to one question: What happens to the lock when the power goes out?

Fail Safe: The lock disengages (unlocks) when power is lost. This is used for life-safety situations, like on doors in a fire exit path, ensuring people can still get through even during a power failure.
Fail Secure: The lock engages (locks) when power is lost. This is used for security-sensitive areas, like a data center or server room, ensuring the door remains locked and secure during a power outage.

Understanding this distinction is vital for both security and compliance. When considering upgrading from keyed vs. keyless entry, it’s important to know how the system will behave if a biometric system downtime or power outage occurs.

Mastery: Compatibility and Installation Essentials

Choosing the right trim function is only half the battle. You also need to ensure it’s compatible with your existing hardware.

Matching Trim to Your Exit Device

Not all trims fit all push bars. The type of exit device you have—be it a Rim, Mortise, or Vertical Rod model—dictates which trims are compatible. While the terms can sound technical, distinguishing between panic bars vs. crash bars and their mechanisms is crucial for ordering the correct parts. Always check the manufacturer’s specifications to ensure the trim and the exit device are designed to work together.

Getting the “Handing” Right

Doors are “handed,” meaning they are designated as left-hand or right-hand opening. Most lever-style trims are also handed. Ordering a “left-hand” lever for a “right-hand” door will result in an upside-down handle. A thorough lock handing explained guide can save you significant time and money by ensuring you get it right the first time.

Action: Troubleshooting Common Outside Trim Problems

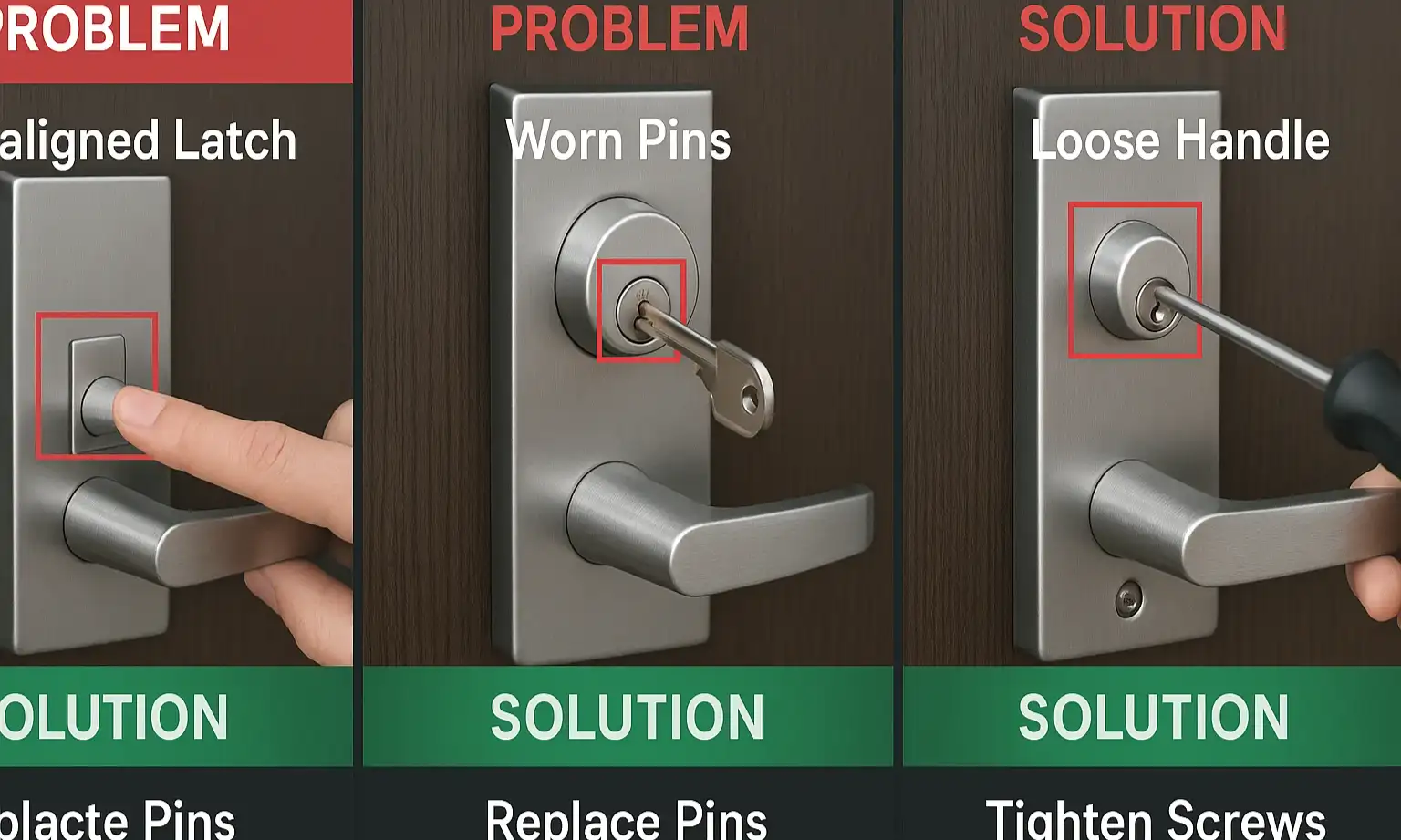

Simple visual guides to diagnose and fix common outside trim issues, preventing delays and maintaining security.

Even with the perfect trim, issues can arise. If your keyed entry isn’t working, it creates a major security and operational problem.

Why Won’t My Push Bar Door Lock from the Outside?

This is one of the most common service calls. Before you panic, here are a few potential culprits:

Misaligned Latch: The most frequent issue. If the door has sagged or the frame has shifted, the latch bolt from the push bar may not align properly with the strike plate on the frame, preventing it from locking.
Worn or Damaged Key Cylinder: The internal pins of the lock cylinder can wear out over time, causing your key to stick or fail to turn.
Incorrect Function: Someone may have inadvertently set the trim to a “passage” or unlocked state. This is especially common with Classroom function levers.
Internal Mechanism Failure: The internal components connecting the trim to the exit device can break or become disconnected, rendering the key or handle useless. For a deeper look at the push bar door lock mechanism, it’s helpful to understand how these parts interact.

Frequently Asked Questions (FAQ)

What is the push bar on a door called?

It’s commonly called a panic bar, crash bar, or, more technically, an exit device. These terms are often used interchangeably.

What is the purpose of a push bar door?

Its primary purpose is to allow for fast, easy, and intuitive egress for a large number of people during an emergency, such as a fire, without needing a key or any special knowledge to operate it.

Can you add a lock to any push bar door?

Yes, but the “lock” is the outside trim. You can add a keyed or electronic access trim to nearly any push bar door to provide security from the exterior. You should never add a separate deadbolt or hasp that could impede the function of the push bar from the inside, as this violates fire and safety codes.

How do you keep a panic bar door open?

Many exit devices have a feature called “dogging,” where a small key or hex tool can be used to hold the latch in a retracted position, allowing the door to be used as a simple push/pull door during high-traffic periods. Some keyed entry trims also offer functions that can hold the door unlocked.

Your Next Step to Secure, Controlled Entry

Outside trim is far more than just a handle—it’s the brain of your exit door’s security. By moving from a basic Dummy Trim to a sophisticated Storeroom or electrified function, you can tailor your door’s access to perfectly match your operational and security needs.

Choosing the right trim involves understanding your daily traffic flow, security requirements, and compatibility with your existing hardware. If you’re unsure which function is right for your building or are troubleshooting a faulty lock, professional guidance is essential. A qualified locksmith can not only ensure you select the correct hardware but also guarantee it’s installed to meet all safety and fire code regulations.
