Understanding Bitting, Pins, and the Science of Security

Published: Jan 13, 2026 | Updated: Mar 24, 2026

Ever had a brand-new key copy that just… doesn’t work? It sticks, it grinds, or it flat-out refuses to turn. It’s a common frustration, but the reason why is a fascinating story of microscopic precision. Your key isn’t just a piece of metal; it’s a code. And to understand why that code sometimes fails, we need to look inside the lock itself.

What seems like a simple turn of the wrist is actually a tiny, mechanical ballet. Getting this right is the difference between a secure home and a daily frustration. Let’s pull back the curtain on the science that keeps your door locked.

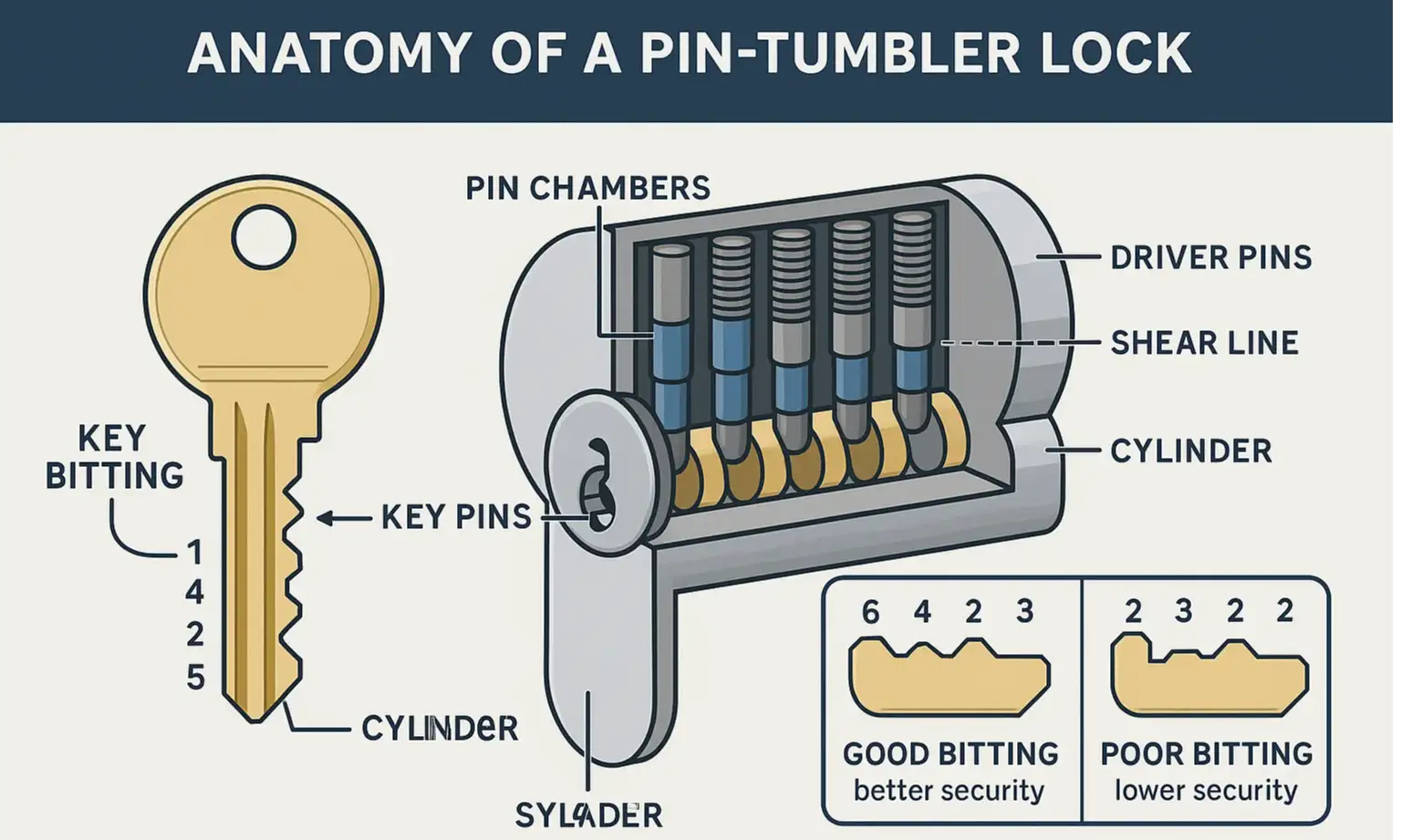

Foundation: Meet the Components of Your Lock

At the heart of nearly every residential lock is a brilliant, centuries-old invention: the pin-tumbler mechanism. Think of it as a small puzzle that only your specific key can solve. It has four critical parts.

The Key & Its Bitting: The Secret Code

Look at the edge of your key. The unique series of peaks and valleys is called the bitting. These aren’t random; each cut is precisely measured to a specific depth. This bitting is the secret code that the lock is designed to read.

The Pin Chambers: The Pathways for the Code

Inside the lock’s cylinder (the part that turns), there are several vertical shafts called pin chambers. Each chamber is a pathway that holds a set of pins, and each one corresponds to a cut on your key.

The Pins: The Tumblers That Read the Code

Inside each pin chamber are two small pins that sit on top of each other:

Key Pins (Bottom): These pins are different lengths and rest directly on the key. Their varied heights are what make your lock unique.
Driver Pins (Top): These pins are typically all the same length and are pushed down by small springs.

The Cylinder & The Shear Line: The Gateway

The magic happens at the shear line. This is the tiny, invisible gap between the inner cylinder (the plug that turns with your key) and the outer housing. If even one pin is blocking this line, the cylinder cannot rotate, and the lock will not open.

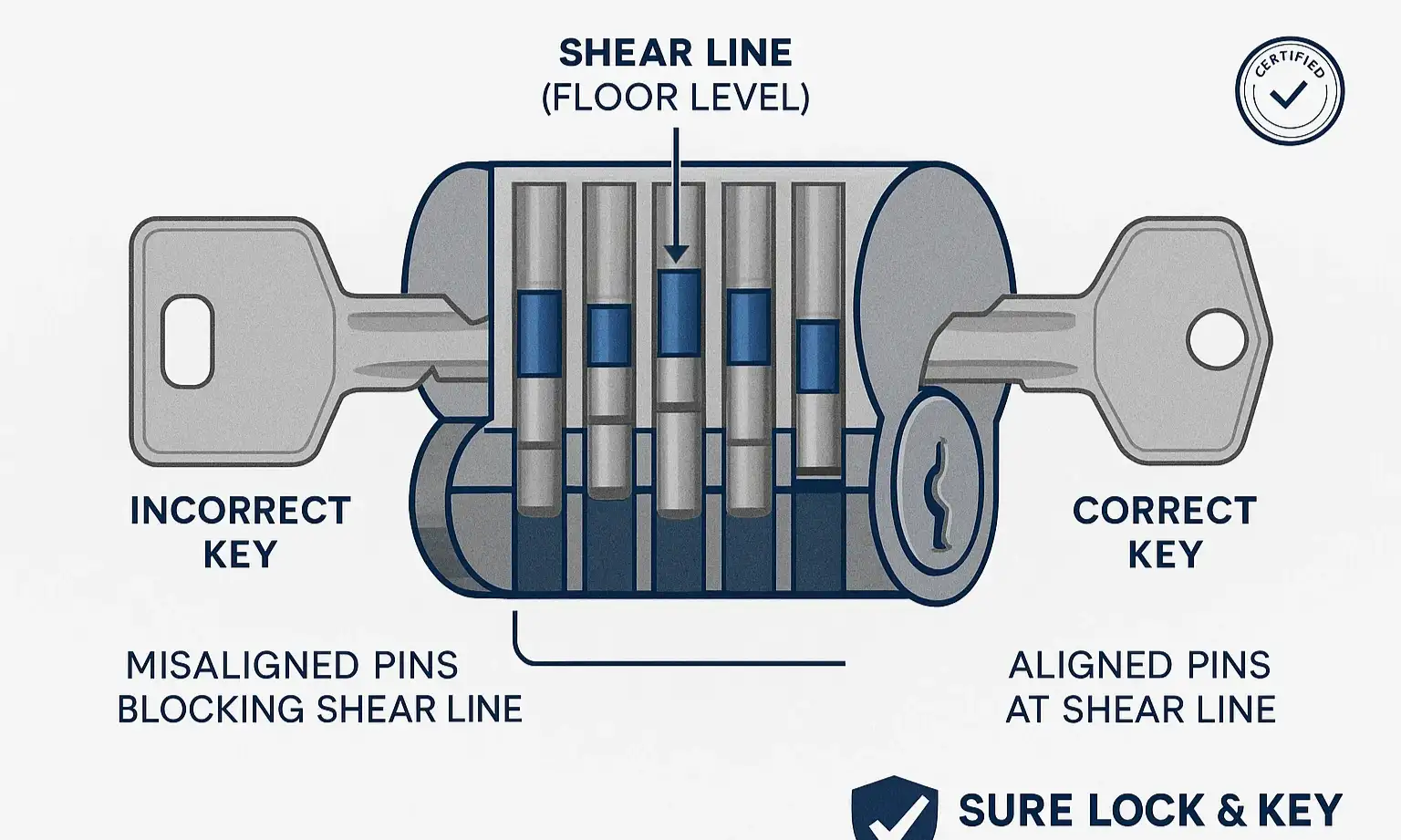

The Magic of the Shear Line

This is the single most important concept in understanding your lock. Let’s use an analogy.

Imagine each pin chamber is an elevator shaft. Inside, there are two “passengers”—a top driver pin and a bottom key pin. For the building’s core to rotate (unlock), every single elevator car must stop perfectly so that the gap between its two passengers aligns with the floor level.

That “floor level” is the shear line.

When you insert the correct key, its bitting lifts each pair of pins to the exact right height. The gap between every key pin and driver pin aligns perfectly with the shear line. With the path now clear, you can turn the key, rotate the cylinder, and open the door.

If you insert the wrong key, some cuts will be too high and others too low. The pins will block the shear line, jamming the mechanism. The puzzle isn’t solved, and the gateway remains locked.

Mastery: Applying What You've Learned

Understanding the shear line helps demystify common lock-and-key issues and empowers you to make smarter decisions about your home’s security.

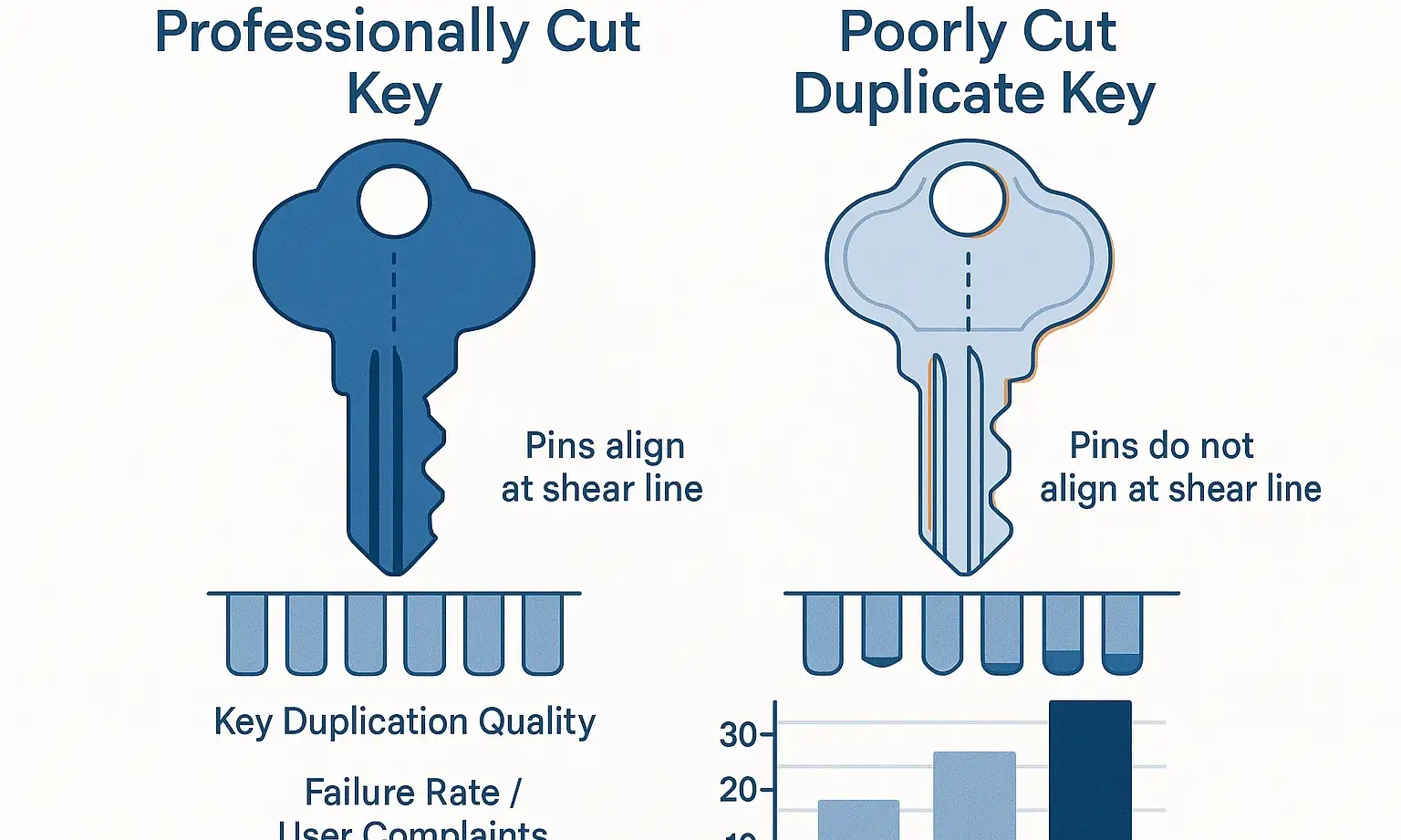

Why a Bad Key Copy Fails: A Story of a Thousandths of an Inch

Now you know why that cheap key copy didn’t work. Key duplication machines at big-box stores can become worn or miscalibrated over time. When they cut a copy, the bitting might be off by just a fraction of a millimeter—a distance invisible to the naked eye.

But your lock can feel it. That tiny imperfection means a pin is pushed just a little too high or not high enough, blocking the shear line and causing the key to stick or fail completely. Professional key duplication uses precision-calibrated equipment to ensure every cut is perfect, so your key works as smoothly as the original.

Lock Rekeying vs. Replacing: What’s the Real Difference?

Armed with your new knowledge, the difference becomes clear.

Rekeying: A locksmith removes the cylinder and replaces only the small key pins inside. They fit a new set of pins that match the bitting of a brand-new key. It’s like changing the password to your account without having to buy a new computer. It’s a fast, cost-effective way to secure your home after moving in or losing a key.
Replacing: This means removing the entire lock—knob, deadbolt, and all—and installing completely new hardware. You’d do this if your lock is old, broken, or you want to upgrade to a more secure model.

Both are great options, and understanding the mechanics helps you choose the right service. A professional can help you decide whether you need a simple lock rekeying or a full lock replacement and installation.

How Bitting Affects Your Security

Not all key bitting is created equal. A key with very shallow cuts or cuts that are all similar depths (e.g., a bitting code of 3-3-4-3-4) is considered to have “poor bitting.” It creates fewer variables and is easier for a lock picker to manipulate.

In contrast, a key with extreme differences between adjacent cuts (e.g., a bitting code of 9-2-7-3-8) is much more secure. This varied internal landscape makes it significantly harder for a picking tool to align all the pins at the shear line simultaneously. When you invest in high-security locks, you’re often getting a lock designed to work with more complex and secure bitting profiles.

Action: Making Smarter Home Security Decisions

Your key is your first line of defense. Now that you understand how it works, you can be more proactive about your security.

Inspect New Keys: When you get a new copy, compare it closely to the original. The cuts should look sharp and clean, not rounded or covered in metal burrs.
Don’t Force It: If a key starts sticking, don’t force it. This can damage the internal pins or even break the key off in the lock. It’s a sign that either the key is worn or the lock needs servicing.
Know When to Call a Pro: If you’ve moved, lost a key, have a key that no longer works smoothly, or simply want a security assessment, it’s time to call a licensed locksmith. In an emergency, like an unexpected home lockout, having a trusted 24/7 service available is critical.

Frequently Asked Questions

What exactly is "key bitting"?

Key bitting refers to the specific pattern of cuts—the peaks and valleys—on the blade of a key. Each cut’s depth is precisely measured to correspond with the pins inside a specific lock.

Why is the "shear line" so important?

The shear line is the physical separation between the lock’s inner cylinder (which turns) and its outer housing (which is stationary). For the lock to open, all the pins must be perfectly aligned along this line, creating a clear path for the cylinder to rotate.

Is a "Do Not Duplicate" key actually more secure?

Not really. The stamp is more of a request to the key cutter than a technical security feature. A determined person can still find a way to copy it. True key control comes from using patented keyways, where key blanks are restricted and can only be obtained through a licensed dealer with proper authorization.

Can a key just stop working over time?

Yes. Over years of use, the sharp edges of a key’s bitting can wear down. At the same time, the pins inside the lock also wear. Eventually, this combined wear can become significant enough that the pins no longer align properly at the shear line, causing the key to fail.

Is a lock with more pins always better?

Generally, yes. A standard residential lock has 5 or 6 pins. Each additional pin exponentially increases the number of possible key combinations, making the lock statistically harder to pick or “bump.” More pins mean a more complex puzzle to solve.

Your Key to Confidence and Security

Your house key is a small piece of brilliant engineering you use every day. Understanding the delicate relationship between its bitting, the lock’s pins, and the critical shear line transforms it from a simple object into the elegant security tool it is.

This knowledge is the first step to making smarter choices for your home. It helps you understand why quality matters, when a simple fix is needed, and when it’s time for an upgrade. Whether you’re considering a new set of keys or a complete security overhaul, having the right knowledge—and the right professional partner—makes all the difference.
