Troubleshooting Challenges During Floor Safe Installation
Published: Jan 28, 2026
You’ve done the research. You’ve picked the perfect, discreet spot for your floor safe. You have the tools, the concrete mix, and a free weekend. The plan is flawless. You start to cut into the concrete, and then… a jarring halt. The scream of your saw grinds to a metallic crunch.
You haven't just hit concrete; you've hit a problem.
This is the moment where most online guides fall silent. They show you the perfect installation—a clean cut, an easy excavation, a smooth pour. But in the real world, concrete slabs are full of surprises: rebar, plumbing, electrical conduits, and uneven surfaces.
Think of this not as a setback, but as a crossroads. What you do next determines whether your installation is secure and professional or a costly mistake. We're here to be your guide at that crossroads, helping you navigate the unexpected challenges that can turn a straightforward project into a major headache.

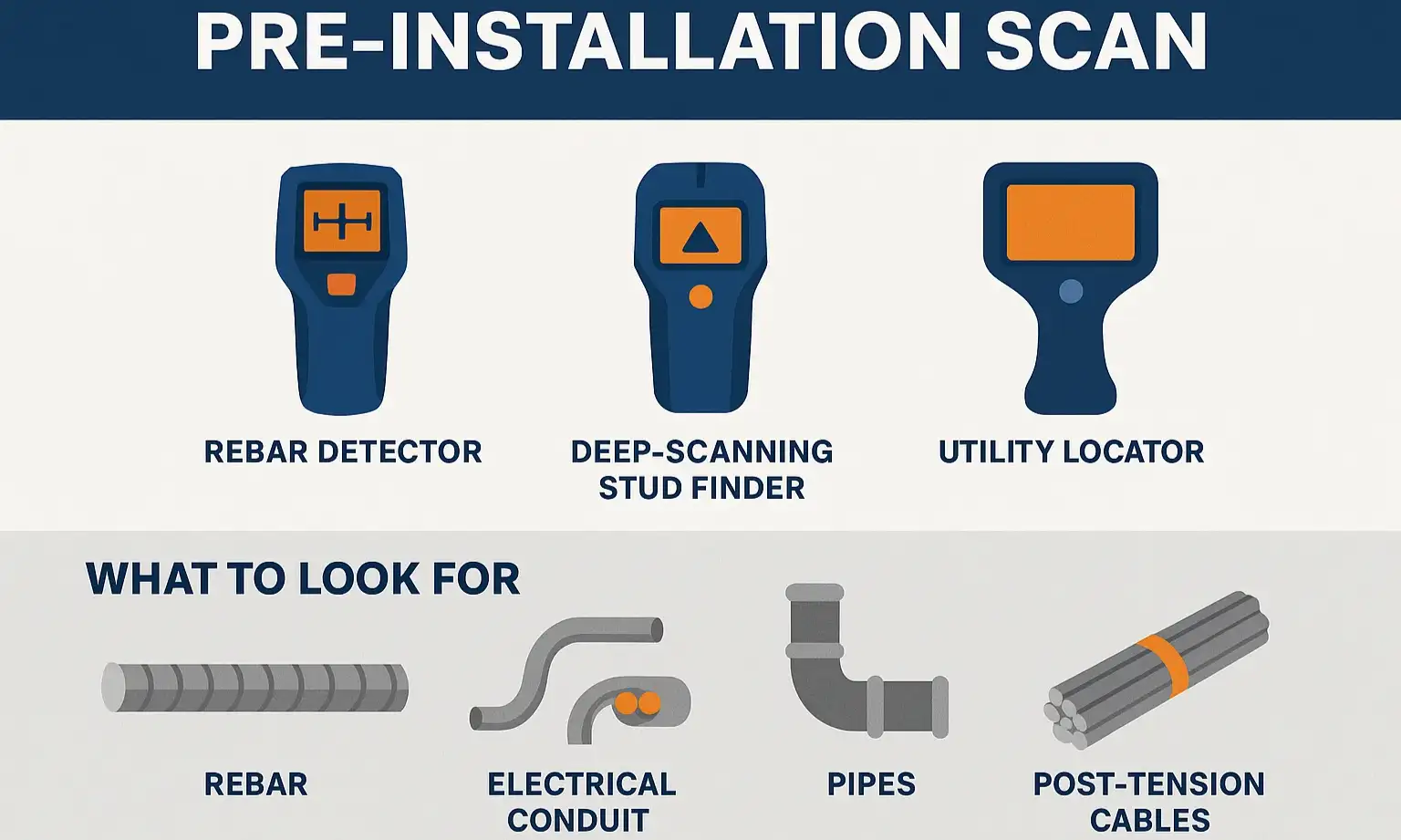

Foundation: The 5-Minute Pre-Installation Scan That Saves 5 Hours of Headache
The single most critical step in a floor safe installation happens before you ever make the first cut. It’s the "aha moment" that separates amateurs from pros: scanning your subfloor. Failing to identify what’s inside your concrete is like navigating a minefield blindfolded.
Most installation issues can be completely avoided with a thorough scan. Here’s what you’re looking for and how to find it:
- Reinforcing Bar (Rebar): A steel mesh that gives concrete tensile strength. Hitting it is the most common roadblock.
- Post-Tension Cables: High-strength steel cables that are tensioned after the concrete is poured. Cutting one of these can be catastrophic, causing structural damage to your home and severe personal injury.
- Pipes & Conduits: Electrical wiring, plumbing lines, or radiant heating tubes are often embedded within the slab.
To find these hidden obstacles, you need the right tools. A simple stud finder won’t cut it. You’ll want a dedicated concrete scanner or a multi-scanner with a deep-scan mode for concrete. These devices can help you map out a safe zone before you commit to a location.
The Ideal Installation (When Everything Goes Right)
Before we dive into troubleshooting, let's quickly recap the perfect-path scenario. This is the foundation all other steps are built on:
- Scan & Mark: You’ve scanned the area and confirmed it’s clear of obstructions.
- Cut & Excavate: You cut the perimeter with a concrete saw and break out the interior with a jackhammer or sledgehammer.
- Position & Level: You place the safe in the hole, ensuring it’s perfectly level and flush with the final floor height.
- Pour Concrete: You mix and pour concrete around the safe, eliminating air pockets.
- Cure & Conceal: You allow the concrete to cure fully before concealing the safe.
If only it were always that simple. Now, let's tackle what to do when things don't go according to plan.
Mastery: Your Troubleshooting Section (When Things Go Wrong)
This is where your project can feel like it’s grinding to a halt. Don’t panic. Here’s an "if-then" framework for solving the most common floor safe installation problems.

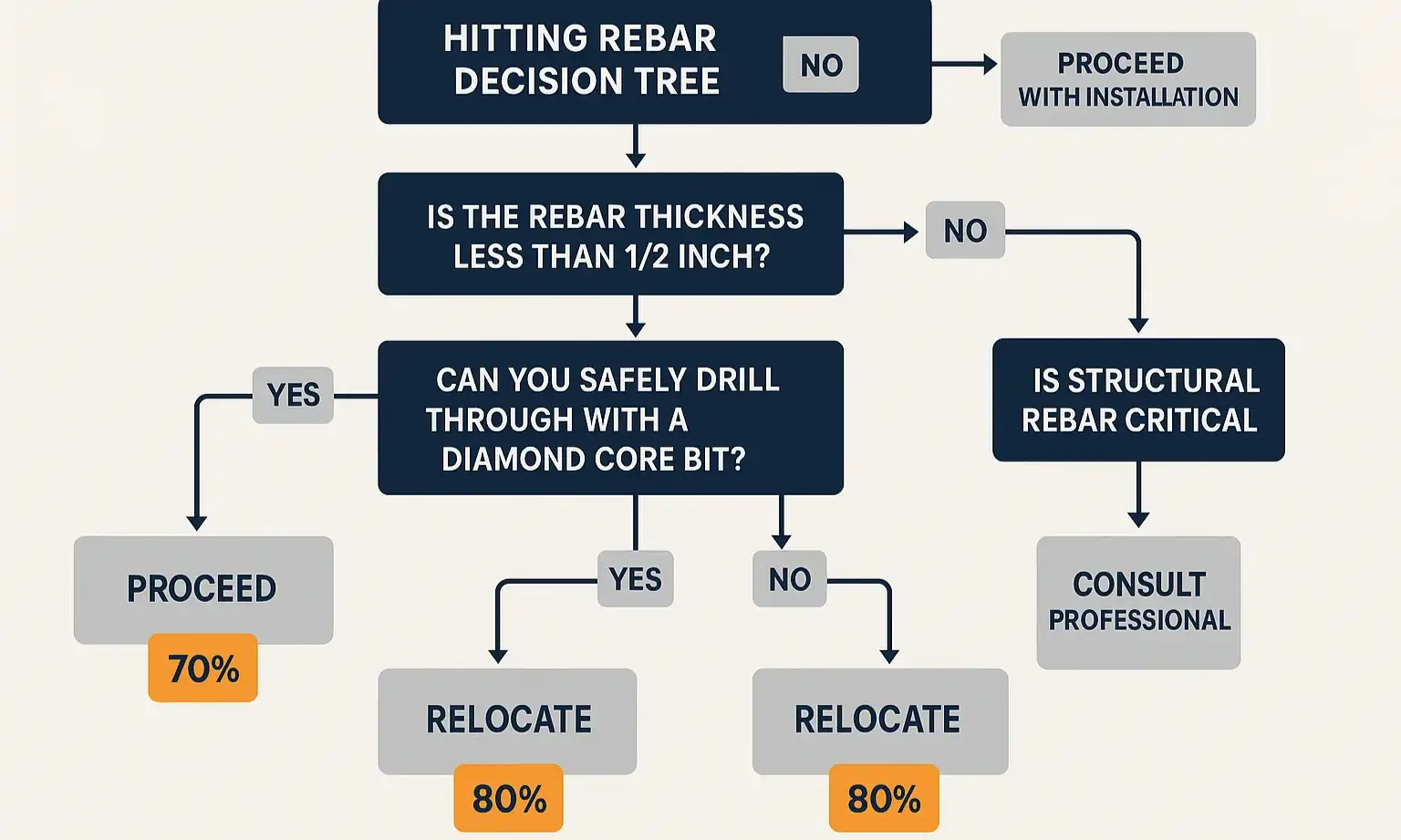

Obstruction 1: Hitting Rebar
You’re drilling or cutting, and you hit something that just won’t give. It’s almost certainly rebar.
Your First Step: Stop immediately and assess the situation.
Is it a single, thin bar? If your pre-installation scan showed only isolated rebar (less than 1/2 inch thick), you may be able to cut through it. You’ll need a diamond blade for your angle grinder or a rotary hammer with a carbide-tipped bit designed for cutting rebar.
Is it a thick structural piece or multiple bars? If you hit a large piece of rebar or a dense grid of it, you must stop. Cutting through significant structural reinforcement can weaken the slab.
Your "If-Then" Decision Guide:
IF it's a single, thin bar on the edge of your cutout, THEN you can likely cut it without compromising structural integrity.
IF you hit multiple bars or a thick piece in the middle of your planned location, THEN your best and safest option is to relocate the safe. Patch your initial cut and start over in a clear spot identified by your scanner. It’s a frustrating step back, but far better than creating a structural hazard.
Obstruction 2: Hitting Utilities (Pipes or Conduits)
This is a more serious problem than hitting rebar. If you suspect you've hit a utility line—whether it's a water pipe, drain line, or electrical conduit—the rule is simple: STOP ALL WORK IMMEDIATELY.
Real-world examples from installation forums are filled with horror stories of people hitting radiant floor heating pipes, causing thousands in damage.
Your "If-Then" Action Plan:
- IF you see water, plastic shavings (from PEX tubing), or the metal sheath of a conduit, THEN you must assume the line is active.
- IF it’s electrical, shut off the main breaker to your home before investigating further.
- IF it’s plumbing, shut off the main water valve.
Unfortunately, there is no safe way to continue the installation in that exact spot. You cannot cut or re-route active utility lines without a licensed professional. Your only option is to abandon that location, patch the concrete, and find a new, clear spot. This underscores why the initial scan is so vital.
Problem 3: Uneven Subfloor or Bad Concrete
You’ve successfully excavated the hole, but the bottom is a mess. It’s uneven, crumbly, or sloped. Placing your safe on an unstable base is a recipe for failure; it will be insecure and the door may not function properly.
Your Goal: Create a perfectly level and solid concrete base before you place the safe.
Your "If-Then" Solution:
- IF the bottom is just slightly uneven, THEN you can mix a small, stiff batch of concrete and pour a thin leveling pad. Let this pad cure before placing the safe on top of it.
- IF the subfloor is significantly sloped or crumbly, THEN you need to build a form. Use small wooden stakes and boards to create a level frame at the bottom of the hole. Pour concrete into this form to create a solid, level foundation for the safe to rest on. A self-leveling compound can also work wonders here.
A level safe isn't just for looks; it ensures the locking mechanism operates without binding and provides maximum security against pry attacks.
Problem 4: Water Seepage and Moisture Issues
Basements and ground-floor slabs can be prone to moisture. Installing a metal safe in a damp environment without protection will lead to rust and potential damage to its contents.
Your Goal: Isolate the safe from ground moisture
Your "If-Then" Fix:
- IF you notice dampness after excavating, THEN line the hole with a heavy-duty vapor barrier (thick plastic sheeting) before placing the safe. This creates a waterproof membrane.
- IF you live in a high-moisture area, THEN consider using a waterproof concrete mix or adding a waterproofing admixture to your standard mix. This provides an extra layer of protection for your investment.
Need more information?
Get a free quote

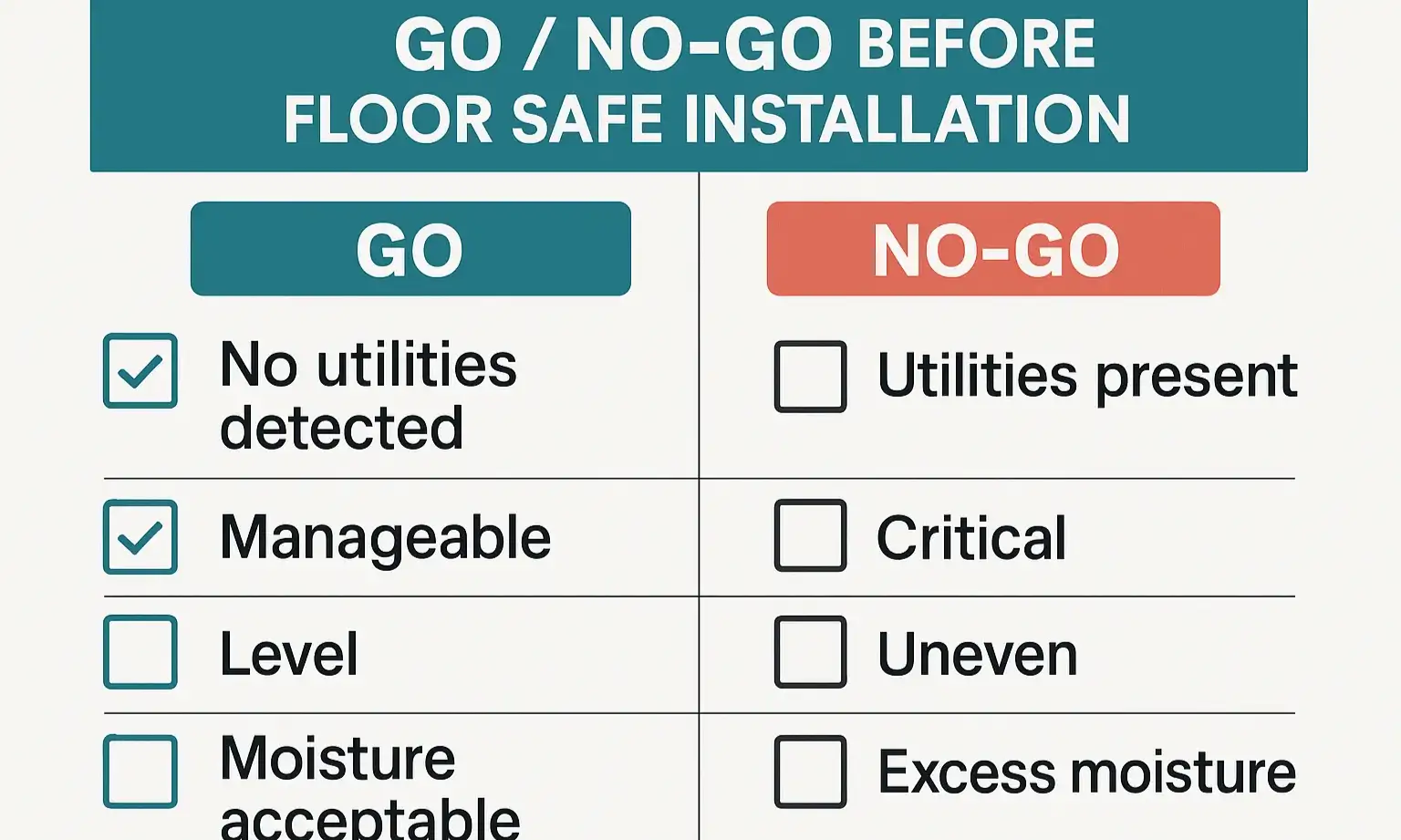

Action: Your Installation Go/No-Go Checklist
Before you mix that first bag of concrete, run through this final checklist. It’s your last chance to catch a problem before it’s literally set in stone.
- Location Scanned: Is the area completely clear of rebar, conduits, and post-tension cables? (GO / NO-GO)
- Excavation Depth: Is the hole deep enough for the safe plus a solid concrete base and top layer? (GO / NO-GO)
- Base Stability: Is the bottom of the hole solid and level? (GO / NO-GO)
- Moisture Check: Is the hole dry, or do you have a vapor barrier ready? (GO / NO-GO)
If you get a "NO-GO" on any of these, pause and fix the issue. A little extra time now saves a world of regret later.
When a Challenge Requires a Professional
DIY installation can be incredibly rewarding, but some situations are best left to the experts. If you’ve discovered a post-tension slab, a dense grid of rebar, or active utility lines, it’s time to call for help.
A professional has the advanced tools and experience to safely handle these complex scenarios. At Sure Lock & Key, our technicians are equipped with industrial-grade scanners and cutting tools, and they understand the structural engineering behind concrete slabs. Our safe and vault services are designed to handle these exact challenges, ensuring your installation is secure, compliant, and professionally executed without damaging your property.
Frequently Asked Questions
Can I install a floor safe in a wooden floor?
While possible, it’s not ideal. An in-floor safe is designed for concrete, which provides superior fire protection and security. Installing one in a wood-joist floor requires significant structural reinforcement to support the weight and secure it against theft. It's often better to choose a high-quality home safe designed to be bolted to the floor joists.
What’s the difference between bolting a safe down and installing an in-floor safe?
Bolting a safe down involves drilling anchor holes through the bottom of a standalone safe into the concrete slab or wooden joists. Installing an in-floor safe involves cutting a hole in the concrete slab and encasing the safe within it. The latter offers far greater concealment and higher security against removal.
How do I know if I have a post-tension slab?
Look for stamps on the concrete floor in your garage or on building plans that say "POST-TENSIONED SLAB - DO NOT DRILL, CUT, OR CORE." If you have any doubt, assume that you do and consult a structural engineer or a professional installer. The risk of error is too high.
What if my concrete pour is incomplete or has air pockets?
This is a critical error that weakens security. During the pour, you must use a stick or trowel to vigorously agitate the wet concrete, forcing it into every corner and eliminating air bubbles. A solid, void-free encasement is what gives the safe its strength.
Installing a floor safe is a powerful step toward securing your most valuable possessions. By preparing for the unexpected, you can ensure your project is a success. If you run into a roadblock you can’t solve, remember that professional help is always available. A secure installation is a smart investment in your peace of mind.
