Fixing Automatic Sliding Patio Door Locks That Won’t Latch Securely

Published: Mar 17, 2026

You hear the familiar whir as your automatic patio door glides shut, but instead of the satisfying click of the lock engaging, you get… silence. Or worse, a beep of protest. You try again. Same result. A quick search online floods you with advice about bent latches and worn-out manual locks, but that’s not your problem. Your door is powered, it’s supposed to be smart, and right now, it’s just not secure.

If this sounds familiar, you’ve stumbled upon a common frustration with a surprisingly simple explanation: automatic sliding doors are not just doors. They are systems. And when they fail to lock, it’s rarely about the physical latch itself. The problem usually lies with the components that make it “automatic”—the power, the sensors, or the motor.

Welcome to the definitive guide for diagnosing why your automatic sliding door won’t lock. Forget everything you’ve read about manual doors; we’re going to walk through the unique challenges of your system, step-by-step.

1. Foundation: Is It Power, Sensors, or the Lock?

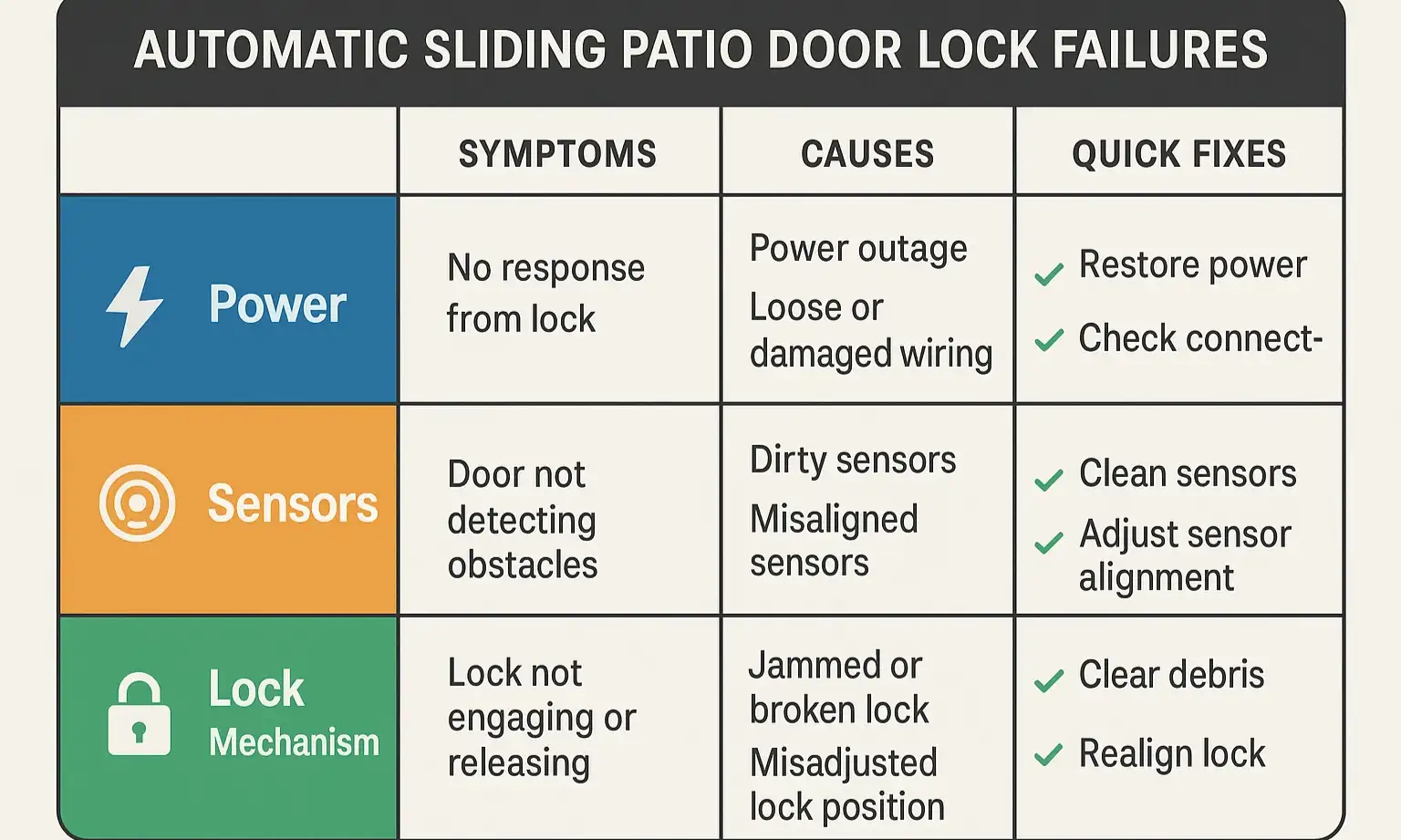

Matrix of sliding door lock issues—obstruction, sensor/power, and mechanical—with simple fixes.

Before you can fix the problem, you need to understand where it’s coming from. Unlike a simple manual lock, an automatic system relies on a sequence of events: the door must close fully, sensors must confirm it’s safe to lock, and an electric motor (actuator) must engage the bolt. A failure at any point in this chain prevents it from latching.

Most issues fall into three categories:

Obstruction & Alignment: Something is physically preventing the door from closing perfectly or the lock from engaging.
Sensor & Power Issues: The door’s “eyes” or “brain” are confused, dirty, or unpowered, preventing them from giving the “all-clear” signal to lock.
Mechanical & Motor Failure: A component like the lock actuator or drive motor has malfunctioned.

This chart breaks down the most common culprits.

2. Before You Panic: Understanding Your Door's "Language"

Many automatic systems use beeps or flashing lights to communicate errors. While codes vary by manufacturer, here are some general interpretations:

A Single Beep or Green Light: Usually indicates normal operation. The door is closing and should lock.
Continuous Beeping or a Red Flashing Light: This is an error code. It almost always means a safety sensor is blocked or misaligned. The door will refuse to close or lock as a safety precaution.
A Series of Short Beeps: This can signal a more specific issue, like a motor struggling to engage or a power supply problem. Check your user manual to decipher the code.

The key takeaway is that the door is trying to tell you what’s wrong. The most common message? “I can’t see clearly!” which brings us to the first and most important fixes you can try yourself.

3. The 5-Minute Fixes to Try First (The Diagnostic Flowchart)

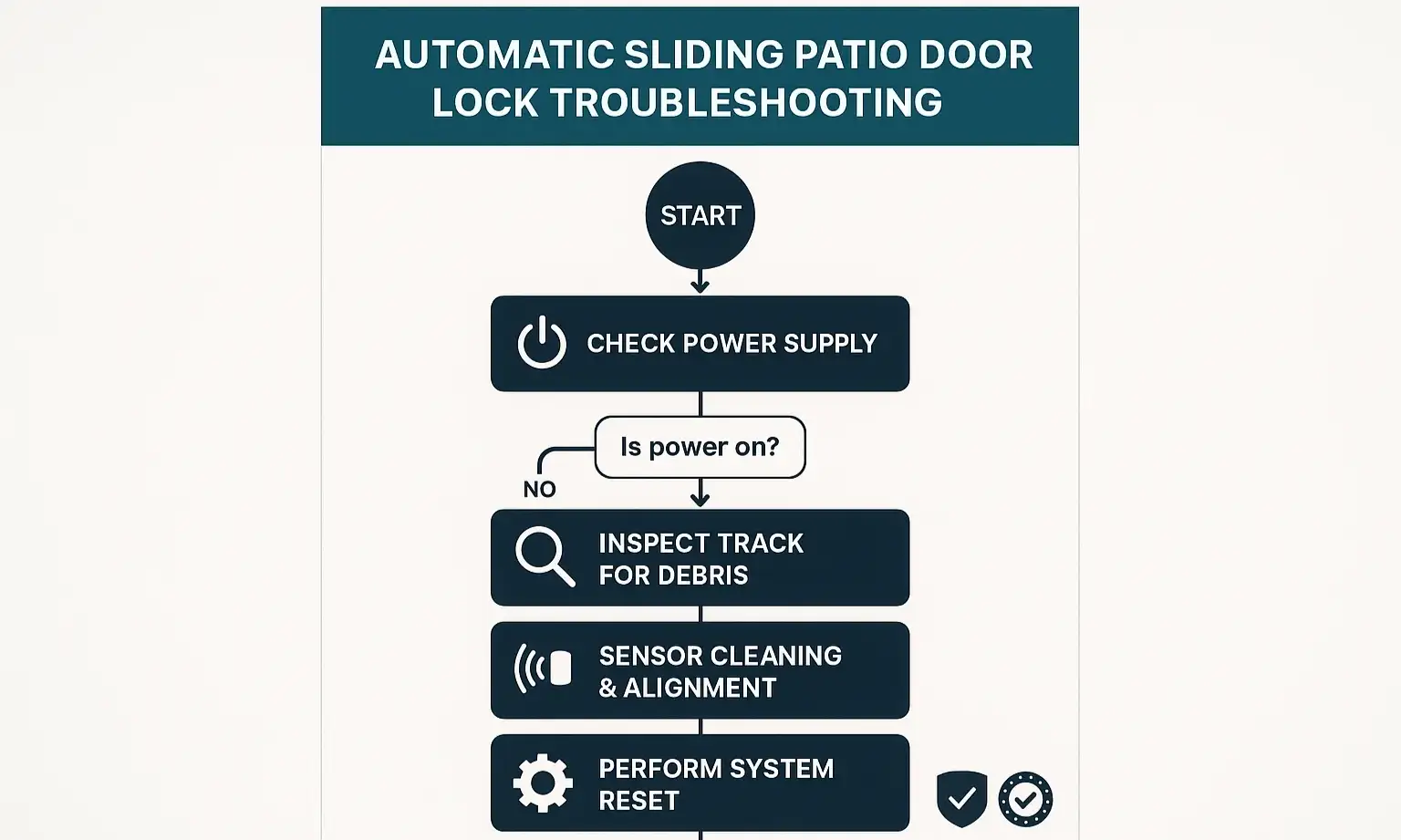

Flowchart guiding sliding door lock troubleshooting: check power, clean track and sensors, and reset system.

Don’t reach for a toolbox just yet. The vast majority of automatic lock failures can be resolved with basic cleaning and a system reset. Follow this diagnostic flowchart to work through the highest-probability fixes in a logical order.

Step 1: Check for Simple Obstructions

Your high-tech door can be defeated by a surprisingly low-tech villain: dirt.

Clean the Track: Use a vacuum with a crevice tool to clear out any dirt, pebbles, pet hair, or leaves from the bottom track. Even a small piece of debris can stop the door from closing the final millimeter needed for the lock to align.
Wipe Down the Door Edges: Check the vertical edges of the door and the frame where they meet. Gunk or buildup can interfere with the connection.

Step 2: Clean the Safety Sensors

The safety sensors (often small black lenses near the bottom of the frame) are the door’s eyes. If they are dirty, they can’t confirm that the path is clear.

Gently wipe the lenses with a soft, dry microfiber cloth. Spiderwebs, dust, and grime are common culprits.
Ensure the sensors are aligned and pointing directly at each other. If one has been bumped, it can prevent the door from operating correctly.

Step 3: Perform a System Reset (The “Turn It Off and On Again” Trick)

Just like a computer, your door’s control unit can sometimes get stuck in a confused state. A power cycle forces it to reboot and re-learn its proper operating parameters.

Locate the Power Switch: Most systems have a dedicated power switch on the wall nearby or on the motor housing itself. Turn it off.
Wait 60 Seconds: Don’t rush this. The internal capacitors need time to fully discharge.
Turn It Back On: Power the system back up. The door may move slowly on its first cycle as it recalibrates its opening and closing positions.
Test the Lock: Operate the door and see if the reset has solved the latching issue. This simple step resolves a surprising number of software glitches.

4. Mastery: A Deeper Look at Components

An annotated diagram of an automatic sliding door system, labeling the controller/brain, motor, drive belt, track, and safety sensors.

If the 5-minute fixes didn’t work, the issue may lie with a specific component. Understanding what each part does will help you identify the problem, even if you need a professional to perform the fix. Modern systems in both homes and commercial properties share these core components.

Controller (The Brain): This is the central processing unit that receives signals from sensors and tells the motor and lock what to do. A system reset is the main fix for controller glitches. A faulty controller is rare but requires professional replacement.
Motor & Drive Belt: The motor powers the movement along the belt. If you hear a grinding or straining sound but the door barely moves, the motor could be failing. Warning: Never force the door manually while the power is on, as this can strip the motor gears.
Lock Actuator: This is a small, dedicated motor that shoots the bolt into the frame. If the door closes perfectly but you hear a faint click-click or buzzing sound from the lock area without it engaging, the actuator itself has likely failed.
Power Supply: Ensures the system receives consistent, correct voltage. If the door operates intermittently or the lights flicker, the power supply could be the culprit.

For those considering an upgrade or new installation, exploring a professional smart lock installation & setup can ensure these components are perfectly integrated from day one.

Frequently Asked Questions About Automatic Sliding Door Locks

Can I manually override my automatic sliding door lock?

Yes, most systems have a manual override. First, turn off the power to the door. This disengages the motor’s resistance. You should then be able to slide the door and lock it with a manual key or thumbturn if one is integrated. Consult your owner’s manual for the specific procedure.

How often should I clean the sensors and track?

A good rule of thumb is to check and clean the track and sensors once a month, or more often if you live in a dusty area, have pets, or notice a buildup of leaves and debris. Preventative maintenance is the best way to avoid future issues.

What does a continuous beeping sound mean?

Continuous beeping is almost universally a safety sensor alarm. It means the sensor beam is blocked or the sensors are misaligned. The door will not operate until the issue is resolved. Check for obstructions or try wiping and realigning the sensors.

Is my automatic sliding door lock the same as a smart lock?

Not necessarily. An “automatic” door opens and closes on its own, usually via a motion sensor. A “smart lock” on a door (sliding or otherwise) refers to the locking mechanism itself, which can be controlled remotely via Wi-Fi or Bluetooth with a phone or smart home system. While some high-end automatic doors have integrated smart locks, they are distinct technologies.

5. Action: When to Call a Professional

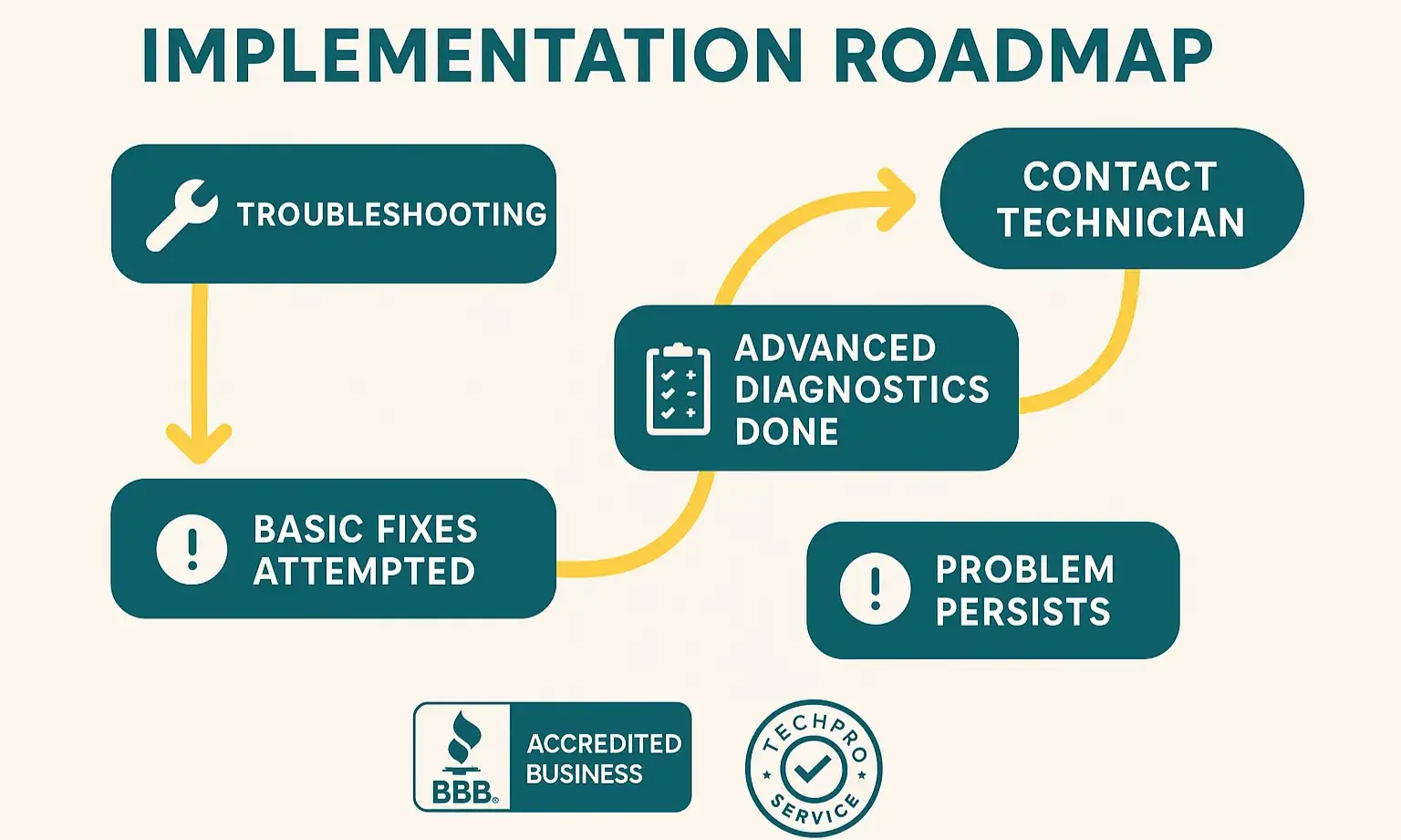

Roadmap from DIY fixes (cleaning, reset) to triggers like persistent issues or grinding noises for calling a locksmith.

You’ve cleaned the tracks, wiped the sensors, and reset the system. If your door still refuses to latch, it’s time to call for professional help. You’ve done the essential groundwork, which means you can have a more productive and cost-effective conversation with a technician.

Attempting to fix motors, actuators, or controllers without experience can lead to more significant damage or safety hazards. Use this roadmap to know when your DIY journey should end and a professional’s should begin.

When you call, be ready to tell the technician:

The make and model of your door system.
The specific symptoms (e.g., “It closes but doesn’t try to lock,” or “It beeps three times and re-opens”).
The troubleshooting steps you’ve already taken.

This information helps a qualified locksmith, like the experts at Sure Lock & Key, diagnose the problem faster. A specialist in patio and sliding door locks will have the right tools and parts to fix complex actuator or motor issues safely and efficiently.
