Understanding Key Fob Rolling Code Technology and Anti-Theft Benefits

Published: Jan 16, 2026

Ever wondered what really happens when you press that button on your car key fob? It feels simple—a click, a flash of lights, the satisfying clunk of a lock. But in that split second, your key and your car are having a secret, high-speed conversation in a language designed to keep thieves out.

This conversation uses a clever technology called "rolling codes." It’s the digital bodyguard that makes your vehicle dramatically more secure than older cars. But as technology evolves, so do the methods thieves use to try and eavesdrop.

Let’s pull back the curtain on this invisible shield. We’ll explore how this technology works, why it’s so effective, and—most importantly—understand the modern tricks thieves use to try and bypass it, so you can stay one step ahead.

From a Fixed Shout to a Secret Whisper: The Evolution of Key Fobs

To appreciate the genius of rolling codes, you first need to understand the simple—and deeply flawed—system they replaced: fixed codes.

Imagine your car's lock only understood one password, like "OPEN SESAME." The first remote key fobs worked exactly like this. Every time you pressed the button, the fob would transmit the exact same digital code. It was convenient, but it had a massive security hole.

A thief with a simple radio scanner, called a "code grabber," could sit in a parking lot, record your code when you locked your car, and simply replay it later to unlock your car and drive away. It was like shouting a password out loud and being surprised when someone else uses it.

Automakers knew this wasn't sustainable. They needed a system where the password changed every single time. They needed a secret whisper instead of a public shout. This is where rolling code technology came in.

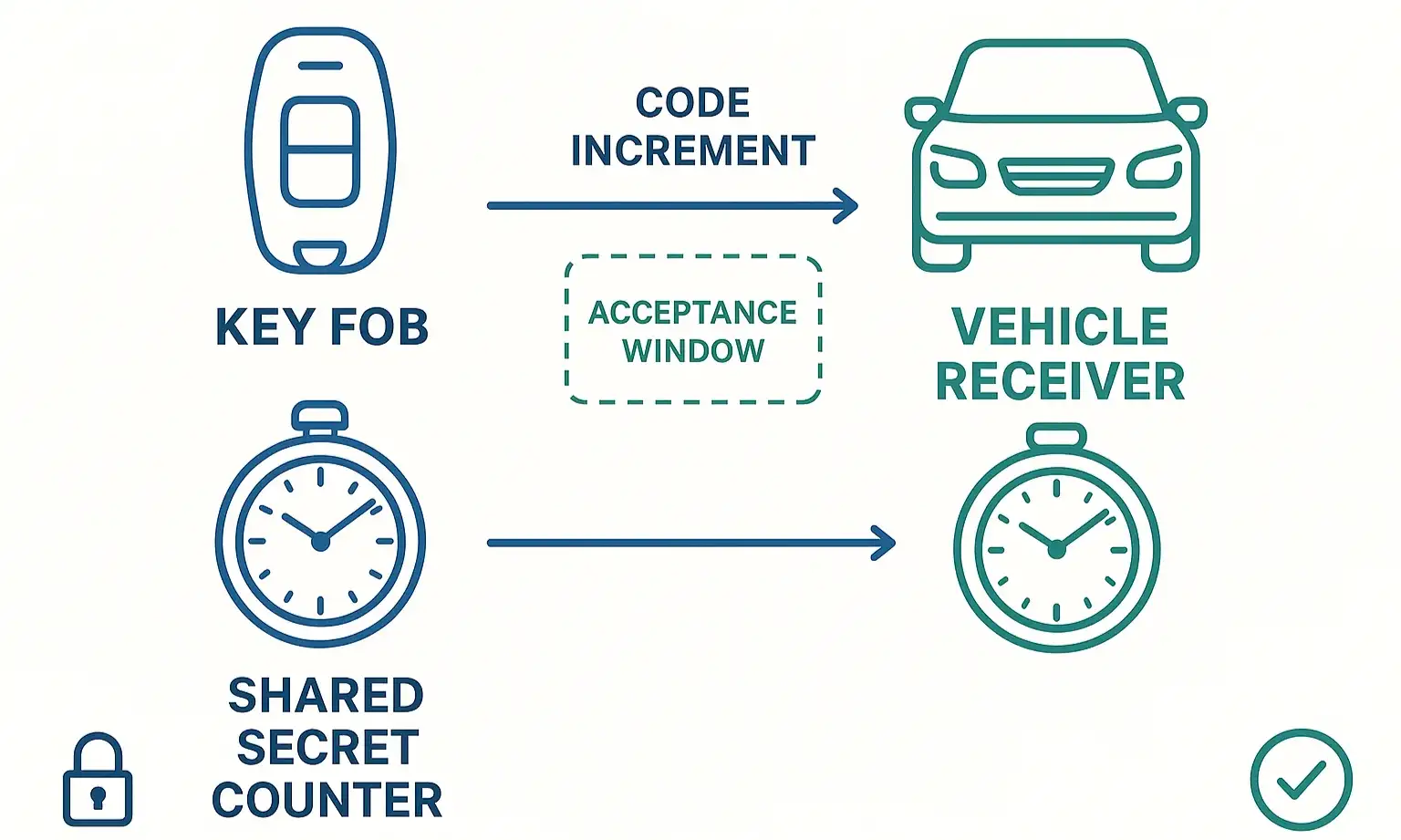

The Digital Dance of Synchronization

A rolling code system ensures that your key fob never sends the same code twice. Each press of the button transmits a brand-new, unpredictable code to the car. A thief who records one code will find it completely useless moments later.

But this raises the big question: If the code is always changing, how does your car know to accept the new one? This is where the magic of synchronization happens.

Think of it like two people who have perfectly synchronized watches and a secret, shared formula. At the factory, your key fob and your car’s receiver are programmed with the same starting point and the same complex formula (technically a Pseudorandom Number Generator, or PRNG).

When you press the button:

The key fob generates the next code in the sequence and sends it.
The car’s receiver runs the same formula to predict what the next code should be.
If the codes match, the door unlocks. Both the fob and the car then "roll" forward to the next code in the sequence, ready for the next press.

"But what happens if I accidentally press the button in my pocket while I'm a block away?"

This is the most common point of confusion, and the system has a brilliant answer: an acceptance window. The car’s receiver doesn’t just listen for one exact code. It listens for a small range of the next several hundred possible codes. If you press the button 20 times in your pocket, the 21st press near your car will still transmit a code that falls within that car's "window" of acceptable codes. Once the car receives it, it re-synchronizes to that new point and the dance continues.

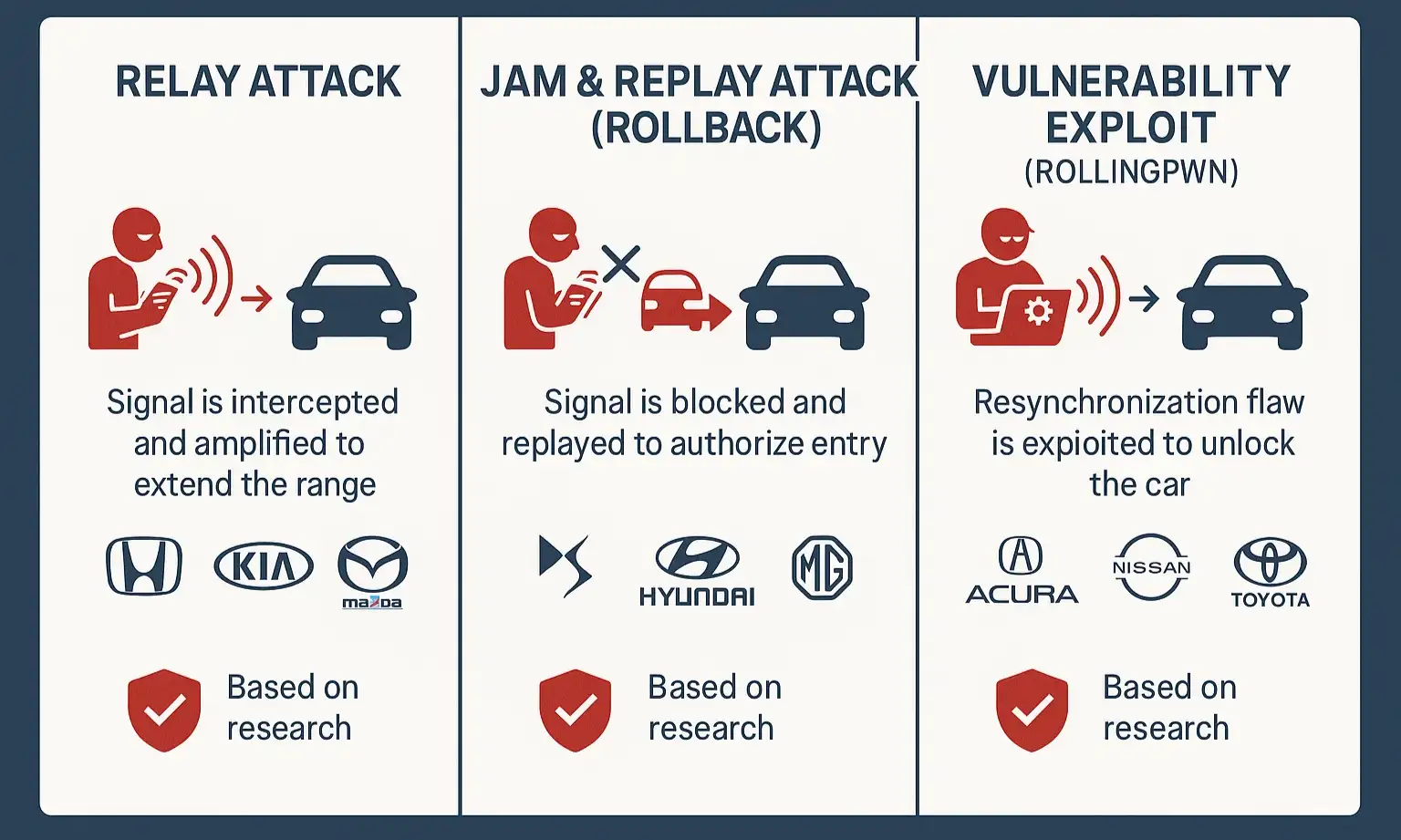

Mastery: How Thieves Break the Code

Rolling code technology is a massive leap forward in security, but no system is impenetrable. Professional thieves have developed sophisticated techniques to exploit how these systems work, rather than trying to crack the code itself. Understanding these threats is key to protecting yourself.

It's crucial to know that not all keyless theft is the same. Here are the three primary attack vectors you should be aware of:

The Relay Attack: Amplifying a Conversation

This is the most common type of keyless theft today. It doesn't break the rolling code; it tricks the system by extending its range.

How it works: One thief stands near your house with a device that amplifies the weak signal your key fob emits constantly. This amplified signal is sent to a second thief standing next to your car with a receiver. Your car is fooled into thinking the key is right next to it, allowing the thief to open the door and start the engine.
The Key Takeaway: The rolling code is still secure. The car and key are having their normal, encrypted conversation—the thieves are just acting as a very long antenna.

The Jam & Replay Attack (e.g., RollBack): Forcing a Rerun

This attack is more devious because it directly intercepts a valid, unused code. A known vulnerability called "RollBack" uses this method.

How it works: A thief uses a device to jam the radio frequency as you walk away from your car and press the lock button. Your car never receives the "lock" signal, so you might not hear the usual beep. The thief’s device, however, has recorded that valid, unused code. Because the car never received it, that code is still active in its "acceptance window." The thief can now replay it to unlock your car.
The Key Takeaway: This attack exploits the fact that the code is valid until the car receives it. Thieves prey on drivers not double-checking that their car actually locked.

The Vulnerability Exploit (e.g., RollingPwn): Hacking the System Itself

This is the most technically advanced attack, where researchers or hackers find a fundamental flaw in a specific manufacturer's rolling code system.

How it works: A prominent example is the "RollingPwn" vulnerability, which was found to affect numerous Honda vehicles (roughly 2012-2022 models). Researchers discovered a flaw in how the system resynchronizes, allowing them to capture a series of consecutive codes and use them to predict a future valid code. This essentially breaks the core security of the system for those specific vehicles.
The Key Takeaway: These flaws are specific to certain makes and models. They require deep technical knowledge to execute but prove that even the underlying formulas can sometimes have bugs.

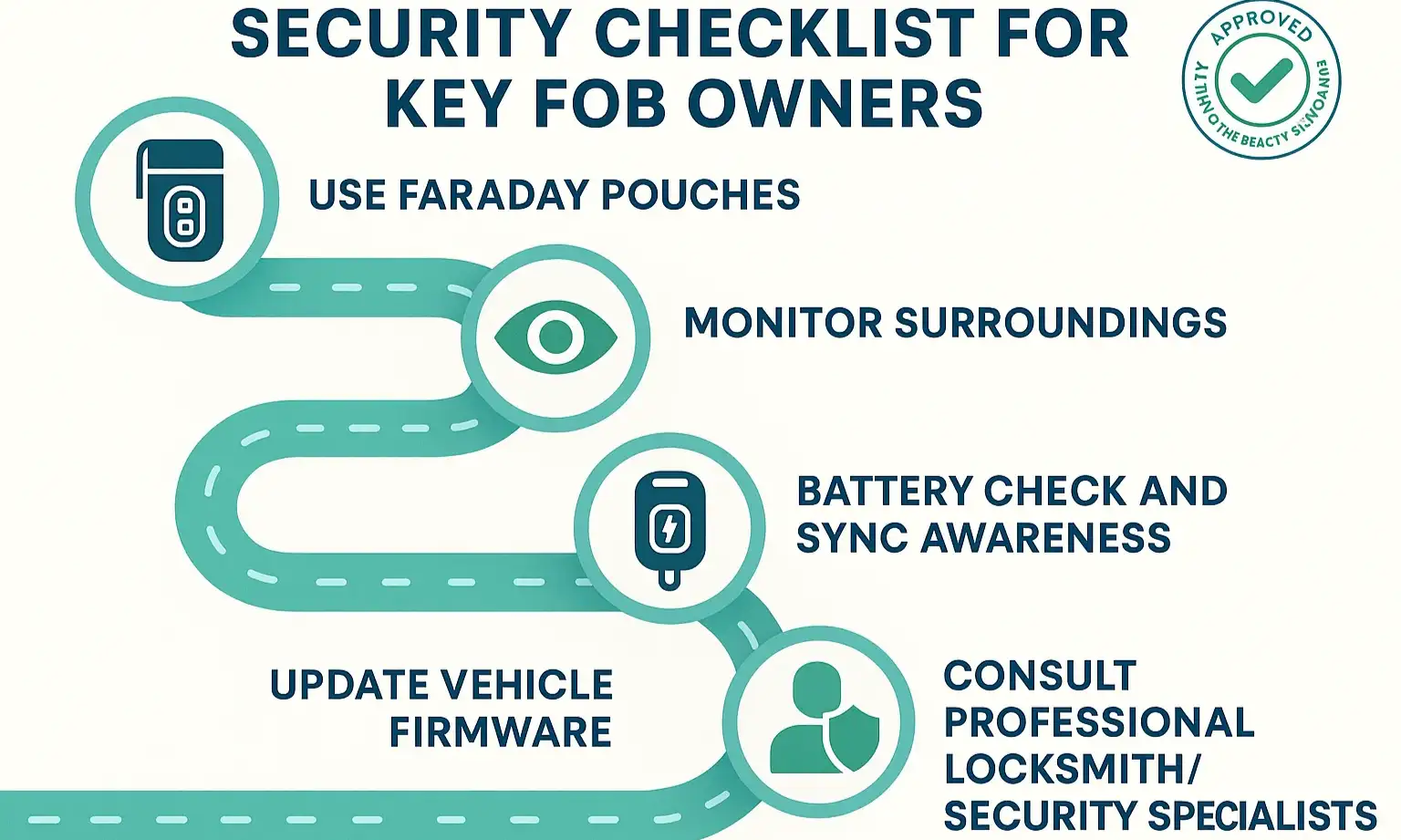

Action: A Practical Security Checklist

Knowledge is power. Now that you understand the threats, you can take simple, effective steps to protect your vehicle.

Use a Faraday Pouch: This is the #1 defense against relay attacks. When you're at home, store your key fobs in a signal-blocking pouch or box. This makes your key invisible to amplifiers.
Listen for the Lock: Always listen for the audible chirp or look for the light flash confirming your car has locked. If it doesn't, you could be the target of a jam & replay attack. Lock your car again or manually.
Stay Informed: Periodically check for any recalls or technical service bulletins (TSBs) for your vehicle's make and model related to its keyless entry system.
Secure Lost Keys Immediately: If you lose a key fob, it's a security risk. A professional locksmith can deactivate the lost key from your car's memory. When you need a reliable car key replacement, it's critical to ensure the old key is erased, not just that a new one is made.
Be Aware of Your Surroundings: If someone is loitering near your car as you lock or unlock it, be cautious. Trust your instincts.

Frequently Asked Questions About Rolling Code Technology

What's the main difference between a fixed code and a rolling code?

A fixed code is like a password you never change—it sends the same signal every time and is easy to copy. A rolling code is like a password that changes every single time you use it, making any copied code instantly obsolete.

Will changing my key fob battery make it lose sync?

Generally, no. Most modern fobs are designed to retain their synchronization memory even without power. However, if your fob acts strangely after a battery change, it may need a simple resynchronization. Often, this is a simple procedure, but if problems persist, professional key fob programming can ensure everything is working correctly.

Are rolling codes unbreakable?

The encryption itself is extremely difficult to "break" in a traditional sense. However, as we've seen, thieves focus on exploiting the _process_ (relay attacks, jamming) or finding specific software flaws (vulnerability exploits) rather than breaking the code itself. So, while highly secure, no system is 100% "unbreakable."

Is a relay attack the same as cloning a key?

No, and this is a key distinction. A relay attack simply extends the signal of your _original_ key. The thieves never create a new, functional key. Key cloning (or key duplication) is the process of creating a new physical key that is programmed to work with your car.

How do I know if my car uses rolling codes?

Virtually all vehicles manufactured since the early 2000s use rolling code technology. If your car was made in the last 20 years, it is almost certainly equipped with it.

Your Trusted Partner in Automotive Security

Understanding the technology that protects your vehicle is the first step toward true security. Your key fob is more than a convenience—it's the first line of defense in a constant, invisible battle against theft. By knowing how it works and where its weaknesses lie, you can make informed decisions to keep your car safe.

At Sure Lock & Key, we believe in empowering our community through education. Whether you need help with a lost key, a malfunctioning fob, or are dealing with an urgent situation, our family of experts is here to provide clarity and professional service. If you're ever in a bind, our 24/7 car lockout service is ready to help, and if the issue points to a deeper problem, our technicians can diagnose whether it's a simple fix or requires more complex ignition repair. Stay safe, and stay informed.
