How to Replace an Ignition Lock Cylinder: Step-by-Step Guide

Published Date: Oct 9, 2025

A key that won’t insert or a cylinder that spins — either may indicate a worn ignition lock cylinder. Fortunately, with basic tools and a clear sequence, ignition lock cylinder replacement is manageable. Ready to put in the new part yourself? Sure Lock & Key explains how to replace an ignition lock cylinder and test it. Keep reading for step-by-step instructions and quick checks.

Preparing for Your Ignition Lock Cylinder Replacement

Before you grab a screwdriver, read our blog comparing the ignition switch vs the ignition cylinder to understand the difference. Once you’re sure it’s the cylinder, park on level ground, set the parking brake, and pop the hood. Disconnect the negative battery terminal: loosen the nut and lift the cable. Then wait 10 minutes for the airbag (SRS) system to discharge. Keep your original key handy — many cars require turning it to ACC (Accessory) to release the cylinder.

Next, gather your tools. You’ll typically need a set of screwdrivers (both Phillips and flathead), a socket set with a ratchet, and possibly a steering wheel puller, depending on your vehicle’s make and model. The new ignition lock cylinder should come with a new set of keys.

Solid prep is half of how to change an ignition lock cylinder without cracked trim or lost clips. If anything feels outside your comfort zone, a mobile automotive locksmith can handle the job quickly and get you back on the road.

How to Install an Ignition Lock Cylinder in 4 Steps

With your workspace prepared, it’s time to begin the replacement. Work carefully around the steering column trim and wiring to avoid damage.

Step 1: Remove the Steering Column Covers

Access the cylinder by removing the column trim. Locate a few screws on the underside (Phillips or Torx) — lower the tilt wheel for access and drop the screws in a parts tray. After they’re out, use a plastic trim tool to separate the top and bottom cover halves. Protect the seam with painter’s tape and work from clip to clip — the plastic clips are fragile.

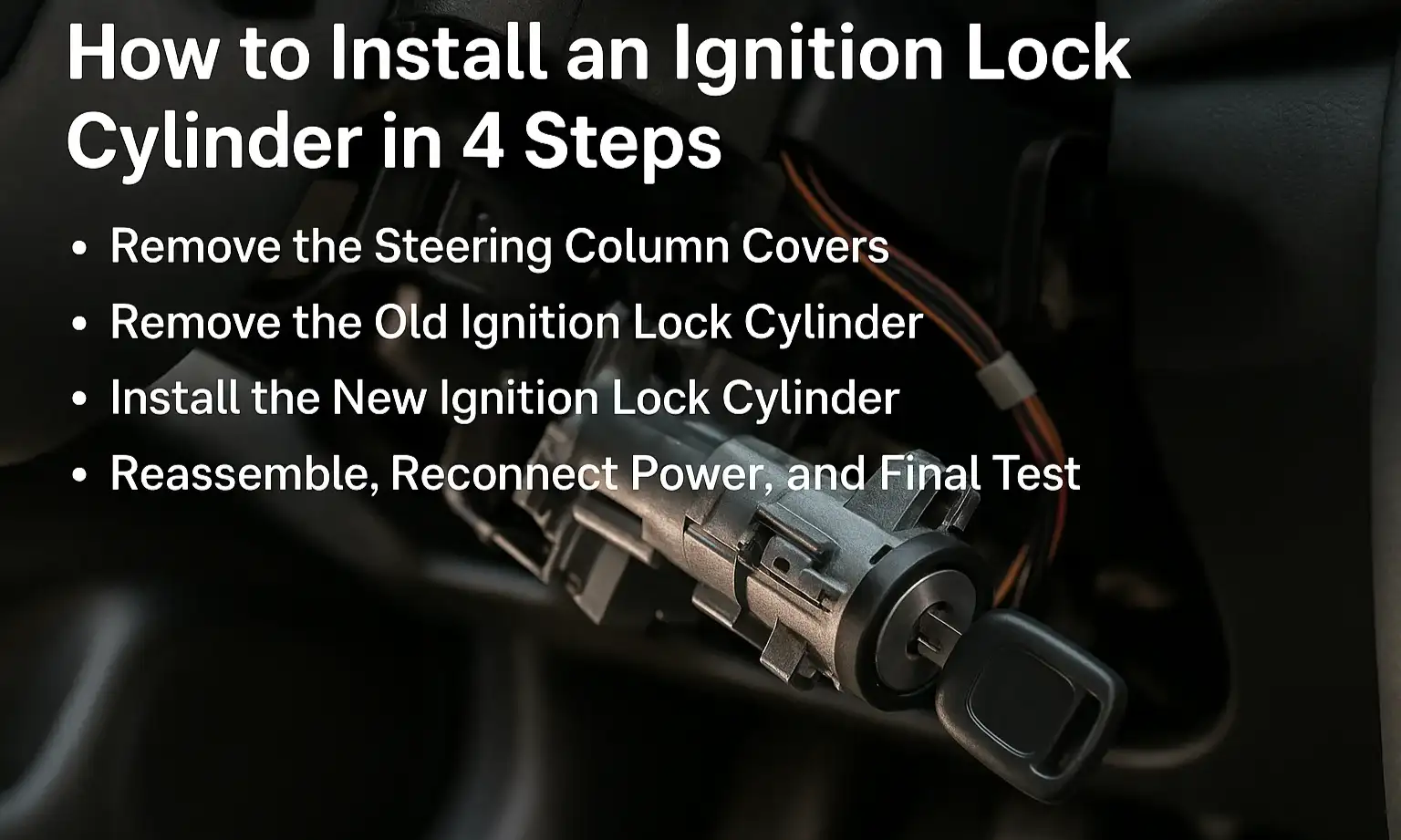

How to Install an Ignition Lock Cylinder in 4 Steps

Step 2: How to Remove the Old Ignition Lock Cylinder

With the covers off, you’ll see the ignition lock cylinder housing. Turn the key to ON or ACC to line up the release pin on the housing. Using a pick or small flat tool, press the pin while pulling the cylinder straight out. If there’s no release pin on your model, look for an access hole or a retaining screw.

Step 3: Install the New Ignition Lock Cylinder

Now, you can perform the main task: learning how to install an ignition lock cylinder.

Set the new cylinder so the key is in ON/ACC to match the old cylinder; align the drive tang/tab with the slot. Slide it into the housing until it clicks. You can test it by turning the key through all the positions, from “Off” to “Start,” to make sure it moves smoothly. Some vehicles with an immobilizer (factory anti-theft) may need key programming or a relearn procedure. Want a quick overview of what professionals do? Read automotive locksmith services from Sure Lock & Key.

Step 4: Reassemble, Reconnect Power, and Final Test

Once the new cylinder is secure, you can reassemble the steering column covers. Bottom first, then top — match Phillips/Torx screws and don’t overtighten to avoid cracking the plastic. After that, reconnect the negative battery cable. The final step is to test the system. Start the car to confirm the car ignition key replacement worked and that the accessories operate normally.

The Risks of DIY Ignition Key Replacement

While this guide on how to replace an ignition lock cylinder covers the basic steps, the job can get complicated. Modern cars use transponder keys (a chip that talks to the immobilizer), plus sensitive wiring in the steering column. A slip can crack the trim, damage the clockspring, or even deploy an airbag. It also pays to know the difference between the cylinder and the switch, so you don’t swap the wrong part.

If any of this gives you pause, talk to a car locksmith. A locksmith ignition switch service performs the work correctly and reduces risk to other systems. Sure Lock & Key can diagnose the issue, replace the cylinder or switch, and handle key programming when needed.

Make It Easy, Make It Safe

Followed the steps for how to replace an ignition lock cylinder and hit a snag? Let an experienced auto locksmith step in. We’ll remove the old cylinder, fit the new one, align the drive tab, and confirm smooth key travel from OFF to START. Sure Lock & Key has served drivers for more than 35 years, and we’re happy to take it from here.
