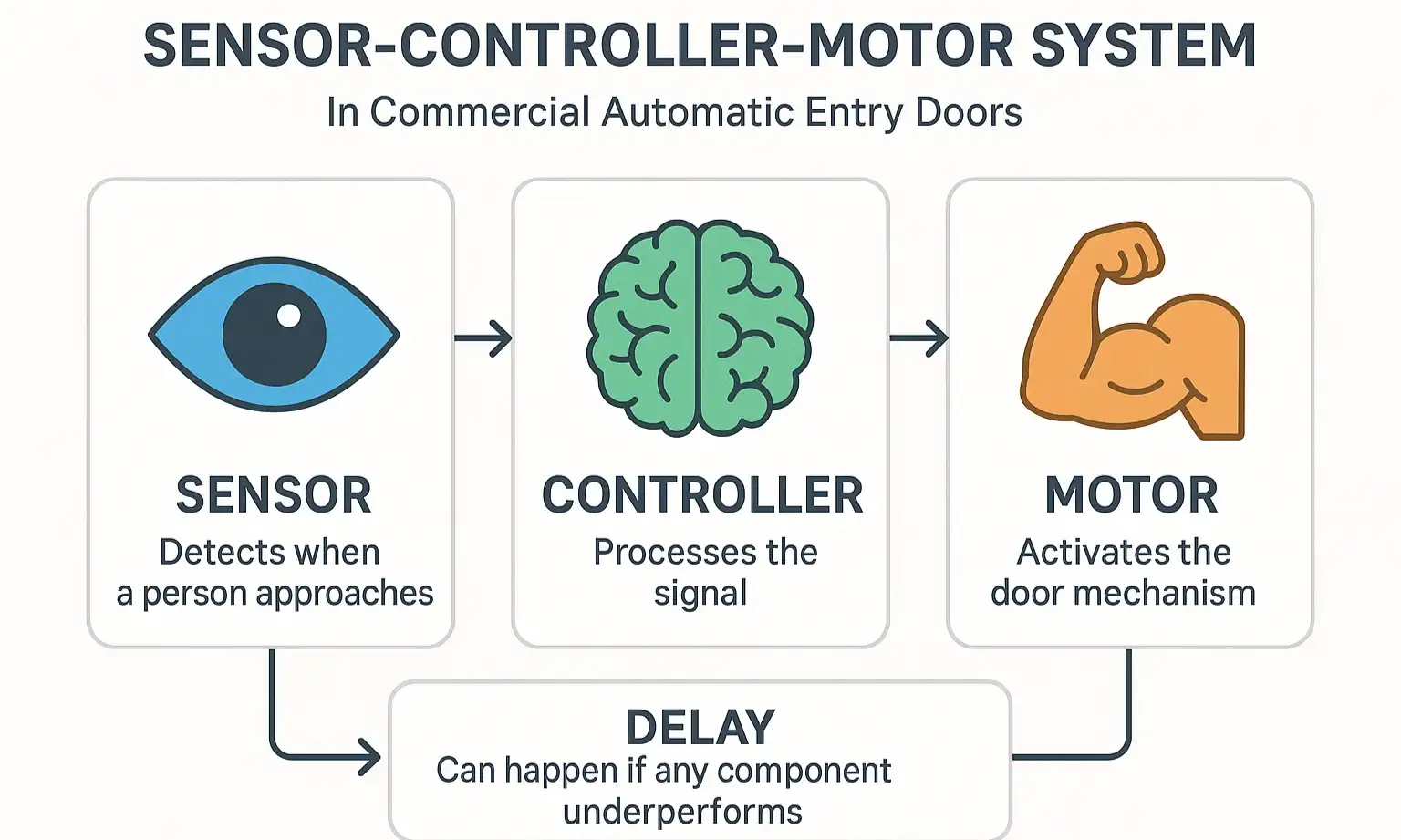

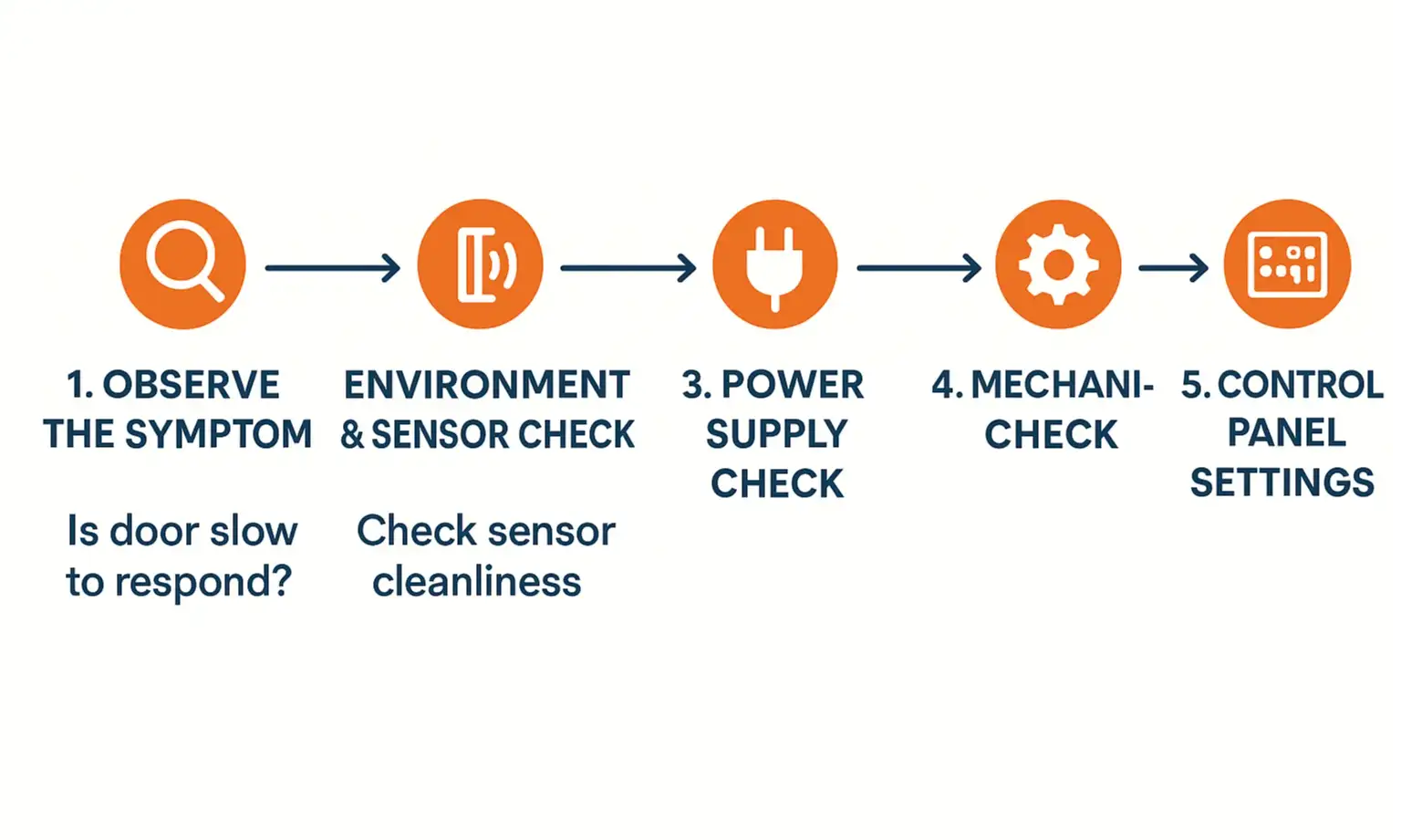

Now that you understand the core components, you can work through a logical diagnostic process. Don’t just guess; follow these steps to systematically pinpoint the problem.
Step 1: Observe the Symptom (The Triage)

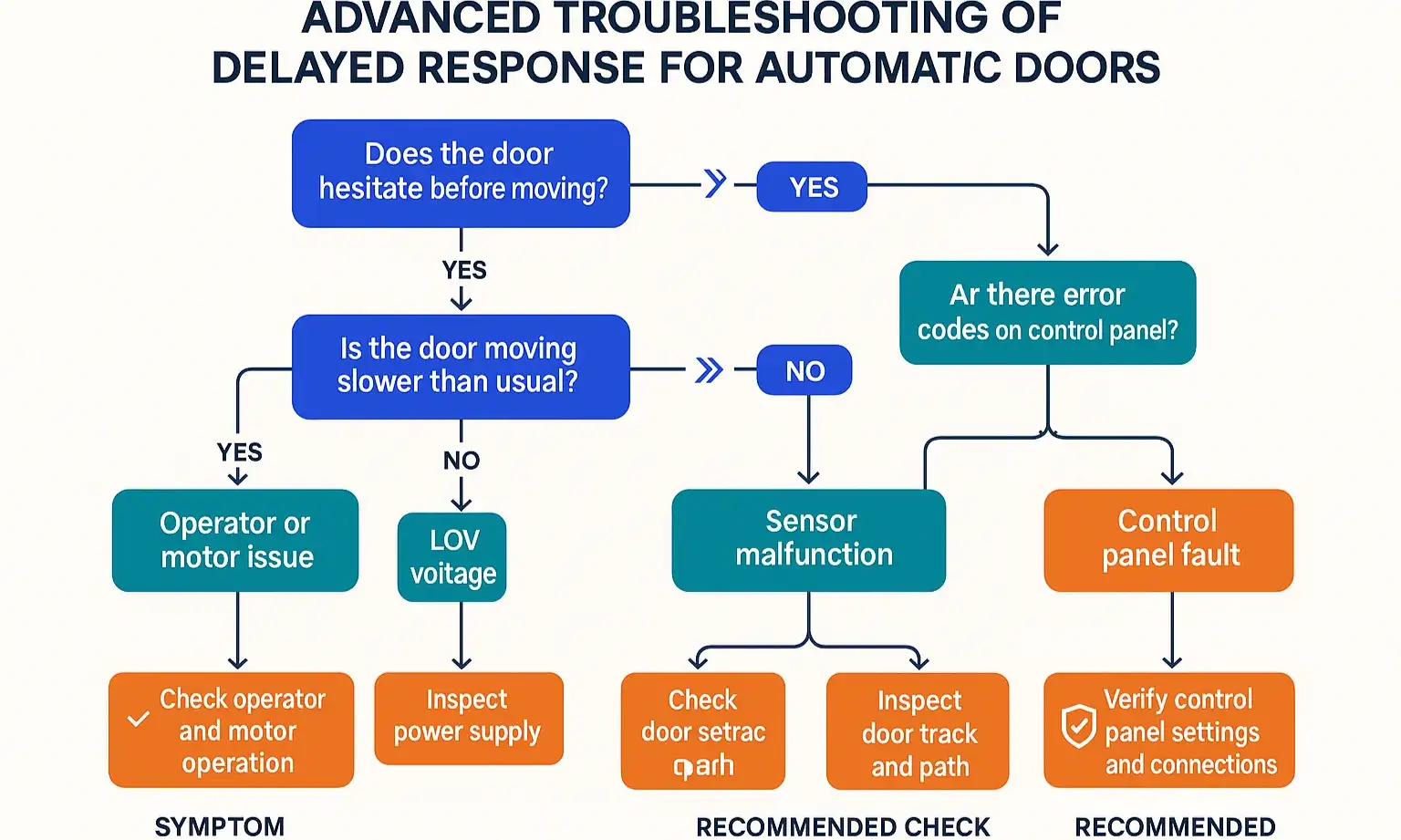

First, define the problem accurately. There’s a big difference between a “delayed response” and “slow movement.”
Delayed Response: The door pauses for a second or two after a person enters the sensor range before it starts to open. The opening speed itself is normal. This usually points to a sensor or controller issue.
Slow Movement: The door begins to open immediately but moves very slowly. This often indicates a mechanical or power issue.
Pinpointing this difference is your first clue and will guide the rest of your troubleshooting.
Step 2: The Environment & Sensor Check (The Easiest Fixes)
The “eyes” of your door are sensitive. Before diving into technical components, check for simple external factors. These account for a surprising number of issues.
Clean the Sensor Lens: Dirt, grime, dust, or even spiderwebs can obstruct the sensor’s view. Gently wipe the lens with a soft, clean cloth.
Check for Obstructions: Is a new floor mat, a promotional sign, or a potted plant interfering with the sensor’s field of view? Remove anything that might be blocking the signal.
Look for Environmental Interference: Bright sunlight shining directly into the sensor can sometimes cause confusion. Similarly, reflections from puddles or nearby windows can trigger false signals or cause delays.
Step 3: The Power Supply Check
Like any electronic device, a consistent power supply is crucial.
Check the Power Switch: It sounds obvious, but make sure the door’s power switch is fully in the “On” or “Auto” position. Sometimes it can be accidentally knocked to a “Hold Open” or “Off” setting.
Inspect the Breaker: Check your building’s circuit breaker to ensure the door’s circuit hasn’t been tripped. If it has, reset it once. If it trips again, there may be a deeper electrical issue that requires a professional.
Step 4: The Mechanical Check
If the door is moving slowly (not just delayed), the “muscles” might be struggling.
Inspect the Track: Look for debris, small stones, or built-up gunk in the door’s track. Clear out anything that could be causing physical resistance.
Check the Rollers and Belts: Look for visible signs of wear and tear on the door’s rollers or drive belt. A frayed belt or a broken roller will hinder movement. While automatic doors are motorized, the principles of smooth motion are similar to what you’d find in a manual hydraulic door closer, where mechanical integrity is key.
Common Mistake Alert: Never use lubricants like WD-40 on the tracks. They can attract dirt and grime, making the problem worse over time.
Step 5: The Control Panel (Basic Settings)
The “brain” has settings that can be adjusted. Before making any changes, take a picture of the current settings with your phone so you can revert if needed.
Check Sensitivity Settings: Many controllers have a dial or setting for sensor sensitivity. If it’s set too low, it may not detect people until they are very close, causing a perceived delay. Try increasing it slightly.
Review Delay Timers: Some doors have an intentional opening delay setting. Check the user manual to see if this setting has been accidentally activated or set too high.
Integrated Systems: The controller often communicates with your building’s security. There are many types of access control systems, and a miscommunication between them and the door controller can sometimes cause delays.
