Why Your Automatic Door Hesitates: A Complete Troubleshooting Guide
Published: Mar 25, 2026
That split-second pause. You see a customer approaching your entrance, but the automatic door doesn't immediately glide open. It hesitates, creating a moment of awkwardness and friction right at your front step. It’s more than just a minor annoyance; it's a flaw in the first impression your business makes.
This delayed response can signal bigger problems, impacting everything from customer satisfaction and accessibility to your building's energy efficiency. But before you assume a costly repair is needed, what if you could diagnose the issue yourself?
Most guides give you a simple list of problems. We’re going to do something different. We’ll teach you how your automatic door thinks, empowering you to move from symptom to solution with confidence.

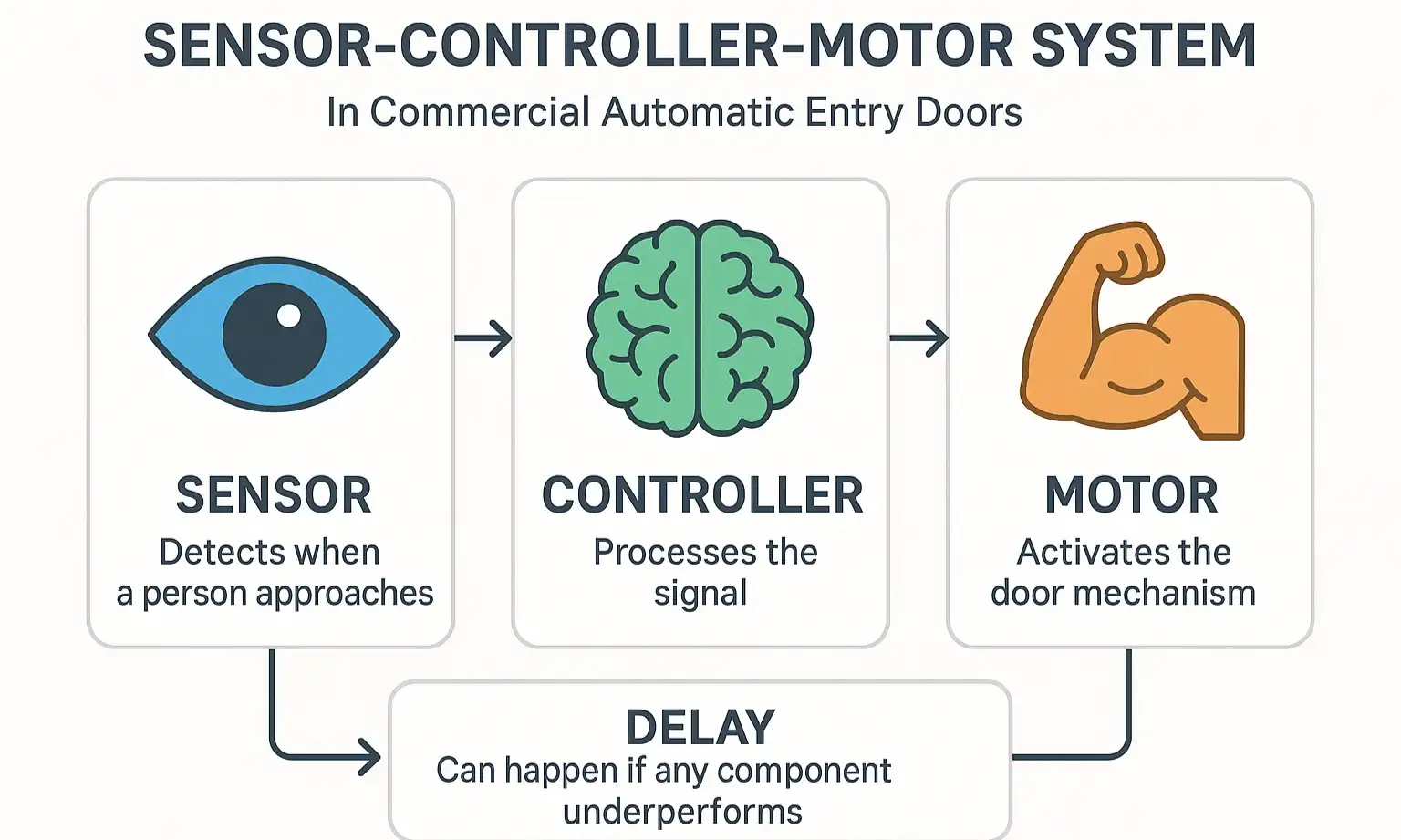

Foundation: How Your Automatic Door Thinks
The first "aha moment" in troubleshooting is realizing that your automatic door is essentially a simple robot with three key parts working together. A delay means there’s a communication breakdown somewhere in the system.
Think of it like this:
- The Sensor is the Eyes: This is what detects an approaching person. It can be a motion detector that sees movement or an infrared sensor that senses body heat.
- The Controller is the Brain: This is a small computer that receives the signal from the sensor ("eyes see someone!"). It then makes a decision and sends a command.
- The Motor is the Muscles: The motor receives the command from the controller and does the physical work of opening and closing the door.
When a door hesitates, it's because the eyes aren't seeing clearly, the brain is slow to process, or there's an issue with the signal getting to the muscles. Understanding this simple relationship is the key to figuring out what's wrong.

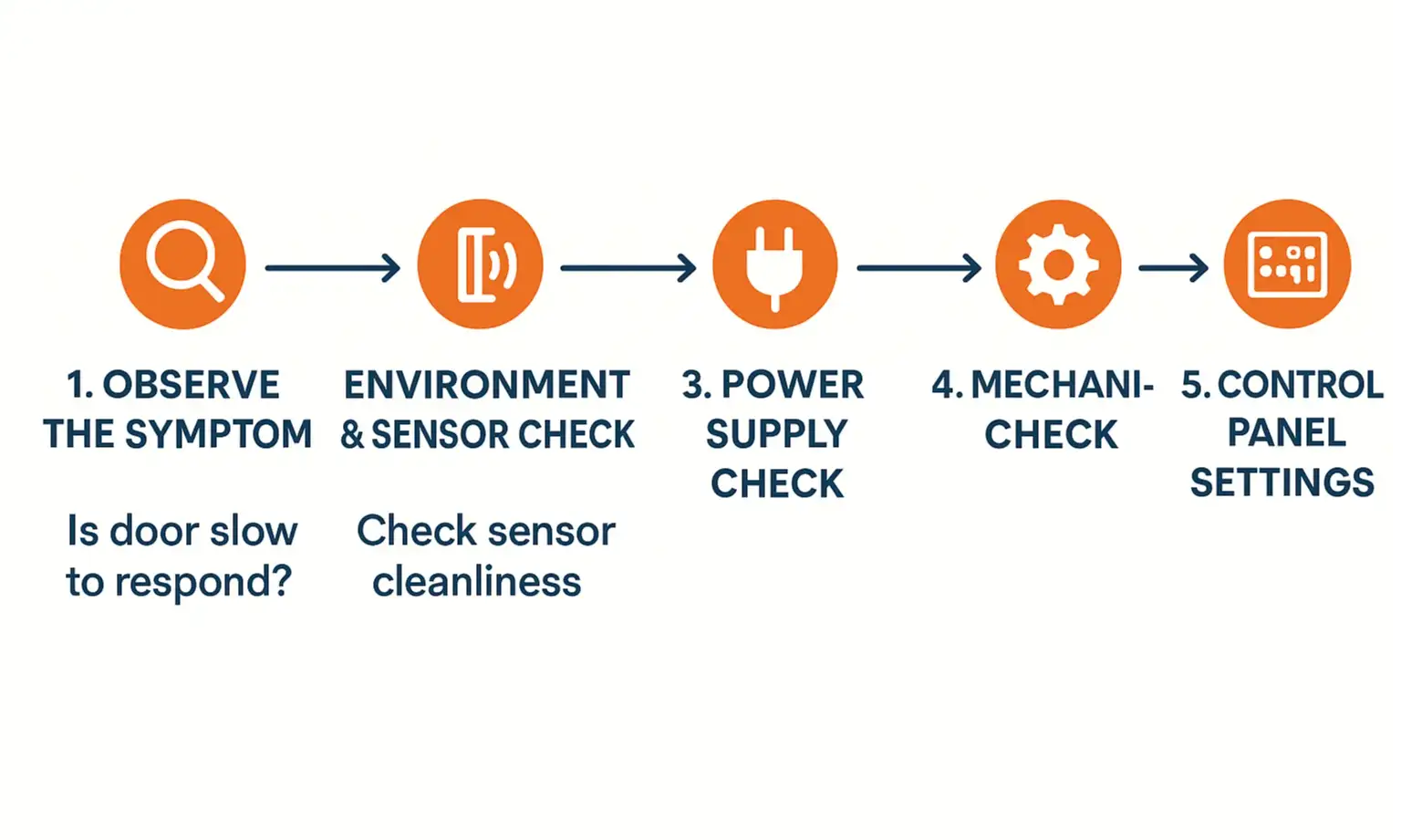

Building: The 5-Step Diagnostic Process
Now that you understand the core components, you can work through a logical diagnostic process. Don’t just guess; follow these steps to systematically pinpoint the problem.
Step 1: Observe the Symptom (The Triage)
First, define the problem accurately. There's a big difference between a "delayed response" and "slow movement."
Delayed Response: The door pauses for a second or two after a person enters the sensor range before it starts to open. The opening speed itself is normal. This usually points to a sensor or controller issue.
Slow Movement: The door begins to open immediately but moves very slowly. This often indicates a mechanical or power issue.
Pinpointing this difference is your first clue and will guide the rest of your troubleshooting.
Step 2: The Environment & Sensor Check (The Easiest Fixes)
The "eyes" of your door are sensitive. Before diving into technical components, check for simple external factors. These account for a surprising number of issues.
Clean the Sensor Lens: Dirt, grime, dust, or even spiderwebs can obstruct the sensor's view. Gently wipe the lens with a soft, clean cloth.
Check for Obstructions: Is a new floor mat, a promotional sign, or a potted plant interfering with the sensor's field of view? Remove anything that might be blocking the signal.
Look for Environmental Interference: Bright sunlight shining directly into the sensor can sometimes cause confusion. Similarly, reflections from puddles or nearby windows can trigger false signals or cause delays.
Step 3: The Power Supply Check
Like any electronic device, a consistent power supply is crucial.
Check the Power Switch: It sounds obvious, but make sure the door's power switch is fully in the "On" or "Auto" position. Sometimes it can be accidentally knocked to a "Hold Open" or "Off" setting.
Inspect the Breaker: Check your building's circuit breaker to ensure the door's circuit hasn't been tripped. If it has, reset it once. If it trips again, there may be a deeper electrical issue that requires a professional.
Step 4: The Mechanical Check
If the door is moving slowly (not just delayed), the "muscles" might be struggling.
Inspect the Track: Look for debris, small stones, or built-up gunk in the door's track. Clear out anything that could be causing physical resistance.
Check the Rollers and Belts: Look for visible signs of wear and tear on the door's rollers or drive belt. A frayed belt or a broken roller will hinder movement. While automatic doors are motorized, the principles of smooth motion are similar to what you’d find in a manual hydraulic door closer, where mechanical integrity is key.
Common Mistake Alert: Never use lubricants like WD-40 on the tracks. They can attract dirt and grime, making the problem worse over time.
Step 5: The Control Panel (Basic Settings)
The "brain" has settings that can be adjusted. Before making any changes, take a picture of the current settings with your phone so you can revert if needed.
Check Sensitivity Settings: Many controllers have a dial or setting for sensor sensitivity. If it's set too low, it may not detect people until they are very close, causing a perceived delay. Try increasing it slightly.
Review Delay Timers: Some doors have an intentional opening delay setting. Check the user manual to see if this setting has been accidentally activated or set too high.
Integrated Systems: The controller often communicates with your building's security. There are many types of access control systems, and a miscommunication between them and the door controller can sometimes cause delays.

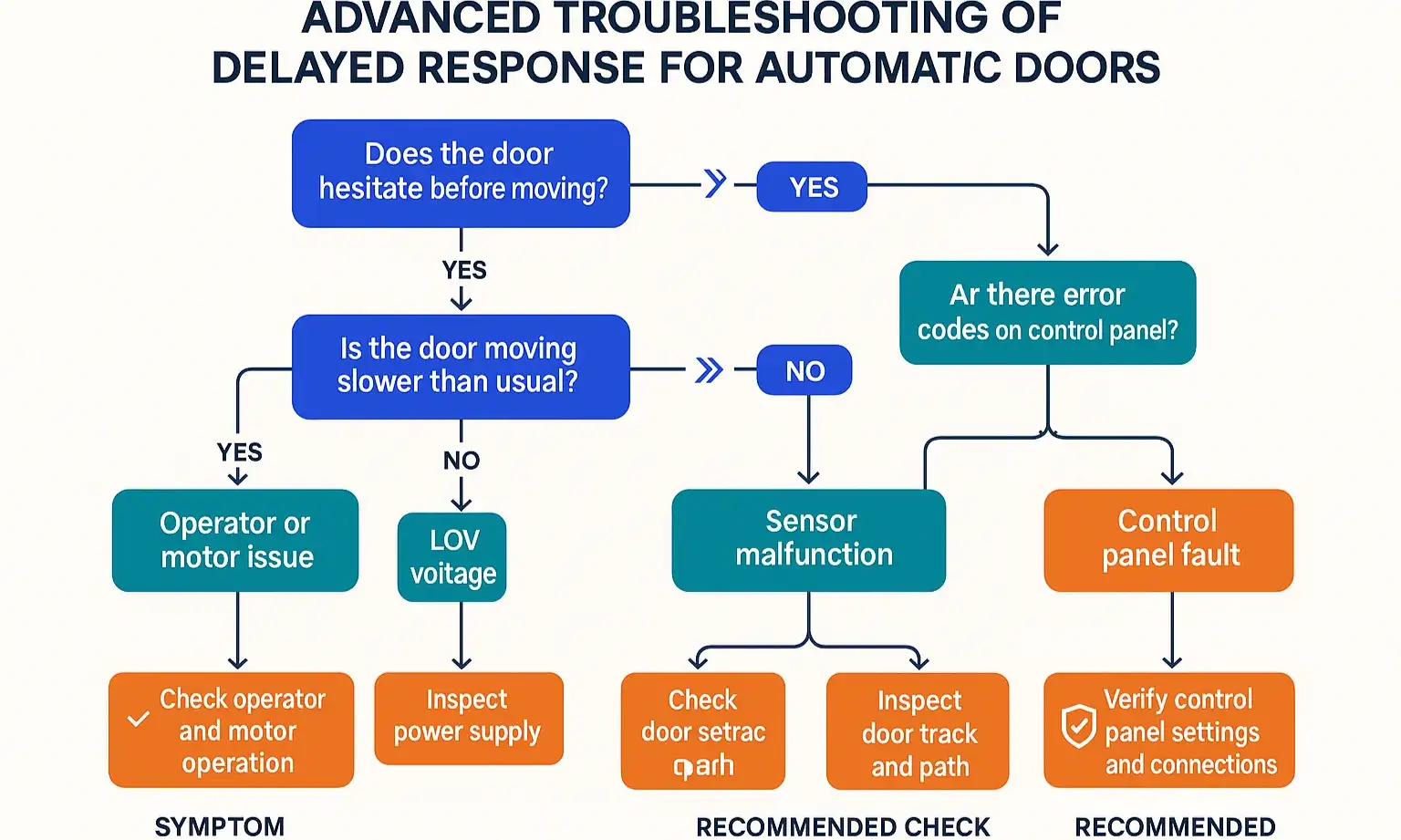

Mastery: The Advanced Troubleshooting Flowchart
If the basic steps haven't solved your problem, it's time to connect specific symptoms to their most likely causes. This chart helps you think like a technician by narrowing down the possibilities based on what you're observing.
Action: When to Call a Pro & How to Prevent Future Issues
DIY troubleshooting can solve many common problems, but it's crucial to know your limits. Your customers' safety and your business's security are paramount.
Call a professional when:
- You hear grinding, scraping, or other unusual noises from the motor.
- The door moves erratically or slams open/shut.
- You see frayed wires, sparks, or smell burning.
- The problem persists after you've run through the 5-step diagnostic process.
- The issue goes beyond a simple delay, such as a completely broken door lock mechanism.
- The door's delay is accompanied by the automatic door lock not working, which points to a more complex electrical failure.
For these situations, it's time to contact a professional commercial locksmith who has the tools and expertise to safely repair the system.
Simple Preventative Maintenance Schedule
The best way to fix a problem is to prevent it from happening.
- Weekly: Wipe down the sensor lenses with a soft, dry cloth.
- Monthly: Inspect the door's track and clear out any debris.
- Quarterly: Observe a full open-and-close cycle. Listen for any new noises and check that the door's movement is smooth.
Need more information?
Get a free quote
Frequently Asked Questions
What are the most common problems with automatic doors?
The most common issues are sensor-related. Dirty lenses, misalignment, and environmental interference account for the majority of delayed response problems and are often the easiest to fix yourself.
How do I reset my automatic door sensor?
Most systems can be reset by simply turning the door's power off for 30-60 seconds and then turning it back on. This allows the controller's internal computer to reboot. If this doesn't work, consult your owner's manual, as some models may have a specific reset button.
Can weather affect my automatic door?
Absolutely. Heavy rain or snow can sometimes fool infrared sensors, while strong winds can create mechanical resistance that slows the door down. Ensuring your sensors are clean and the track is clear is especially important during bad weather.
My automatic door opens when no one is there. What's causing this?
This is often called "ghosting" and is usually caused by a sensor issue. The sensor might be too sensitive, picking up reflections, vibrations, or even small animals. It could also be a sign of a wiring issue causing a false signal. Try reducing the sensor's sensitivity first.
Your First Step to a Smoother Welcome
A properly functioning automatic door is an invisible part of a great customer experience. By understanding how the system works—as a team of eyes, a brain, and muscles—you are now better equipped to handle minor hiccups and, just as importantly, to recognize when a problem needs an expert's touch. Keep this guide handy, follow a simple maintenance routine, and ensure your business's first impression is always a smooth one.
