The Complete Guide to Solar Gate Openers and Automation Technologies: Sizing, Compliance, And Installation

Published: Aug 5, 2026

Selecting a gate automation system is a critical security and operational decision. Property owners often face a classic dilemma: pay thousands of dollars trenching high-voltage AC electrical lines under driveways, or install a DC-powered solar gate opener. To make an informed choice, you must look beyond catalog specifications and understand the physics of energy management, mechanical geometries, and strict legal safety standards.

Whether you are integrating automated barriers with a wireless access control network or securing a remote rural perimeter, this guide provides the engineering-first data needed to design a reliable, compliant automated gate system.

Introduction & The Core AC vs. DC Paradigm

Traditional gate operators use alternating current (AC) grid power to drive high-torque motors. This is ideal for continuous, high-frequency commercial operations. However, modern systems rely increasingly on low-voltage direct current (DC) motors backed by dedicated batteries. DC motors offer fine-tuned speed control, enabling soft start-and-stop profiles that reduce mechanical wear on hinges.

Solar gate systems operate purely on DC power. While they eliminate the need for costly grid trenching, they introduce a closed-loop energy budget where every watt spent must be systematically replenished by solar radiation. To secure automated gates effectively, some owners pair their systems with a heavy-duty electronic gate lock to resist forced physical entry, but this creates another power-consuming accessory that must be accounted for in your daily energy budget.

The Solar Gate Opener Sizing Engine (Interactive Calculator)

Solar Gate Opener Power Consumption

Many solar gate operators fail in winter not because the motor draws too much power, but due to “parasitic standby draw.” A standard gate motor draws massive current (~5 to 10 Amps at 24V DC), but only runs for 15 to 20 seconds during a cycle. Conversely, the system’s RF receivers, safety sensors, loop detectors, and control boards operate 24/7.

Standard system standby current ranges from 15mA to 50mA. At 24V, a steady 30mA standby draw consumes 17.28 Watt-hours (Wh) daily just remaining idle. If your gate cycles 10 times a day (taking 20 seconds per cycle at 8 Amps), the physical motor uses only 1.06 Wh daily. This means over 94% of a solar gate’s daily battery drain is standby load, not physical operation.

To size your system correctly, apply this formula:

Standard Formula:

Daily Energy Required (Wh) = [I_standby × 24h × V] + [I_active × t_cycle × N_cycles × V]

Simplified Formula:

Daily Energy Required (Wh) = V × [(I_standby × 24h) + (I_active × t_cycle × N_cycles)]

In regions with low winter solar insolation (averaging 1.5 peak sun hours daily, such as Seattle or parts of New Zealand), a standard 10W panel with a 30% system loss only yields 10.5 Wh of usable daily power—failing to cover the baseline standby load. To avoid failure, upgrade to a 20W or 30W panel and increase battery reserve capacity.

Slide vs. Swing Gate Operators: Mechanical Breakdown

Solar Gate Sizing

Selecting the mechanical operator depends heavily on your entry layout, gate geometry, and topography.

Sliding Gate Operators

A solar-powered slide gate opener must overcome high static friction.

  • Roller Wheels on Track: Highly efficient but prone to obstruction from gravel, ice, or debris.
  • Cantilever Systems: Suspended off the ground, avoiding debris issues but requiring a larger footprint (the gate tail must be roughly 30% to 50% longer than the driveway opening) and more structural frame strength.

Swing Gate Operators

A solar powered swing gate opener is highly popular but sensitive to wind resistance and mounting geometry.

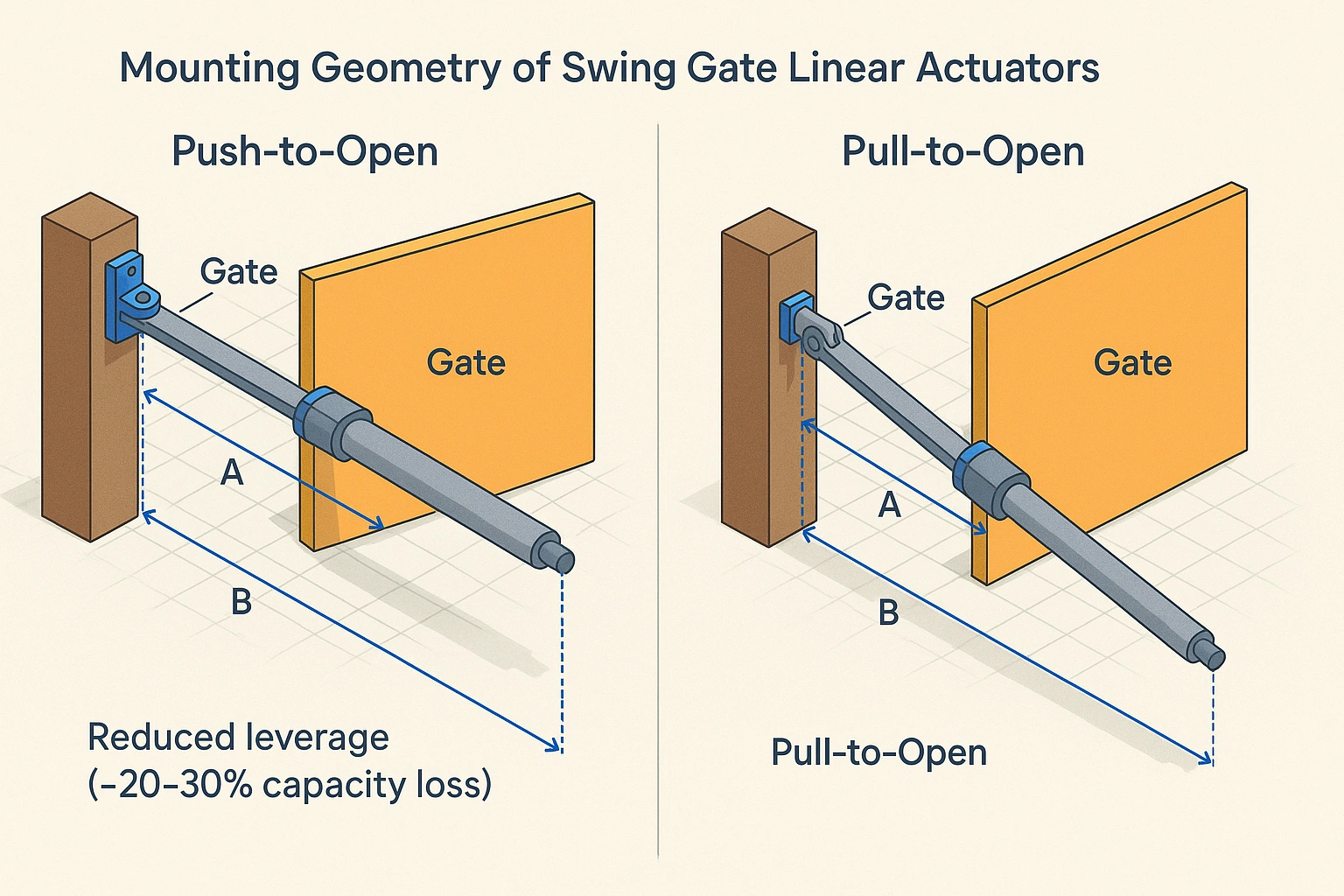

  • Linear Actuator (Ram Arm): Uses a screw-drive or hydraulic piston. Mounting geometry is highly sensitive.
  • Articulating Arm: Better for wide masonry pillars as it mimics the natural movement of a human elbow.

When utilizing linear actuators for outward-swinging doors (“push-to-open” setups), you lose mechanical leverage. Mounting a linear actuator in a push-to-open configuration cuts its maximum weight and length capacity by 20% to 30% compared to a pull-to-open setup, demanding a heavy-duty motor upgrade.

If your commercial property features heavy ornamental gates, consult commercial locksmith services to ensure correct structural brackets are fabricated and welded.

Safety First: Decoding UL 325 and ASTM F2200 Standards

Decoding Safety Stabdarts For Solar Gates

Operating automated gates carries liability. Under the UL 325 safety code (7th Edition), all automated gate systems must actively monitor a minimum of two independent entrapment protection zones in both the opening and closing directions.

Cheap, non-monitored safety accessories will not work on modern UL-listed control boards. The controller performs a diagnostic heartbeat check before starting any cycle. If it does not receive a clear signal from the monitored sensors, it locks the gate open.

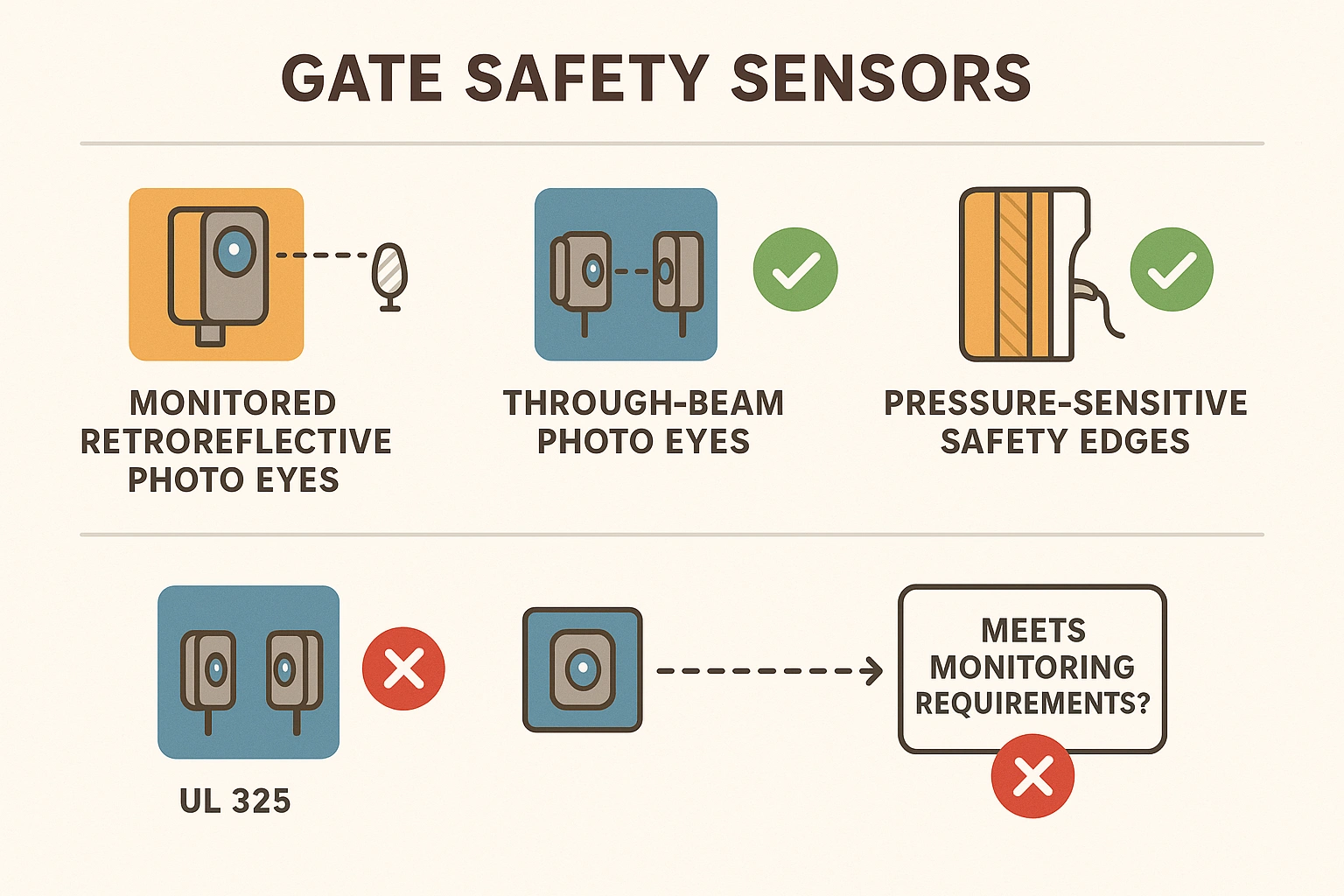

Ensure your system is equipped with high-quality, monitored proximity access control devices, such as monitored photo eyes and safety contact edges, to comply with safety protocols and prevent entrapment accidents.

  • Through-Beam Photo Eyes: Extremely reliable in rain or heavy snow; requires wiring run under the driveway to both transmitter and receiver.
  • Retroreflective Photo Eyes: Easier to install as they only require wiring on one side of the driveway, bouncing the light beam off a passive mirror reflector.
  • Safety Contact Edges: Pressure-sensitive strips mounted on the gate edge that immediately halt and reverse movement upon impact.

Battery Chemistry Selection: SLA vs. AGM vs. Lithium (LiFePO4)

A solar gate opener is only as reliable as its battery.

  • SLA (Sealed Lead Acid): Low upfront cost but short lifespan (2 to 3 years) and high maintenance.
  • AGM (Absorbed Glass Mat): Excellent cold-weather durability. However, they experience up to a 50% capacity drop in sub-zero winter temperatures.
  • Lithium (LiFePO4): High energy density, lightweight, and lasts up to 10 years. However, Lithium batteries cannot accept a charge below 32°F (0°C) without damaging the cells. If using Lithium in cold climates, ensure your solar charge controller includes a low-temperature thermal cut-off or use a heated battery box.

Next Steps for Secure Automation

Designing a secure, code-compliant automated gate system requires balancing electrical math with physical geometry. Avoid the trial-and-error of DIY kits. Trust the fully-trained, licensed technicians at Sure Lock & Key to design, install, and service your residential or commercial access systems with 24/7 reliability. Contact us today to secure your perimeter professionally.

Frequently Asked Questions

Why is my solar gate opening but refusing to close?

This is usually caused by sensor misalignment. Clean any dirt, frost, or cobwebs off your photoelectric sensors. If the diagnostic LED on your safety sensor is flashing red, the control board is blocking the closing cycle to prevent a potential entrapment event.

Can I use a regular car battery for my solar gate opener?

No. Starter car batteries are designed to deliver short, high-amp bursts. Solar systems require deep-cycle AGM or marine batteries designed to handle continuous standby loads and repeated deep discharges.

Will a solar gate opener work during extended rainy or overcast days?

Yes, provided the system is sized correctly. Solar gate openers do not run directly off the solar panel; the panel charges a deep-cycle battery (12V or 24V), which powers the motor. A properly sized battery bank holds enough reserve power to operate the gate for 3 to 10 days without any direct sunlight.

Can I convert my existing electric gate opener into a solar-powered system?

In many cases, yes. If your existing gate operator runs on low-voltage DC power (typically 12V DC or 24V DC), you can often add a solar panel kit and battery backup. However, if your opener relies on AC mains power (110V/220V AC), converting it requires either replacing the operator with a DC model or installing an inverter—though replacing it with a native DC solar kit is generally far more energy-efficient.
