Unrestanding Single vs. Double-Sided Wafer Locks

Published: Jul 27, 2026 | Updated: Aug 14, 2026

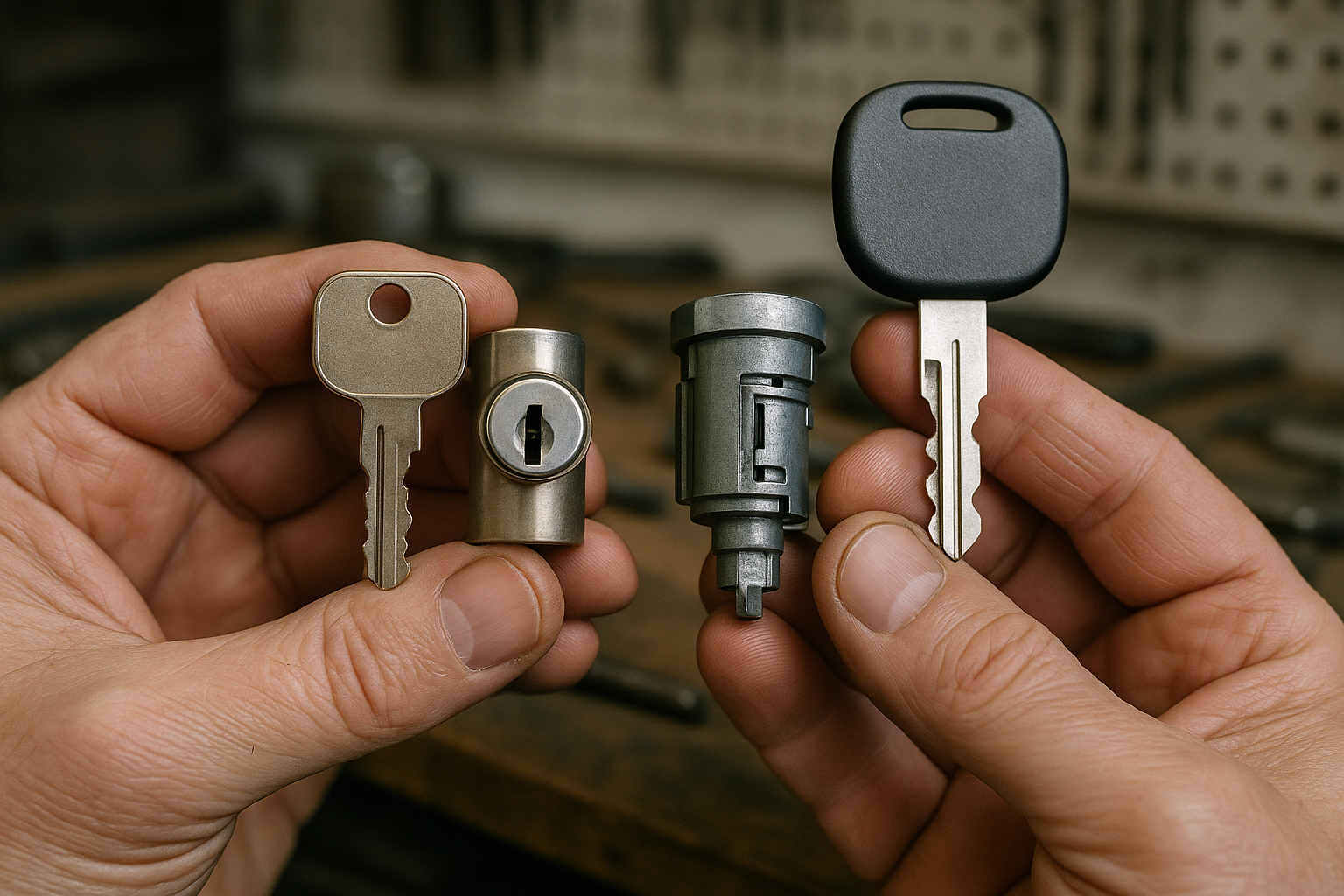

Ever paused and looked closely at your keys? You might notice your desk cabinet key has cuts on only one side, while your car key has them on both. It’s a small detail, but it tells a fascinating story about what’s happening inside the lock itself. This difference isn’t just cosmetic; it’s the key (pun intended) to understanding two distinct types of security devices: single-sided and double-sided wafer locks.

Understanding this distinction helps you see your everyday world differently—from the filing cabinet at work to your vehicle’s ignition. Let’s dive into the simple mechanics behind these common locks and discover why one is chosen over the other.

First, What Is a Wafer Lock?

Before we compare single and double-sided designs, let’s establish a baseline. Imagine a lock’s core, called a plug. Inside this plug are thin, flat metal plates called wafers. Each wafer is held in place by a tiny spring that pushes it partially into the lock’s outer casing, preventing the plug from turning.

When you insert the correct key, the notches and cuts along its blade align perfectly with these wafers, pushing them to the exact right height. Once all the wafers are flush with the plug—a point called the “shear line”—nothing is blocking it anymore. You can now turn the key, and the lock opens. It’s an elegant and effective wafer lock mechanism that’s been in use for over a century.

The Direct Comparison

The real “aha moment” comes when you see how this basic design can be built upon. The difference between a single-sided and a double-sided lock is all about how—and where—those wafers are arranged.

Single-Sided Wafer Locks

This is the simplest form. As the name implies, all the spring-loaded wafers are arranged in a single row along one side of the plug (either the top or the bottom).

The Key: The corresponding key only needs cuts on one side—the side that interacts with the wafers. The other side is typically flat.
Complexity: Because it has fewer moving parts and variables, it’s mechanically simpler. This often translates to lower manufacturing costs.
Common Uses: You’ll find these in applications where convenience and basic security are sufficient, such as desk drawers, small filing cabinets, lockers, and mailboxes.

Double-Sided Wafer Locks

Here’s where things get more interesting. A double-sided lock has two rows of wafers, one at the top of the keyway and another directly opposing it at the bottom.

The Key: This design requires a “double-bitted” key—one with cuts on both sides. Each set of cuts aligns its respective row of wafers simultaneously.
Complexity: This design significantly increases the lock’s complexity. With two sets of wafers to align, the number of possible key combinations skyrockets. This makes the lock harder to pick and more resistant to tampering.
Common Uses: Double-sided wafer locks are the standard in automotive applications (car doors and ignitions), as well as in higher-security furniture like cash boxes, lockable tool chests, and some vending machines.

Mid-content trust builders

Applications & Identification Mastery

So, how do you know which lock you’re dealing with? And where are you most likely to find them? It’s easier than you think. The first clue is the key, and the second is the application.

Where to Find Them: An Application Cheat Sheet

This simple table connects common items with the type of wafer lock they typically use.

This cheat sheet simplifies lock selection by clearly linking typical applications to single-sided or double-sided wafer locks, enabling confident, context-driven decisions.

Application	Typical Lock Type	Reason
Desk / Filing Cabinet	Single-Sided	Basic deterrence, low-security need.
Mailbox / Small Locker	Single-Sided	Cost-effective and sufficient for personal use.
Glove Compartment	Single-Sided	Low-security internal vehicle storage.
Car Door / Ignition	Double-Sided	Higher security needed to prevent vehicle theft.
Vending Machine / Arcade Game	Double-Sided	Protects cash and requires higher pick resistance.
High-Quality Tool Chest	Double-Sided	Secures valuable tools with a more complex lock.

How to Spot the Difference: A Quick Checklist

Examine the Key: Is it cut on one side or two? This is your most reliable indicator. A single-bitted key means a single-sided lock; a double-bitted key means a double-sided lock.
Look into the Keyway: If you don’t have the key, shine a light into the lock’s opening. In a single-sided lock, you’ll likely see the edges of the wafers on just the top or bottom. In a double-sided lock, you’ll see wafers on both sides.

Frequently Asked Questions

Are double-sided wafer locks more secure than single-sided ones?

Yes, generally they are. With two sets of wafers that must be aligned simultaneously, the number of unique key combinations is exponentially higher. This makes them significantly more difficult to pick and less susceptible to simple bypass techniques.

Can you pick a double-sided wafer lock?

While more challenging than their single-sided counterparts, they can be picked by a skilled individual with the right tools. The technique often involves picking one side and then the other, or using specialized tools designed to manipulate both sets of wafers at once. For those interested in the principles of lock manipulation, understanding how to pick a lock provides a deeper appreciation for lock security.

Is a double-sided wafer lock the same as a pin-tumbler lock?

No, they are different mechanisms. Wafer locks use flat, single-piece wafers. Pin-tumbler locks, which are common in house doors, use a more complex system of driver pins and key pins. While a high-quality double-sided wafer lock can be secure, pin-tumbler locks are generally considered the standard for residential and commercial entry points.

Why are wafer locks used in cars instead of pin-tumbler locks?

Wafer locks have a few advantages for automotive use. They are more compact, which is useful in the limited space of a car door or steering column. They are also more resistant to the dirt, moisture, and grime that can easily foul up the more delicate springs and pins of a pin-tumbler lock.

Your Journey Into Security Has Just Begun

What starts with a simple glance at a key can open up a whole world of mechanical design and security principles. By understanding the difference between single and double-sided wafer locks, you’ve taken a fantastic first step.

You’re no longer just seeing a lock; you’re seeing a design choice based on security, cost, and application. This curiosity is the foundation of good security awareness. To continue your exploration, a great next step is to learn more about what happens inside a door lock mechanism and how different systems work to keep you safe.
