Walter Schlage changed security forever in 1920 when he patented the bored cylindrical lock, integrating the locking mechanism directly inside the chassis. Today, homeowners face a complex security landscape. Navigating ANSI grades, mechanical lifespans, and commercial retrofits on residential doors can feel overwhelming. Sure Lock & Key, backed by over 35 years of industry experience and 24/7 mobile service across multiple states, is here to guide you through your selection, installation, and optimization journey.
Schlage Residential Lock Selection and Installation
Published: Sep 8, 2026 | Updated: Sep 9, 2026
Decoding the Alphabet Soup: Schlage Series Comparison Matrix
When evaluating Schlage hardware, you must balance daily convenience with physical durability. Homeowners often purchase locks based on aesthetics alone, unaware of mechanical performance standards. Under BHMA testing specifications, a Grade 1 cylindrical latch must survive 1,000,000 cycles, while a Grade 1 deadbolt is tested to 250,000 cycles. Standard lever handle door locks (F-Series) offer excellent everyday protection, but electronic units (FE-Series) provide keyless entry control.
For maximum security, some homeowners upgrade to heavy-duty commercial lines. The ND-Series stands as an industry benchmark, designed to withstand a massive 16 million cycles with zero lever droop, while utilizing clutched Vandlgard technology to neutralize forced entry. Understanding what is an ANSI grade lock will help you choose the correct grade for each entry point.

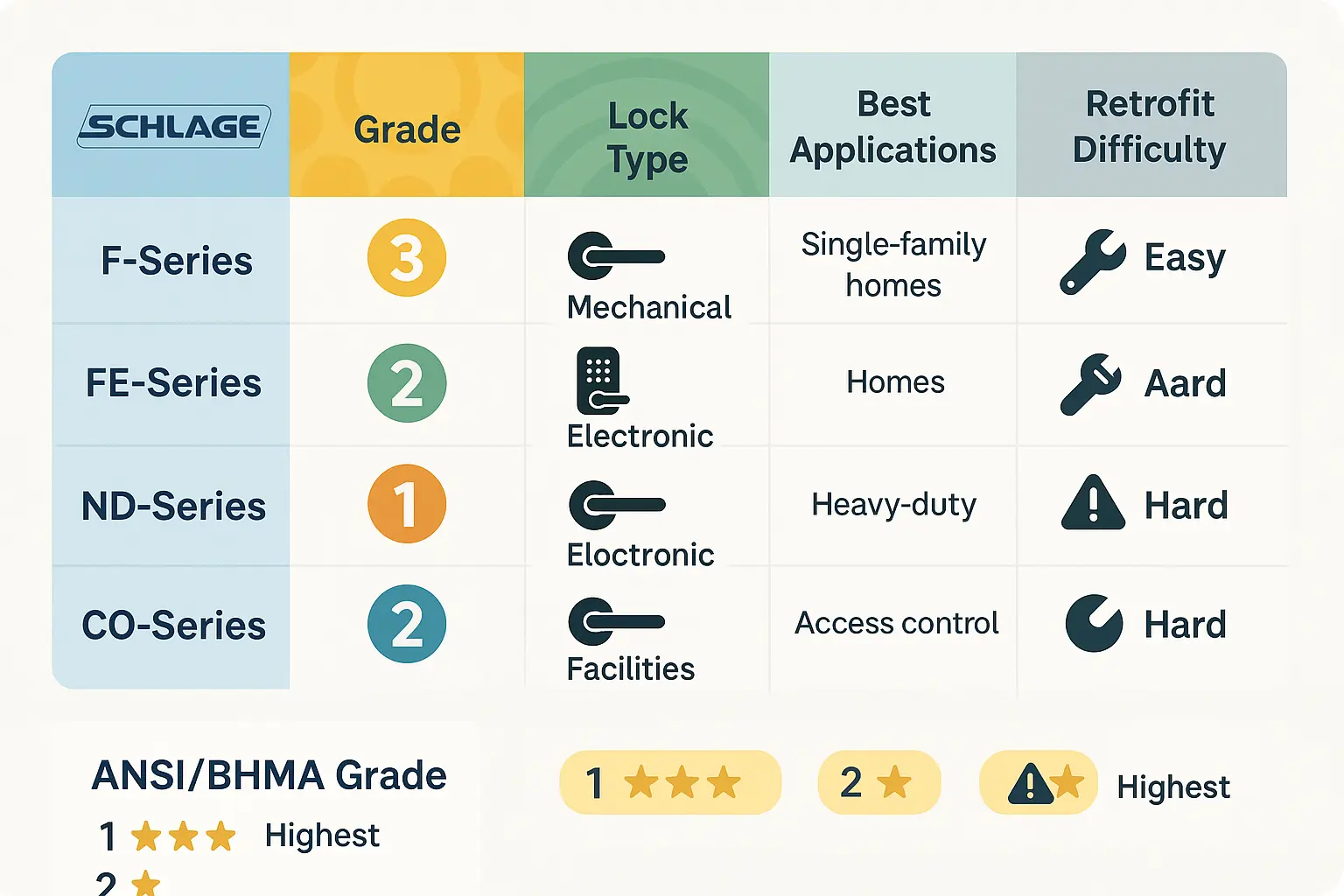

| Product Series | BHMA/ANSI Grade | Lock Type | Best Application | Key Feature | Retrofit Prep |
|---|---|---|---|---|---|
| F-Series | Grade 2 | Mechanical Knob/Lever | Interior/Exterior residential | High-strength mechanical build | Easy |
| FE-Series | Grade 2 | Keypad Electronic Lever | Garage and side doors | Flex-Lock auto-lock toggle | Easy |
| ND-Series | Grade 1 | Commercial Cylindrical | Exterior estate gates/doors | 16M cycle life & clutched lever | Moderate |
| CO-Series | Grade 1 | Electronic Cylindrical | Home offices, gyms, rentals | Up to 2,000 user PIN codes | Hard |
Retrofitting Commercial Locks (ND & CO) onto Residential Doors

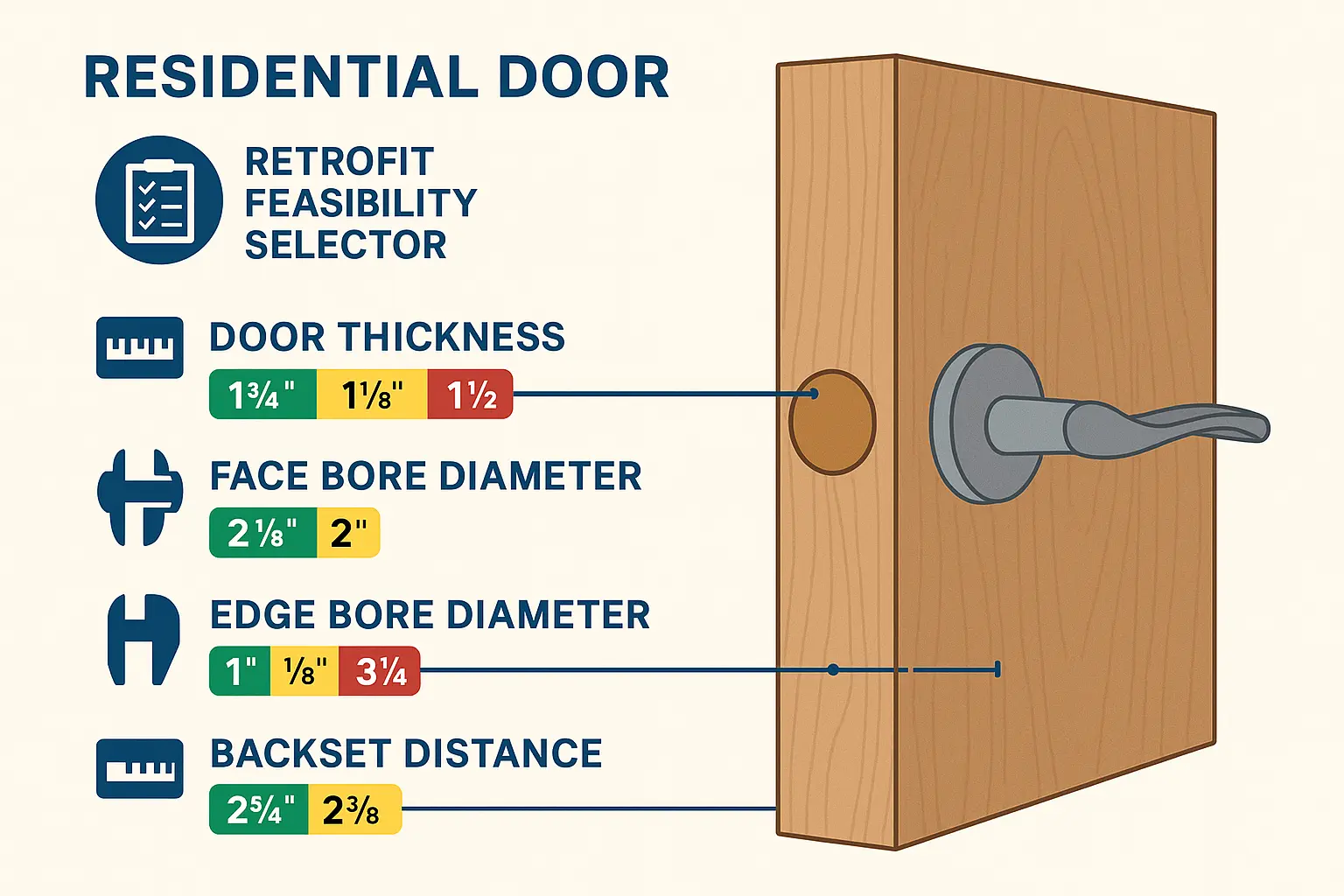

Homeowners looking for high-security solutions often run into mechanical sizing conflicts. Residential doors typically feature a 2-3/8″ backset and a thickness of 1-3/8″ to 1-3/4″. Conversely, commercial-grade locks (like the ND or CO-Series) are optimized for a 2-3/4″ backset and heavy cylindrical preparations.
Upgrading standard entryways to support high-security deadbolt cylinders may require widening the face bore from a standard dimension or drilling additional through-bolt holes. Our certified mobile technicians carry the precision drilling jigs required to prep your wood or fiberglass doors perfectly on-site, preventing misalignment issues that cause locking mechanism bind.

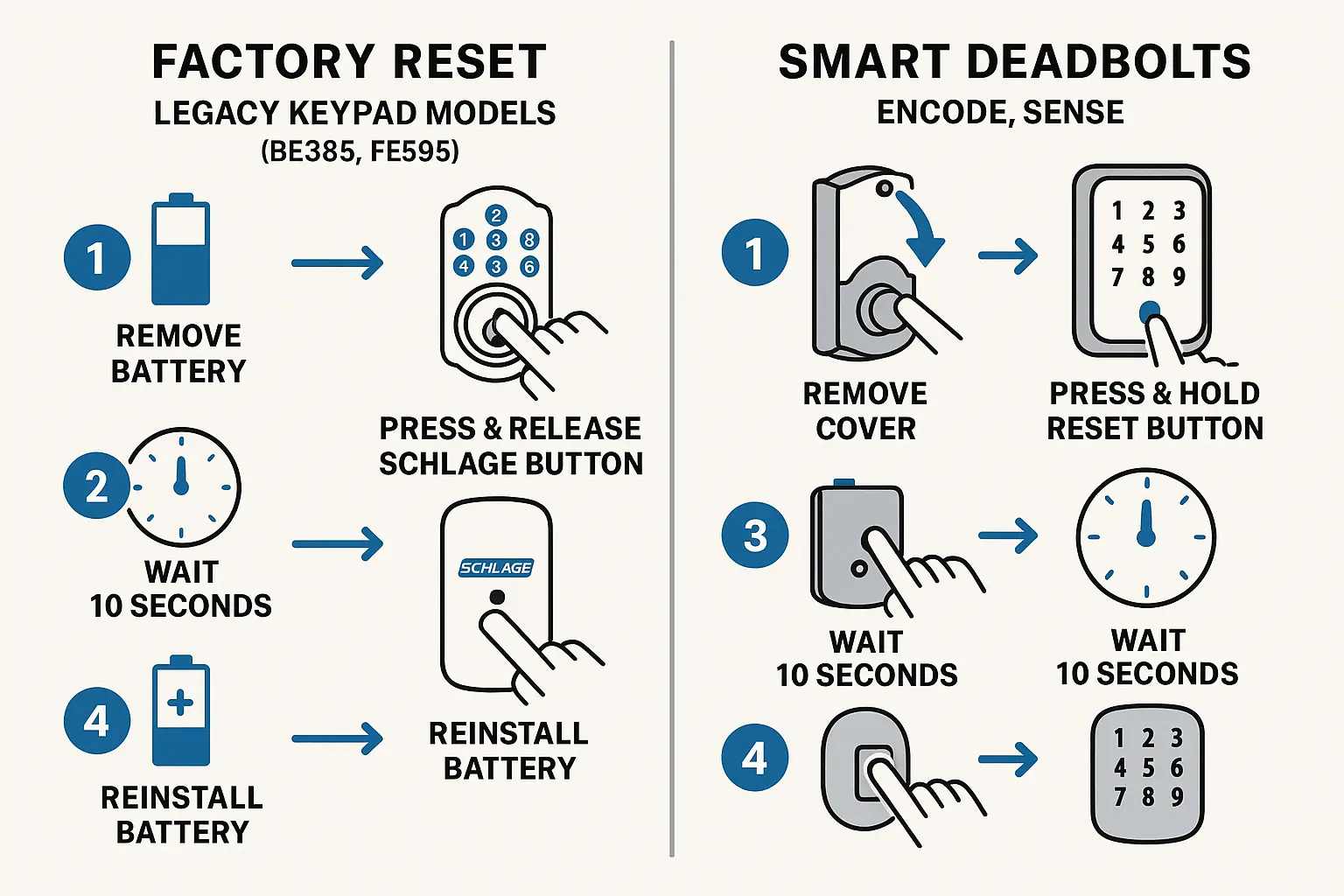

The Master Troubleshooting Vault — Resetting Your Schlage Lock
Whether dealing with a tenant transition or a lost code, resetting your lock is a critical security task. If you are performing a schlage locks installation, keeping these factory reset instructions handy will prevent lockouts.
Legacy Keypad Reset (BE365, FE595)
- Remove the battery cover and disconnect the battery harness.
- Press and release the exterior Schlage button 3 times to drain residual power.
- Reconnect the battery.
- Within 10 seconds, press and hold the Schlage button until it flashes green.
- Reprogram your lock. You must use the default codes located on the yellow-and-white sticker on your lock chassis. Read our step-by-step guide on how to change code on schlage lock to easily complete this step.
Smart Deadbolt Reset (Encode, Sense)
- Slide off the back battery cover.
- Press and hold the small, black reset button to the right of the thumbturn for 10 seconds.
- The LED indicator will flash red. Release the button, and allow the lock to run its self-calibration cycle.
Frequently Asked Questions
Can I key all the different Schlage locks in my home to use a single key?
Yes, this is easily achieved through professional rekeying locks services. If your Schlage lock cylinders share the same keyway profile, such as the standard Obverse “C” keyway, our technicians can configure them on-site to operate using a single master key.
How do I secure my sliding backyard doors using Schlage hardware?
Learning how to secure patio doors requires heavy-duty auxiliary locks. Standard deadbolts cannot secure sliding tracks, but auxiliary pin locks and heavy-duty latching bars prevent intruders from lifting the sliding panel out of its frame.
Why should I hire a professional locksmith to install my Schlage locks?
Hiring a certified residential locksmith ensures that door preparation, backset adjustments, and alignment are handled precisely. Correct physical installation prevents motorized smart locks from binding, significantly extending battery life and preserving your manufacturer warranty.
Master Programming — Activating and Troubleshooting Schlage Auto-Lock
Leaving a door unlocked is a significant security vulnerability, but an auto door lock not working can be highly frustrating. On mechanical keypad locks like the FE595, “Flex-Lock” allows you to toggle manual or automatic locking. Turning the interior thumbturn to the horizontal position activates auto-locking (relocking after five seconds), while leaving it vertical keeps the door unlocked.
On smart deadbolts, auto-locking can be adjusted via the Schlage Home app, or toggled on the keypad:
$$text{Press Schlage Button} rightarrow text{Enter 6-Digit Programming Code} rightarrow text{Press “9”}$$
If automatic locking fails, verify that the door is closing completely without latch resistance, as even minor frame shifting can bind the bolt and trigger motor errors.
