When a commercial electric door strike fails, it threatens both the flow of your business and your building’s security. Facility managers face an immediate fork in the road: do you pay $500+ for a complete assembly replacement, or do you attempt to diagnose and repair the internal components? To make the right decision, you must first understand how do electric strikes work under real-world conditions.
Repairing vs. Replacing Failed Electric Strike Components: A Field Guide
Published: Jul 17, 2026

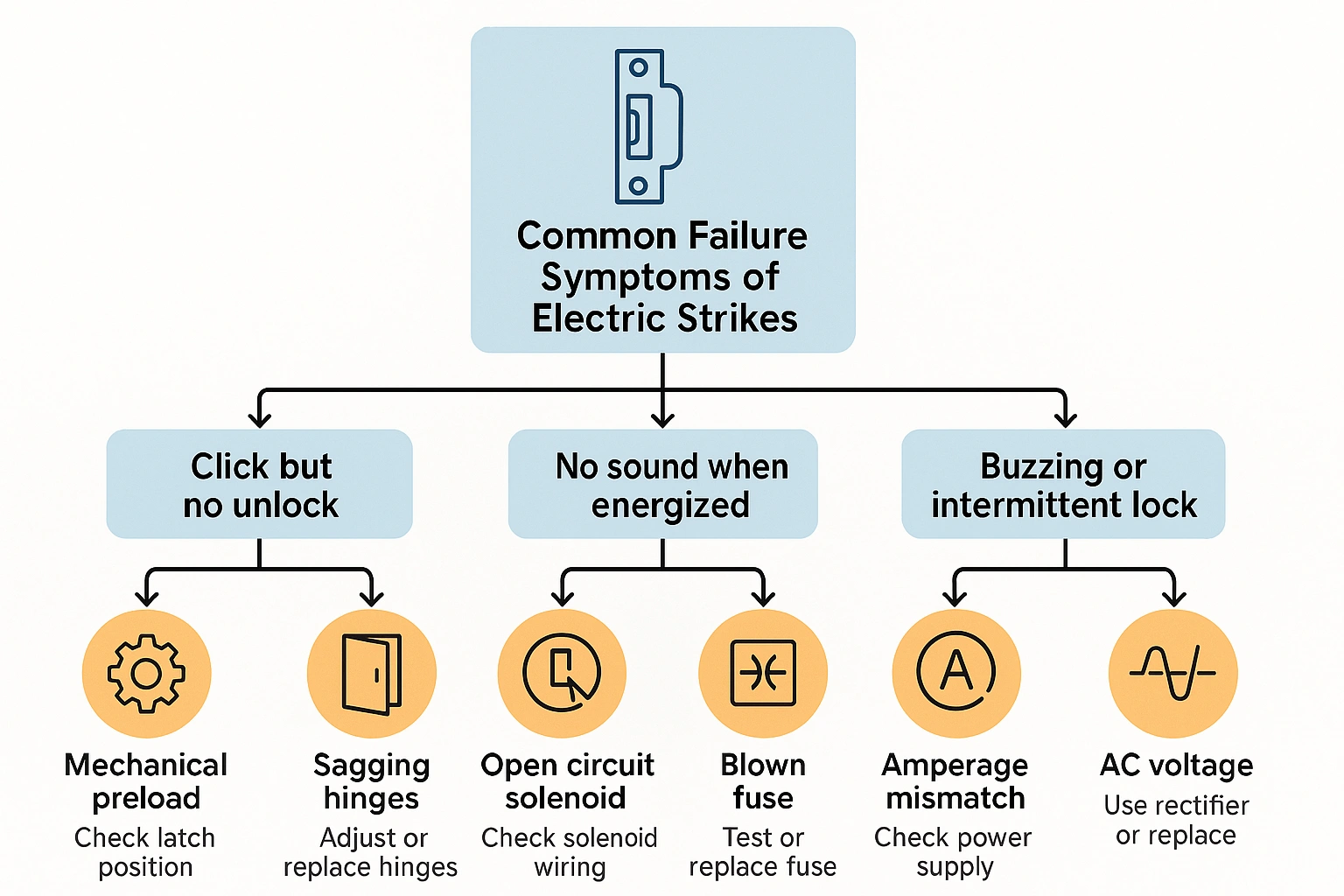

The Electric Strike Diagnostic Flowchart
Before taking a screwdriver to your strike plate, you must systematically isolate mechanical issues from electrical faults.
- Symptom A: Click but no unlock. This is highly indicative of a mechanical preload issue. Door sagging, worn weatherstripping, or warped frames put constant lateral pressure on the strike keeper, trapping the latch mechanically.
- Symptom B: Complete silence when energized. This points directly to an electrical failure—either a blown access control panel fuse, a severe voltage drop over long wire runs, or a dead internal solenoid.
- Symptom C: Erratic buzzing or weak latch release. This usually stems from an amperage mismatch or feeding raw AC voltage into a DC-rated continuous-duty unit.
Deep-Dive: Solenoid Testing & Component Repair
The solenoid is the magnetic heart of any electronic locking device. When it burns out, the strike goes completely silent.

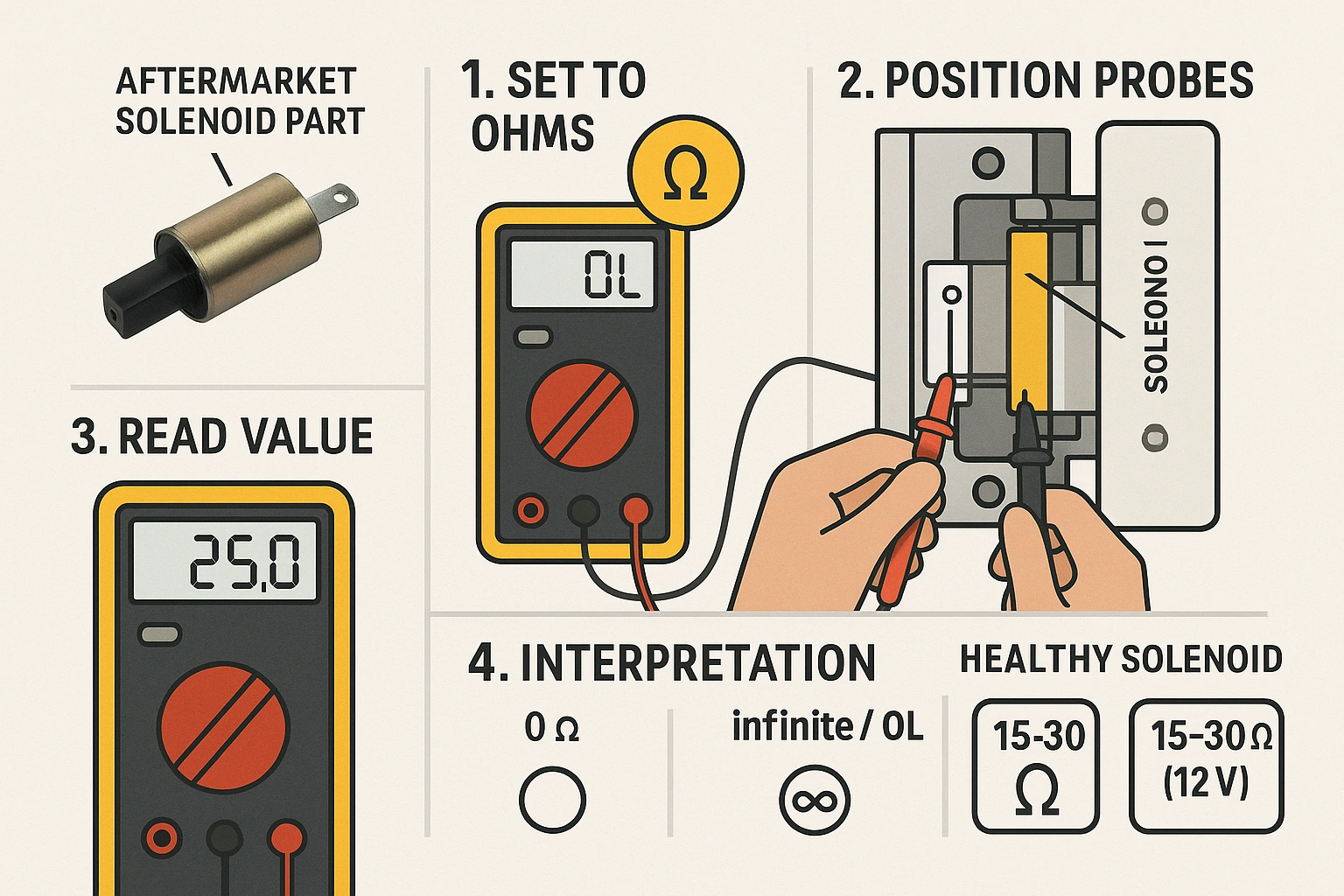

To diagnose the solenoid, set a digital multimeter (DMM) to Ohms ($Omega$) and touch the probes directly to the solenoid wire leads:
- 12V DC Solenoid: A healthy coil displays 15 to 30 Ohms.
- 24V DC Solenoid: A healthy coil displays 60 to 120 Ohms.
- Shorted Coil (0 Ohms): High heat has melted the protective copper wire insulation inside, causing a short circuit.
- Open Circuit (Infinite / OL): The internal coil wire has snapped, breaking the circuit entirely.
The AC Duty Cycle Hazard
Many installations use AC transformers to produce the familiar buzzing sound during unlocking. However, AC strikes are strictly intermittent-duty. Keeping them energized for more than 60 to 90 seconds will cause thermal overload, melting the internal coil insulation. If your door requires continuous unlocking (fail-safe mode for daytime business hours), you must transition to a DC-powered silent strike or install a separate electronic piezo buzzer wired in parallel.
Mechanical Failures: Spring Tension & Physical Orientation
Mechanical components degrade under high cycle counts. When internal return springs snap or lose tension, the keeper will flop open or fail to reset, compromising the security of the opening.
When repairing dual-tension springs, mind the physical orientation. In high-end commercial strikes, gravity dictates spring mechanics. If a strike is installed upside-down with the keeper on the bottom, gravity prevents standard internal return springs from working correctly. In these configurations, you must replace standard internal coil springs with specialized caps and pins to prevent return failure. Correcting this ensures your door lock maintenance routines yield long-term reliability.
The Executive Decision: Rebuild vs. Replace
Should you buy aftermarket internal parts or replace the whole unit? Let’s look at the operational reality:
- Cost vs. Effort: While a $20 replacement solenoid or aftermarket spring seems attractive compared to a $500 Grade 1 strike, field repairs are highly delicate. Major manufacturers like HES do not sell official repair parts, meaning you must rely on aftermarket components or “donor” strikes.
- The UL Liability Trap: Opening an electric strike’s casing to perform field repairs instantly voids its UL 10C (Fire Rating) and CAN4-S104 listings. In commercial facilities, using non-certified locking hardware on fire doors creates a catastrophic liability risk that insurer policies will not cover.
- Warranty Protection: Premium Grade 1 strikes often carry 5-year warranties. Breaking the factory seal to perform a component repair voids this warranty entirely.
If you’re dealing with standard non-rated interior doors, a simple component swap might work temporarily, but fire-rated doors always demand complete certified unit replacement by a professional.
Frequently Asked Questions
Can I buy official HES repair parts?
No. HES does not sell individual internal replacement parts. To repair them, you must use high-quality aftermarket equivalents or salvage parts from matching donor strikes.
Why is my electric door strike getting extremely hot to the touch?
This occurs when an intermittent-duty AC strike is fed continuous voltage, or when a 12V strike is mistakenly wired into a 24V power supply. Overvoltage rapidly overheats and destroys the coil.
How do I troubleshoot a malfunctioning latch bolt monitoring (LBM) switch?
Use your DMM to test for continuity (Normally Open/Normally Closed states) while manually depressing the keeper. If the switch fails to toggle or reads high resistance when closed, the internal micro-switch needs replacement or realignment.
