Master Guide to Garage Door Wiring and Security

Published: Aug 27, 2026

Upgrading a garage from a basic vehicle storage area into a highly functional workshop, accessory dwelling, or smart utility space is a highly rewarding project. However, planning this transformation exposes a major gap in traditional home improvement resources. Electricians and plumbers treat these trades as entirely isolated systems, leaving homeowners without a cohesive strategy.

When designing a modern garage, dry high-voltage lines, smart home integrations, and wet utility areas must work in harmony. This guide provides a trade-integrated master planning layout to help you evaluate your electrical and plumbing requirements, manage safety hazards, and decide when to call a certified professional.

The Garage Power Audit: Sizing Your Needs

Before mounting electrical boxes, you must calculate your cumulative electrical demand. Standard household garages often share a single 15-amp circuit with outdoor lighting, which is insufficient for heavy-duty power tools, heating, cooling, or electric vehicle (EV) charging.

To determine if your existing main electrical panel can support your upgrades, list the amp draws of your intended equipment:

Table Saw / Dust Collector: 15–20 Amps (120V/240V)
Mini-Split HVAC Unit: 15–20 Amps (240V)
Level 2 EV Charger: 30–50 Amps (240V)
Lighting and Smart Tech: 3–5 Amps (120V)

If your simultaneous load exceeds 40 Amps, installing a dedicated 60-amp or 100-amp subpanel is the most efficient way to future-proof your space. While planning these upgrades, remember that a fully functional garage is only as secure as its entry points. If you are adding valuable tools or equipment, consider implementing budget-friendly home safety measures to protect your investment.

Step-by-Step Wiring Multiple Outlets in Parallel

For garage workshops, running multiple receptacles on a single branch circuit is standard practice. However, the method of wiring these outlets is critical for safety and electrical stability. You must wire your receptacles in parallel (pigtailing) rather than in series (daisy-chaining).

With parallel pigtailing, if one outlet fails or is damaged by a heavy tool load, downstream receptacles continue to receive power uninterrupted.

National Electrical Code (NEC) Compliance Mandates

NEC Section 210.8(A)(2): All 125V through 250V single-phase receptacles installed in garages must have Ground Fault Circuit Interrupter (GFCI) protection. Heavy machinery and EV chargers are no longer exempt.
NEC Section 210.11(C)(4): At least one dedicated 120V, 20-amp branch circuit must supply only garage receptacles. Outdoor outlets, lighting, and garage door openers must not share this circuit.

To ensure safety, place your outlets 48 inches off the floor (the “4-foot rule”) to keep cords clear of workbenches and raw materials.

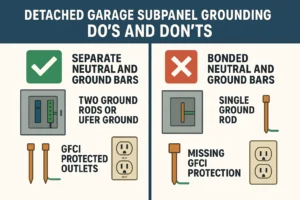

Detached Garage Wiring: Grounding & Code Checklist

Wiring a detached garage requires careful attention to grounding. Connecting your home panel to a detached structure without proper separation can create dangerous loop currents.

Keep these essential grounding rules in mind:

Isolate Neutrals and Grounds: In your detached subpanel, the neutral bus bar must remain completely isolated from the ground bus bar and the panel enclosure.
Establish a Grounding Electrode System: You must drive two 8-foot copper ground rods into the earth, spaced at least 6 feet apart, or bond to the foundation’s rebar (a Ufer ground).
Four-Wire Feed: Always run a four-wire line (Hot, Hot, Neutral, Ground) from your main panel to the detached subpanel.

While upgrading your garage’s infrastructure, consider physical security. Ensure you know how to lock a garage door securely or learn how to lock garage door from inside to protect your new electrical setup.

Adding a Utility Sink to Your Garage

A utility sink adds significant convenience to any garage workshop, but draining wastewater from an unplumbed space presents unique challenges. Choosing the right drainage method depends on your existing layout and budget.

The Three Drainage Pathways

The Wet-Wall Tie-In: If your garage shares a wall with a home laundry room or bathroom, you can tap directly into the existing drain lines. Materials cost between $200 and $500, requiring 4 to 6 hours of labor.
The Graywater Pump System: If your sink is located far from your home’s main stack, gravity draining may not be possible. An automatic graywater pump can pump wastewater vertically or horizontally to your home’s drainage system.
The Self-Contained “Dry Utility” System: For detached garages where trenching lines is impractical, a gravity-fed freshwater jug paired with a sealed, under-sink graywater collection bucket provides a functional, non-plumbed solution.

Frequently Asked Questions

Can I run my garage subpanel off a 120V circuit?

No. A subpanel requires a 120V/240V split-phase supply (using two hot wires, one neutral, and one ground) to distribute power safely and run 240V equipment like EV chargers or large compressors.

Is a GFCI breaker better than a GFCI outlet for a garage?

Both offer equivalent protection. A GFCI breaker protects the entire circuit from the panel, while a GFCI outlet protects everything downstream from that specific receptacle. Breakers are more convenient but more expensive.

How do I keep my garage plumbing from freezing in winter?

Insulate all exposed pipes with foam sleeves. If you live in a cold climate, install a thermostatically controlled mini-split or unit heater to keep the garage temperature above freezing.

Do I need a permit to add outlets or a sink to my garage?

Yes, most municipal building departments require permits for adding new electrical circuits, subpanels, or tying into existing sewer lines. Always check local regulations before beginning construction.

Security, Safety, and Choosing Your Path

Integrating high-voltage electrical, plumbing, and modern entry systems requires careful planning. While some aspects of a garage renovation make great DIY projects, electrical subpanels and structural plumbing require precise execution to avoid code violations, insurance issues, or safety hazards.

This applies to security installations as well. While simple upgrades can be handled over a weekend, complex systems benefit from professional integration. Knowing the potential diy security system disadvantages helps you decide when to consult a specialist. If you plan to install advanced access control or need professional lock repair and installation to protect your newly renovated space, working with a certified expert ensures your garage remains both highly functional and secure.
