Understanding Fail-Safe vs. Fail-Secure Troubleshooting Differences

Published: Jul 20, 2026

When an electrified door fails to operate as intended, troubleshooting starts with a fundamental question: Is your security system designed to prioritize life safety or secure physical assets? Furthermore, we must instantly resolve a common diagnostic mix-up: Are you troubleshooting a commercial building access control door, or are you locked out of a personal document safe?

If your issue is a physical security container (like a gun safe) where the door is wide open but the locking bolts are extended and won’t retract, jump directly for specialized mechanical safe override steps. Otherwise, let’s explore the core electrical, mechanical, and regulatory differences of commercial door hardware.

Access Control Basics — Fail-Safe vs. Fail-Secure Demystified

Understanding the baseline state of your locking hardware is essential before touching a multimeter.

Fail-Safe (Power-to-Lock / Fail-Open): These systems require continuous electricity to remain locked. If power fails, the lock de-energizes, allowing the door to unlock naturally for emergency egress. The most common fail-safe device is what is a mag lock, which relies on an active magnetic field.
Fail-Secure (Power-to-Unlock / Fail-Locked): These systems require electrical current to unlock. If power is lost, the door remains mechanically locked from the outside (while still allowing mechanical egress from the inside).

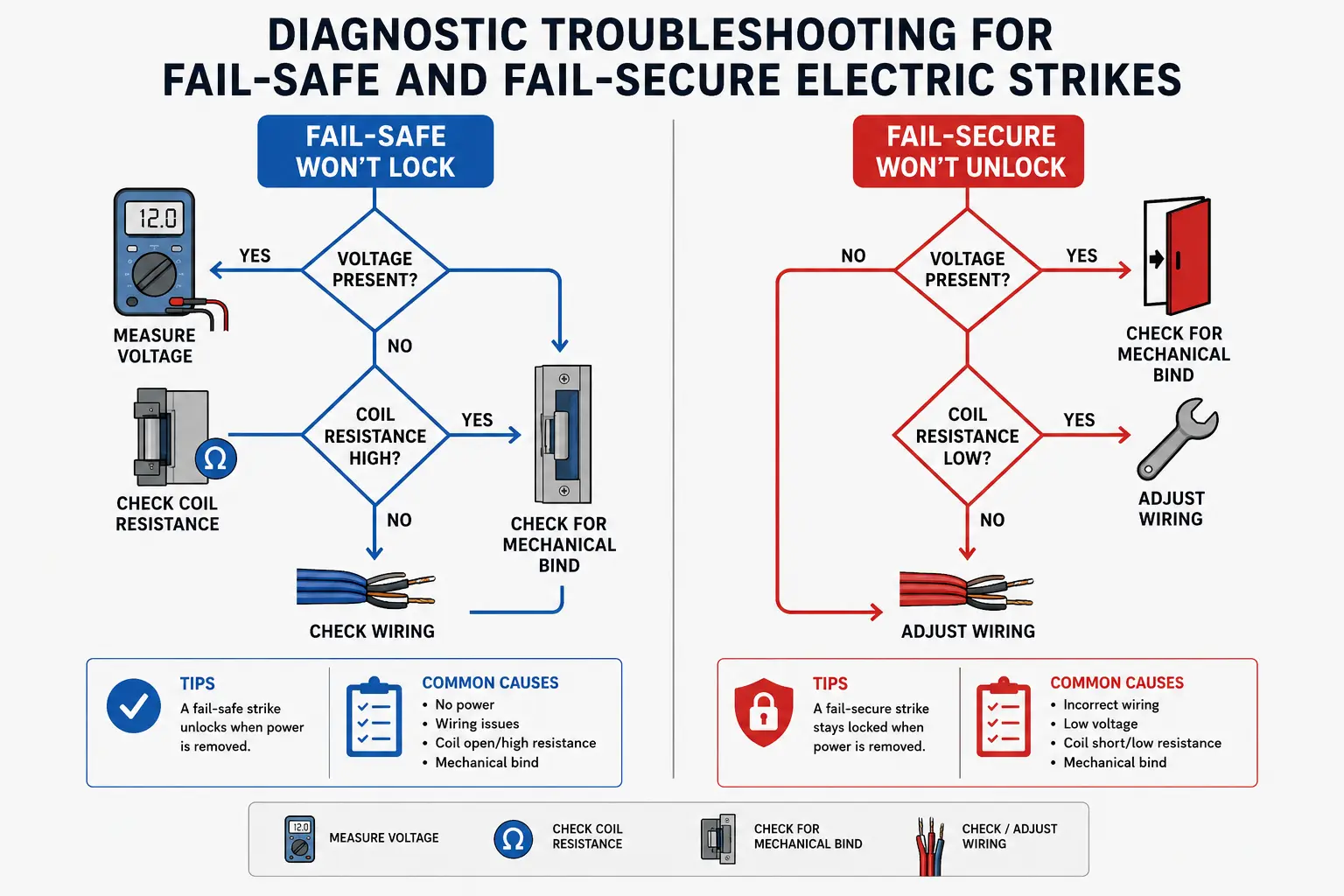

The Troubleshooting Pathway for Access Control Hardware

If you have an electronic door lock not working, your troubleshooting path depends entirely on whether the device is fail-safe or fail-secure.

Diagnostic Pathway A: The Fail-Safe Lock “Won’t Lock”

Because fail-safe locks require continuous current, failure to lock usually points to an electrical interruption.

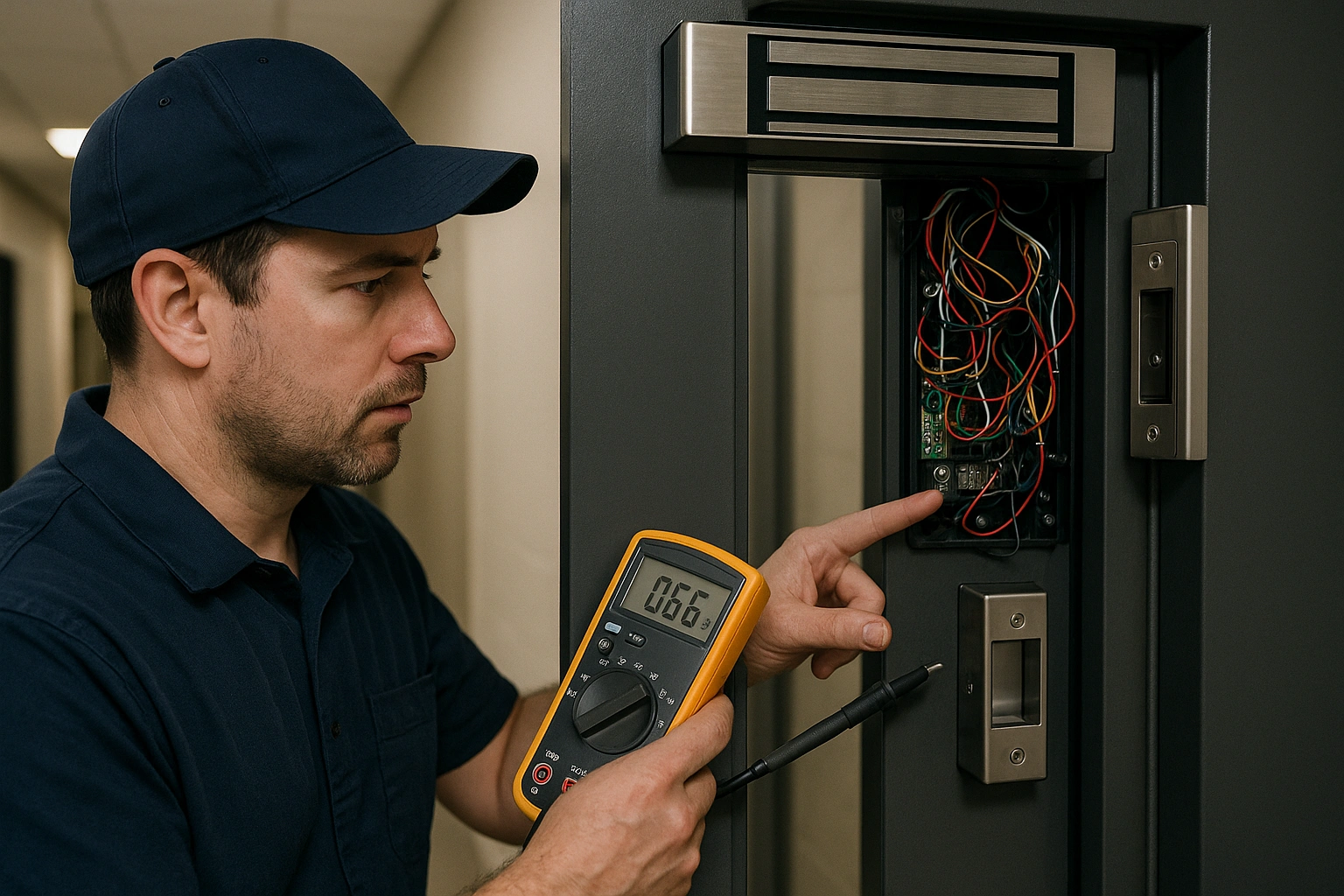

Voltage Check: Measure the DC voltage at the lock terminals with a digital multimeter.
No Voltage (0V): The issue is upstream. Test the access control panel relay, check for blown power supply fuses, or verify if the fire alarm emergency shutoff relay has tripped.
Correct Voltage Present: If the lock has nominal power (typically 12VDC or 24VDC) but fails to lock, the internal solenoid or coil has burned out. Verify this by running a resistance (Ohm) check. If the multimeter reads infinite ohms ($infty$), the coil is open, and the lock must be replaced.

Diagnostic Pathway B: The Fail-Secure Lock “Won’t Unlock”

Fail-secure hardware is highly susceptible to physical and mechanical issues.

Check for Door Preload (Binding): If a door closer is set too tight or the weatherstripping is warped, pressure pushes the latch bolt hard against the electric strike keeper. Push firmly against the door while triggering the lock. If it clicks open under pressure, you must adjust the door closer or strike depth to eliminate the mechanical bind.
Voltage Drop Test: If you hear a faint hum but the lock won’t release, check the voltage during the trigger command. A voltage drop below 90% of the rated capacity indicates that the power cable run is too long or the wire gauge is too thin to deliver sufficient current.

The Truth About "Fail-Secure Magnetic Locks"

A common industry misconception is the request for a “fail-secure magnetic lock.” In physical engineering, direct-pull magnetic locks are intrinsically fail-safe. Without constant electric current, there is no magnetic field to hold the plates together.

If you require robust fail-secure protection alongside magnetic hardware, you must use electromechanical mortise locks, shear locks (which use mechanical pins in tandem with magnetic alignment), or pair your maglock with an uninterruptible power supply (UPS) backup battery. Keep in mind that knowing how to open magnetic door lock during a total power failure is a critical life safety protocol required by code.

Building and Fire Code Masterclass

Lock system design isn’t just about security; it is strictly regulated by fire codes.

NFPA 80 (Fire Doors): Fire-rated doors must remain latched during an emergency to block fire and smoke spread. Consequently, fail-safe electric strikes are strictly prohibited on fire doors, because they unlatch when power is cut. You must use fail-secure strikes that keep the latch locked.

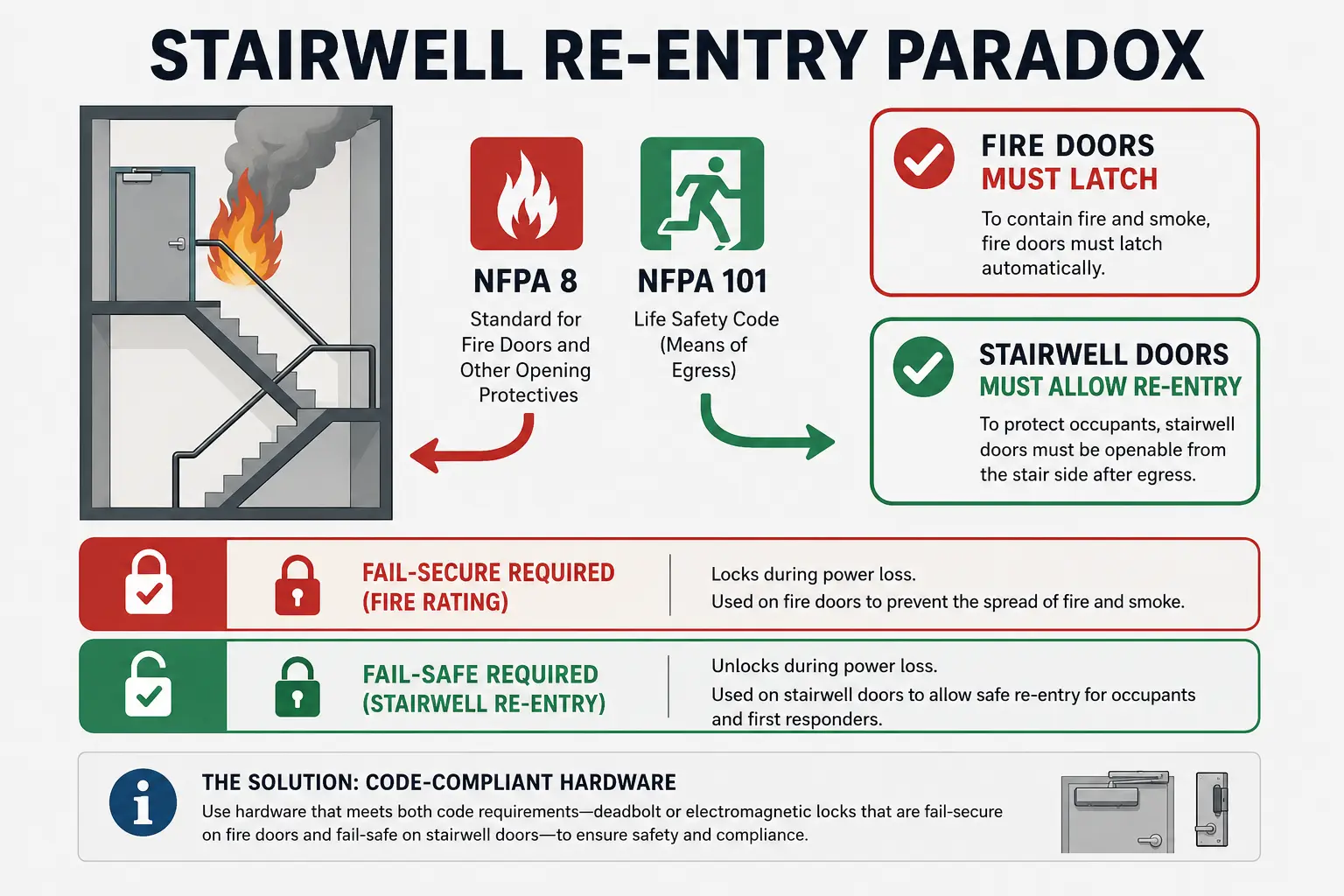

NFPA 101 (Life Safety Code – Stairwell Re-entry): During a fire, occupants must be able to escape down a stairwell and re-enter a different floor if a lower exit is blocked.
The Solution: To satisfy both NFPA 80 and NFPA 101 on a stairwell door, you cannot use an electric strike. Instead, install a fail-safe electromechanical lock or a keypad access lock for panic bars. These devices keep the latch bolt projected mechanically (meeting fire code door locks standards) but release the outside lever mechanically when power is cut, permitting occupant re-entry.

FAQ

Can I wire a continuous-duty lock as fail-safe?

Yes, but you must ensure the solenoid is rated for continuous duty. Wiring an intermittent-duty solenoid for fail-safe operation will cause rapid overheating and coil failure within days.

Do fail-safe locks require a backup battery?

Generally, no. Since fail-safe locks default to an unlocked state when power is lost, adding battery backup actually defeats their automatic egress capability unless integrated with fire alarm override relays.

How does the basic troubleshooting workflow differ between fail-safe and fail-secure locks?

For Fail-Safe (e.g., Maglocks): If the door won’t lock, you are troubleshooting a loss of power or an open circuit. You must verify that constant voltage (typically 12V or 24V DC) is reaching the lock and that no emergency egress devices (like a request-to-exit PIR or fire alarm relay) are actively breaking the circuit.
For Fail-Secure (e.g., Electric Strikes): If the door won’t unlock, you are troubleshooting a failure to deliver power or a mechanical bind. You must check if the access control panel is sending the voltage spike upon a valid badge read, and verify that mechanical pre-load (pressure against the door latch) isn’t jamming the strike mechanism.

What are the risks of accidentally swapping fail-safe and fail-secure hardware during replacement?

Swapping these devices without reconfiguring the control panel’s relay logic causes immediate operational failures:

Installing Fail-Secure on a Fail-Safe Circuit: The door will remain permanently unlocked during normal operation. When a user presents a badge, power will cut, and the door will lock them out (or in).
Life Safety Violation: Installing a fail-secure lock on an emergency egress door without mechanical free-egress (like a crash bar) violates building and fire codes (NFPA 101), trapping occupants inside during a power failure or building fire.

Physical Safe Troubleshooting (The Semantic Capture)

If electronic safe won’t open because the locking bolts are stuck in the extended position while the door is open, you are dealing with a mechanical jam or detent issue.

Locate the Detent Plunger: Open safe doors have a small spring-loaded button or lever along the inner edge. Press this detent manually to fool the lock into thinking the door is shut, then enter your code to retract the bolts.
Solenoid Tap: If the keypad registers your code but the bolts won’t budge, the internal relocker solenoid may be stuck. Enter your code and gently tap the door face near the keypad with a rubber mallet to free the solenoid.
9V Battery Jump-Start: If your safe keypad has external contacts, press a fresh 9V battery firmly against them while entering your code to bypass dead internal batteries. If these steps fail, contact a professional safe locksmith near me to avoid damaging your container. For brand-specific safe problems, consult our guide on sentry safe combination reset.
