The Definitive Guide to Integrating Access Control with Panic Bars
Published: Jun 11, 2026
You’ve seen them a thousand times: the push bars on the back doors of restaurants, schools, and offices. They’re the unsung heroes of building safety, designed for one critical purpose—fast, easy exit in an emergency. But here’s the million-dollar question for any facility manager or business owner: How do you secure that same door against unauthorized entry without compromising its life-saving exit function?
This is where the worlds of access control and life safety collide. It’s a challenge that many get wrong, often by installing the wrong hardware and unknowingly creating a serious safety hazard. The good news is that you can have both robust security and guaranteed safety.
This guide is designed to be your trusted resource. We’ll bridge the gap between complex building codes and practical, real-world installation. By the end, you’ll understand how to secure your entrances while guaranteeing your exits are always ready for an emergency.
Foundation: The Anatomy of an Electrified Exit Door
Before diving into the “how,” let’s get familiar with the “what.” An electrified exit door isn’t just one piece of hardware; it’s a system of components working together. Think of it as a team where each player has a specific job.

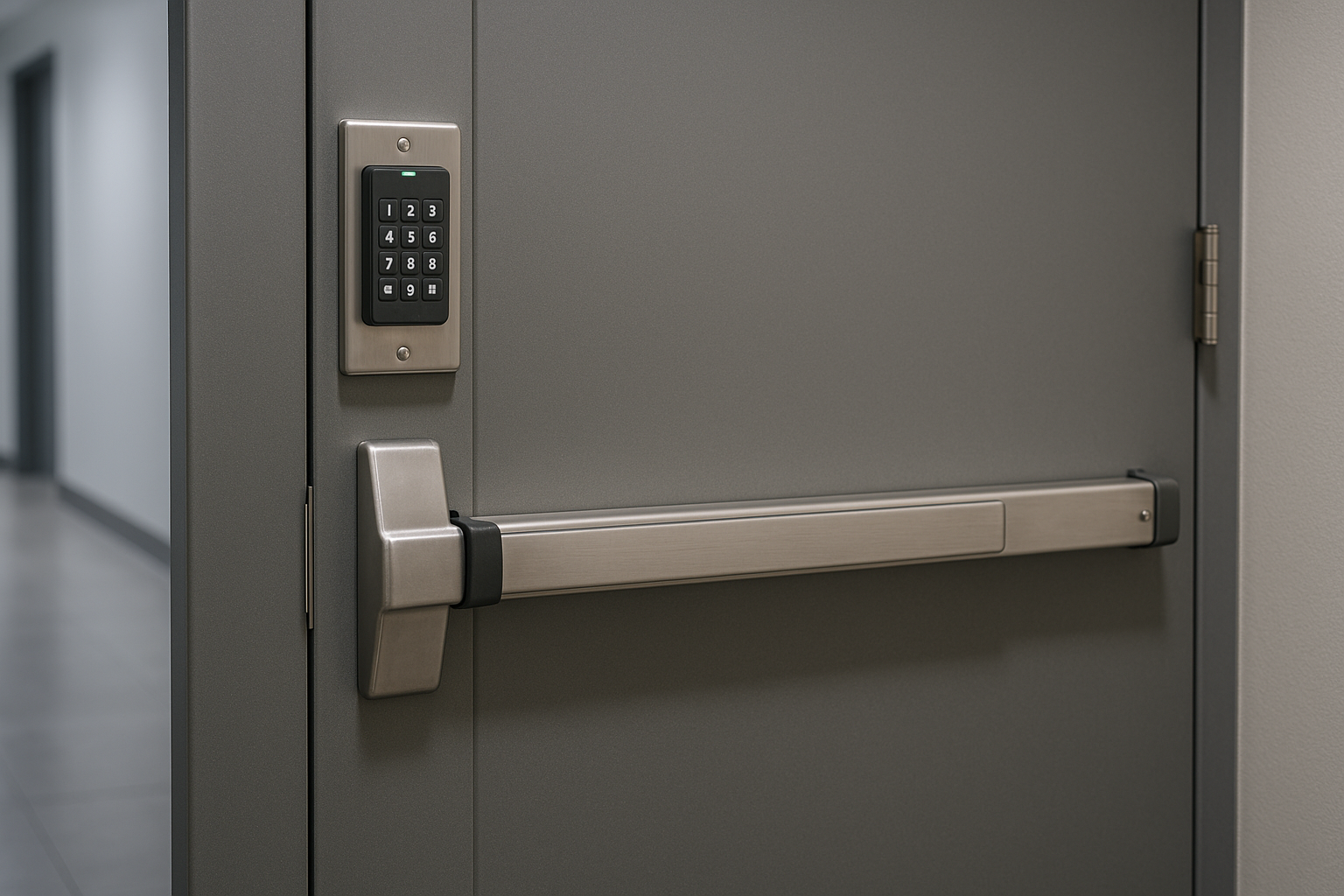

The Push Bar (or Panic Bar): This is the device on the inside of the door. Its official name is an “exit device.” Its sole purpose is to unlatch the door from the inside to allow egress, no questions asked. A key feature of some panic bars is the ability for authorized staff to perform a function called dogging a door, which retracts the latch to allow push/pull operation during business hours.
The External Trim: This is the hardware on the outside of the door—typically a lever handle or a blank plate. In a modern access control system, this is where the “brains” for entry are located. It could be a simple key cylinder, a keypad, a card reader, or a combination of all three.
The Electrification Method: This is the secret sauce that connects the external trim’s “brains” to the door’s locking mechanism. It’s the component that decides whether the outside lever will open the door when someone presents a valid credential.
Understanding these three parts is the first step. Now, let’s explore how they can be combined to create a secure and compliant system.
Building: How to Choose the Right Hardware (The 3 Key Methods)
Electrifying a push bar isn’t a one-size-fits-all solution. There are several methods, each with its own pros, cons, and ideal applications. The three most common and code-compliant methods are electrified trim, electric latch retraction, and using an electric strike.
Electrified Trim (or Lever): In this setup, the outside lever is electronically controlled. Most of the time, the lever is “limp” and won’t retract the latch. When a valid credential (card, code, fob) is presented, a clutch inside the trim engages, allowing the lever to be turned to open the door. The push bar on the inside always works, regardless of the trim’s status.
Best for: Most standard applications. It’s a reliable and widely accepted method for adding access control.
Electric Latch Retraction (ELR): This is a feature built into the push bar itself. When power is applied via an access control system, the latch on the push bar is physically pulled back into the device. This allows the door to be used as a simple “push/pull” door. When power is removed, the latch extends again, securing the door.
Best for: High-traffic entrances and doors that need to be automatically unlocked on a schedule. It provides the quietest electronic operation.
Electric Strike: An electric door strike replaces the standard metal plate in the door frame. When energized (or de-energized, depending on the type), it allows the latch from the push bar to be pulled through the frame, opening the door.
Best for: Situations where modifying the door or the panic hardware is difficult. It’s installed in the frame, not the door.
The Most Important Concept: Fail-Safe vs. Fail-Secure
This is the one topic where confusion can lead to serious compliance issues. It determines what the lock does when it loses power, like during a fire or power outage.
Fail-Secure: When power is lost, the lock remains locked. The outside lever is secure. This is the most common type for general security, as it keeps the building secure during a power failure. Crucially, the push bar on the inside still allows free exit.
Fail-Safe: When power is lost, the lock becomes unlocked. The outside lever is now unlocked. This is used for specific interior doors in a path of egress where people must be able to get through in an emergency, even if the access control system fails.
Here’s a simple way to think about it:
Mode
When Power is Lost…
Use Case Example
Fail-Secure
Lock stays locked (from outside)
Perimeter doors, IT closets. Security is the priority.
Fail-Safe
Lock becomes unlocked (from outside)
Stairwell doors leading to an exit. Life safety is the priority.
Choosing the right mode is not a suggestion; it’s a requirement dictated by life safety codes.
Key Takeaways
* An electrified exit door has three parts: the push bar, the external trim, and the electrification method. * The most common methods are Electrified Trim, Electric Latch Retraction, and Electric Strikes. * Fail-Secure locks during a power loss; Fail-Safe unlocks. Your choice is dictated by building codes and the door’s purpose.
Mastery: The Code Compliance Deep Dive (NFPA & OSHA Explained)
This is where we separate the professionals from the hobbyists. Anyone can bolt hardware to a door, but ensuring it meets life safety codes is what truly matters. The two main authorities here are the National Fire Protection Association (NFPA) and the Occupational Safety and Health Administration (OSHA).
While their official documents are dense, their core principles for exit doors are straightforward.
Here are the non-negotiable rules based on codes like NFPA 101 (Life Safety Code) and OSHA 1910.36:
Single-Motion Egress: An occupant must be able to unlock and open the door with a single motion. For panic hardware, that motion is pushing the bar. You cannot require someone to turn a deadbolt and then push the bar.
No Special Knowledge Required: Exiting the building cannot require any special keys, tools, or knowledge of the locking system. If you can reach the push bar, you can get out.
Fire Alarm Integration: In most commercial buildings, access control on designated fire exit doors must be tied to the fire alarm system. When the fire alarm sounds, the system must automatically unlock the door, allowing free entry for emergency responders. This usually requires a fail-safe setup or an ELR device that retracts on alarm.
No Unapproved Hardware: You cannot add slide bolts, chains, or unlisted magnetic locks to an exit door. Doing so can trap people inside during an emergency.
🚫 Compliance Trap: Never use a standard magnetic lock as the primary lock on a designated egress path without proper, code-compliant release devices. Standard maglocks are almost always fail-secure and require a separate request-to-exit button and an emergency release button to be compliant. Without these, they can fail to release during a fire, violating the “single-motion” rule.
Action: Planning Your Installation (A Step-by-Step Framework)
Ready to put this knowledge to use? A successful project starts with a good plan. Don’t just buy a lock and hope it fits. Follow this framework to ensure your solution is secure, compliant, and right for your needs.
Assess Your Door:
What type of door is it (metal, wood, glass)?
What type of push bar is currently installed (e.g., Von Duprin, Adams Rite)? The brand and model are crucial for compatibility.
Is it a fire-rated door? If so, all new hardware must also be fire-rated.
What is its role? Is it a main entrance, a back exit, or an interior stairwell door?
Define Your Access Needs:
Who needs to get in? (Employees, delivery drivers, specific departments)
How will they get in? (Keypad code, swipe card, mobile phone)
Do you need to track who enters and when?
Do you need to set schedules for when the door is unlocked? Answering these questions will help you determine if you need a simple standalone lock or a full system level protection with software.
Select Compliant Hardware:
Based on your assessment, choose the right electrification method (trim, ELR, strike).
Confirm compatibility between your existing push bar and the new electronic hardware.
Verify the “fail-safe” or “fail-secure” requirement with your local fire marshal or a security professional.
Plan the Installation:
How will power get to the door? This often requires running low-voltage wiring.
Will it connect to the fire alarm system?
Who will perform the installation? This is not a simple DIY project; professional installation is highly recommended to ensure compliance.
Test, Test, Test:
After installation, test all functions. Does it unlock with a valid credential? Does it remain secure against invalid ones?
Most importantly, test the egress. Does the push bar work perfectly every time?
If connected to the fire alarm, test the automatic release function with the building’s alarm company.
By following this framework, you move from simply buying a product to engineering a complete security and life safety solution.
Your Next Step to a Safer, More Secure Facility
You’ve now learned the difference between security and safety, the anatomy of an electrified exit, and the critical codes that govern them. You’re no longer just a browser; you’re an informed decision-maker.
The next step is to take this knowledge and apply it to your own building. Walk your facility, look at your exit doors, and ask the questions from the planning framework.
If you’re ready to explore specific solutions or need a professional assessment, our team at Sure Lock & Key is here to help. With decades of experience across residential, commercial, and automotive security, we live and breathe this work. We can help you design a system that keeps your property secure while ensuring your people are always safe.
Frequently Asked Questions (FAQ)
Can I just put any keypad lock on my emergency exit door?
Absolutely not. A standard residential keypad deadbolt is not compliant. It violates the “single-motion egress” rule and is not designed for commercial use or integration with panic hardware. You must use hardware specifically designed for this application.
What does "single-motion egress" really mean in practice?
It means one fluid, downward or forward action releases the latch and allows the door to open. Pushing a panic bar is a perfect example. Having to turn a knob, flip a thumb-turn, and then push the door is three motions and is not compliant.
How do I know if my door needs to be fail-safe or fail-secure?
The general rule of thumb is that doors on the path to a final exit (like stairwell doors) are often fail-safe, while the final exit door itself is often fail-secure to maintain building security. However, this is a critical decision that should always be verified with your local Authority Having Jurisdiction (AHJ), like the fire marshal.
Is this something I can install myself?
While it may seem straightforward, the wiring, hardware compatibility, and code compliance aspects make this a job best left to professionals. A professional locksmith or security integrator understands the nuances of how do keyless entry door locks work in a commercial, code-compliant setting and can ensure the installation is safe and correct. They also know how to solve common issues, like how to reset a door code lock if programming goes wrong.
