How To Diagnose Mechanical And Alignment Faults of Electric Strikes

Published: Jul 29, 2026

When an electric strike fails to release, technicians and building owners often blame the electrical system. However, physical door geometry and mechanical alignment issues are the root causes of over 80% of field failures. For installers, separating electrical faults from mechanical friction is the key to winning the “war of warranty” and proving to building owners that structural door sag or HVAC air stack pressure is what is actually jamming the hardware.

Developing a systematic approach to physical diagnostics allows commercial integrators and facility managers to quickly resolve electric door strike problems and ensure secure, reliable operation.

Structural Geometry & Alignment (The Mechanics of Sag)

Structural shifting, wall settling, and heavy foot traffic inevitably cause doors to sag over time. Physics dictates that a minor 1/8-inch drop at the top hinge translates to a critical 1/4-inch drop at the strike plate. This vertical displacement directly compromises security.

When vertical alignment slips, it triggers the deadlatch security loophole. In a secure installation, the auxiliary deadlatch pin must remain compressed on the flat face of the strike keeper. When door sag occurs, this pin can slip directly into the strike cavity. Once the auxiliary pin falls into the cutout, the primary latch bolt can be easily bypassed from the outside using a simple shim tool.

Resolving a misaligned door lock does not require grinding down the strike plate. Instead, technicians should restore vertical door alignment by installing commercial hinge shims or using a hinge knuckling tool to adjust the hinges and pull the door back into square.

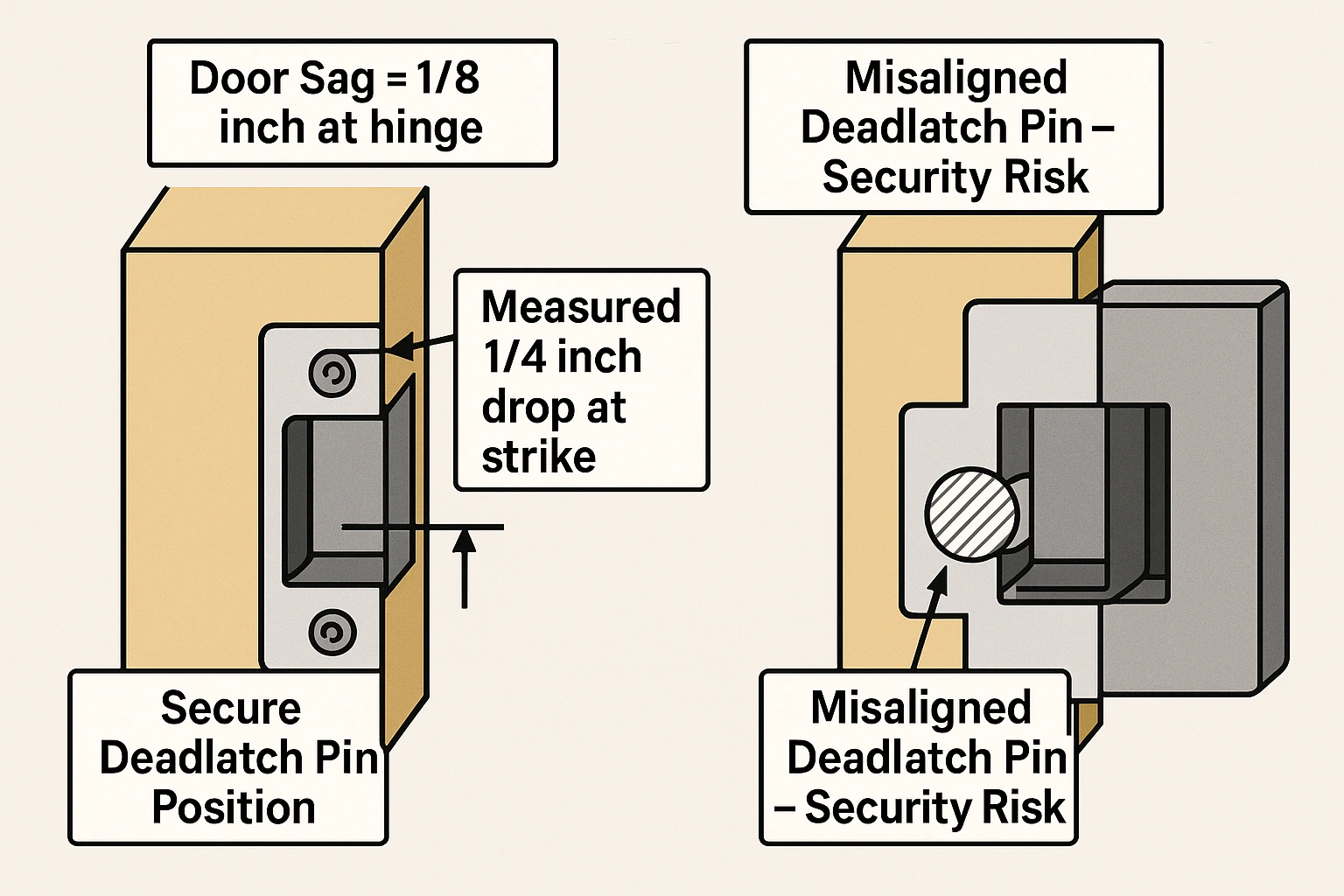

This diagram clarifies how even a small door sag can cause the auxiliary deadlatch pin to slip inside the electric strike cavity, creating a critical security vulnerability by allowing easy physical lock bypass. Correct hinge adjustment restores alignment, ensuring secure locking.

Mechanical Diagnostics (Preload, Friction, and Thermal Wear)

Preload is static pressure holding the latch bolt tightly against the keeper of the electric strike. It is commonly caused by heavy weatherstripping, warped wood doors, or HVAC stack pressure. Standard electric strikes struggle to release under side-loads as low as 2 to 5 lbs, causing the solenoid to bind.

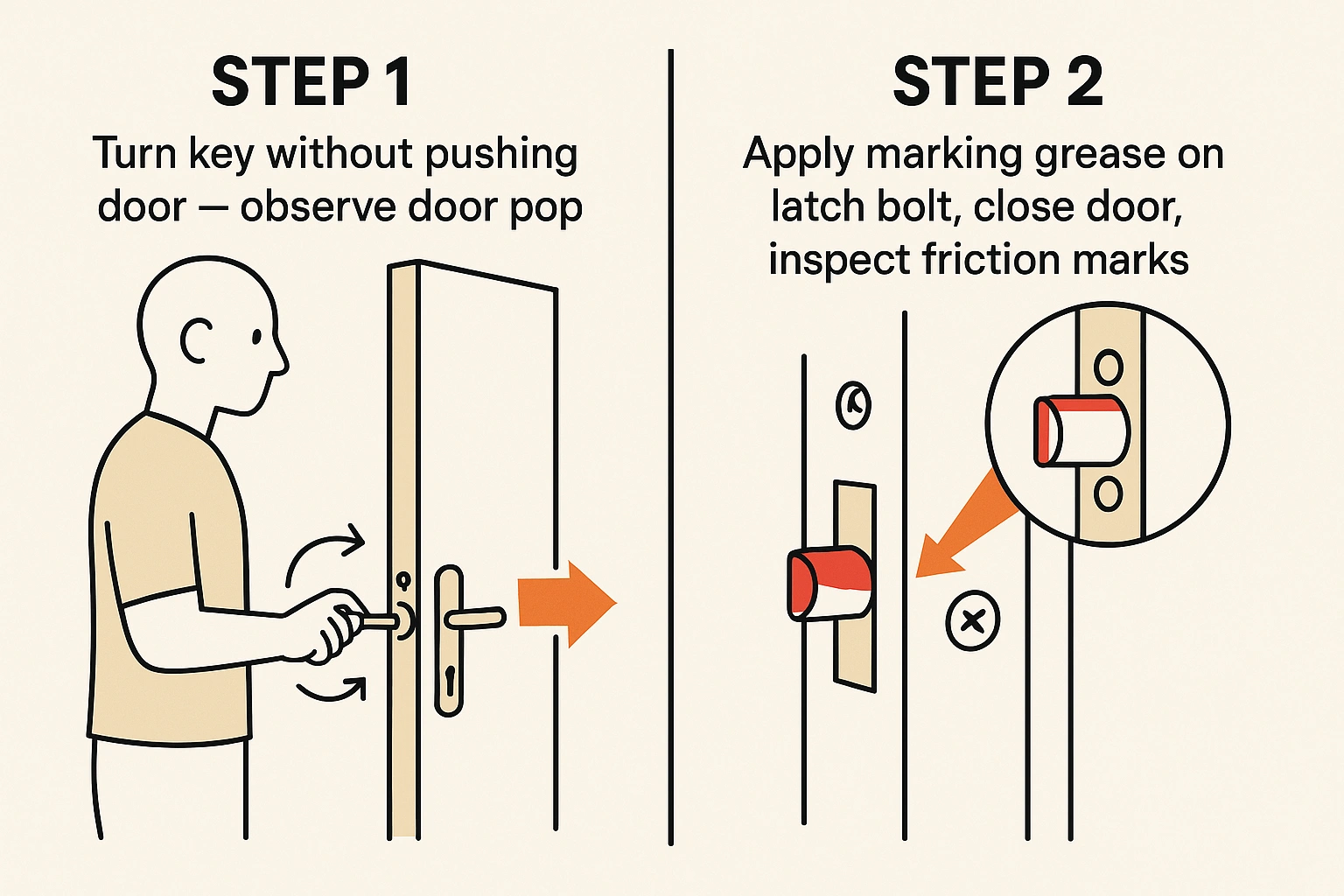

To diagnose this issue, run the “Turn-and-Pop” Diagnostic: turn the key or mechanical lever without pushing the door. If the door pops outward slightly, preload pressure is present. To find the exact friction point, use the “Marking Grease Test”: apply red marking grease to the latch bolt, close the door, and look for grease transfer on the strike keeper.

If preload is unavoidable, install preload-capable hardware (such as the Adams Rite Ultraline or HES 1500 series), which is engineered to release under side-load pressures up to 30 lbs. Furthermore, physical binding puts high thermal stress on continuous-duty solenoids (which draw approximately 240mA at 12VDC or 120mA at 24VDC). In fail-safe setups, constant power combined with physical binding leads to rapid heat buildup and coil burnout. Be sure to adjust door strike plate clearances to keep running temperatures within safe operational limits.

Double-Door Hager & Overlapping Configurations

Installing electric strikes on double doors without a central vertical mullion presents major physical alignment challenges. Without a fixed frame jamb, the strike must be mortised directly into the inactive leaf.

For these configurations, specialized hardware is required:

Hager 4911 / 4921: Designed to mount on the inactive leaf to capture cylindrical locks or mortise latches on the active leaf.
Von Duprin 1609: Specifically engineered to pair with rim exit devices, accommodating the unique latch pull clearances of panic hardware.

When installing a keypad access lock for panic bars, any flex in the inactive leaf will cause dynamic preload. If someone pushes on the inactive door, the latch of the active door binds inside the strike. Proper commercial door installation requires using door coordinators and flush bolts to anchor the inactive leaf securely, eliminating frame flex.

Mitigating Physical Abuse (Slam Mitigation)

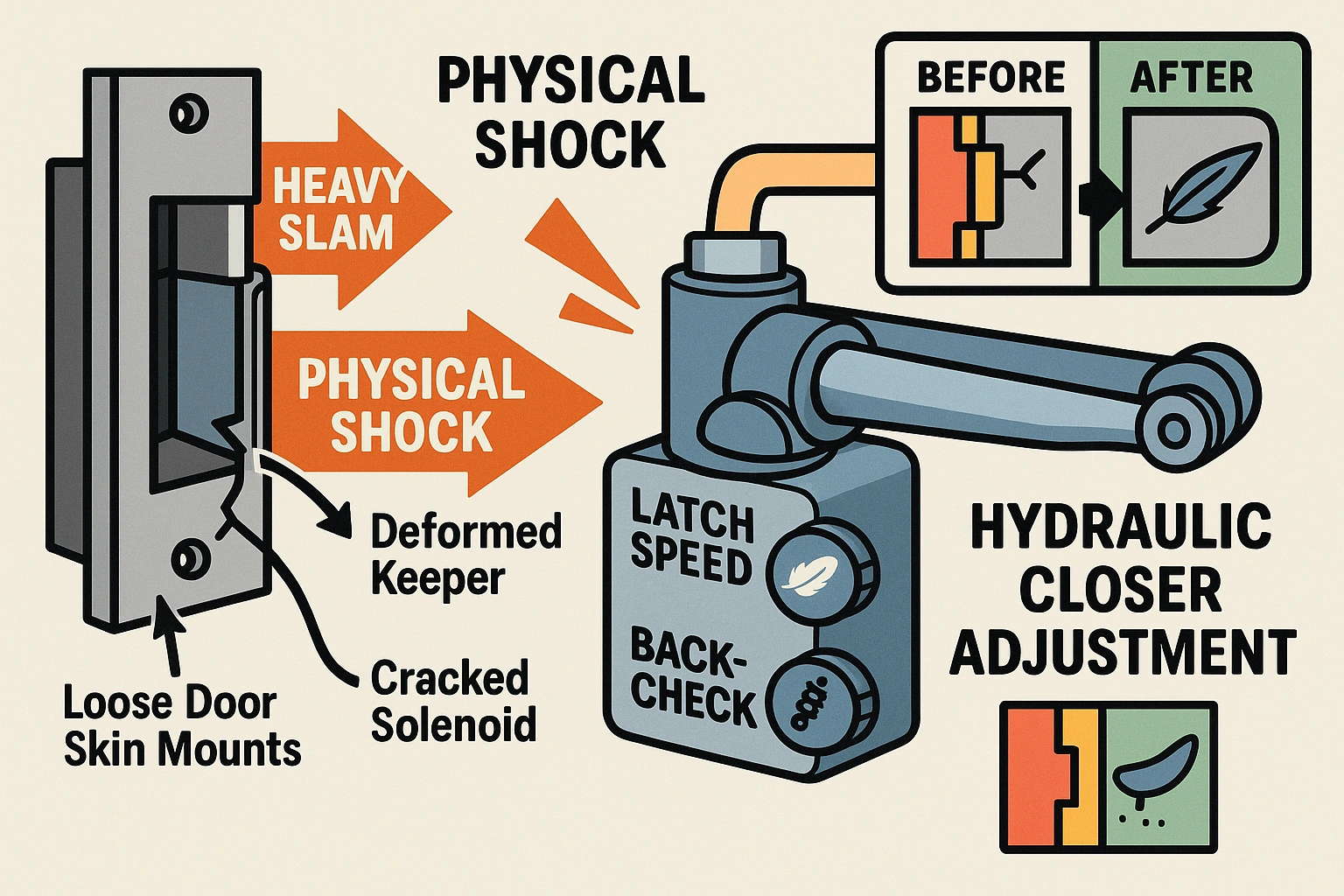

High-velocity closing forces—whether from wind or heavy-handed users—deliver hundreds of foot-pounds of energy directly onto the strike keeper. This physical shock deforms keeper axles, cracks solenoid brackets, and loosens mounting screws.

To protect your electrified hardware from slamming damage, you must properly adjust the building’s hydraulic door closer:

Adjust the Backcheck Valve: This controls the resistance during the opening swing, preventing the door from opening too quickly and damaging adjacent walls or hinges.
Tune the Latch Speed Valve: This controls the speed of the last few inches of closing. Set it to provide just enough force to latch the door securely without slamming.

Troubleshooting & Decision Criteria FAQ

Why does my electric strike buzz but fail to open?

Buzzing indicates that the solenoid coil is receiving power but is mechanically locked. This is almost always caused by preload pressure binding the keeper. Push the door inward slightly; if the lock releases, you need to adjust the strike alignment, frame silencers, or door closer latch speed.

How do I know if I need a fail-safe or fail-secure strike?

Fail-safe strikes require continuous power to stay locked (unlocking immediately if power fails). They are typically used on life-safety emergency exits. Fail-secure strikes require power to unlock, keeping the door secure during a power outage. They are preferred for high-security exterior perimeters.

Why does my strike get hot to the touch?

Continuous-duty strikes in fail-safe configurations generate heat because they are constantly energized. However, excessive heat is often caused by feeding an AC strike continuous DC voltage, or from mechanical binding that prevents the internal plunger from seating fully. This forces the coil to run at a higher draw, which can lead to premature failure.

Integration, Smart Control & Power Budgets

Integrating electric strikes with automatic operators or residential smart relays requires careful electrical coordination. While automatic door operators pull between 60W and 150W during active cycles, an electric strike runs on much less power. However, standard strikes can chatter or fail to release under load if they suffer from voltage drops. Always calculate your wire runs carefully to ensure the strike receives its full rated current.

For smart home retrofits, integrating a low-voltage electric strike (such as a delay door lock) with smart relay modules like the Ring Access Controller Pro requires a dedicated 12VDC or 24VDC power supply. Never power the strike directly from the smart relay’s signal terminal; instead, use a dry-contact relay configuration to switch external power safely to the strike coil.
