Demystifying Master Lock Combination Types and Reset Mechanisms

Published: Sep 14, 2026

When you are locked out of your locker, storage unit, or gate, the immediate panic can lead to hasty, expensive decisions. Before you reach for bolt cutters, understanding how your lock’s specific mechanism functions is crucial. In the physical security industry, “resetting” is not a one-size-fits-all process. Treating a multi-wheel security lock like a standard school locker padlock can lead to permanent mechanical failure.

Whether you need a quick residential fix or are looking to partner with a trusted 24 hour locksmith to upgrade your property’s physical security, knowing the science behind your locking mechanisms saves time and frustration. Let’s break down Master Lock’s primary mechanism families to identify your lock and find the precise pathway to resolve your lockout.

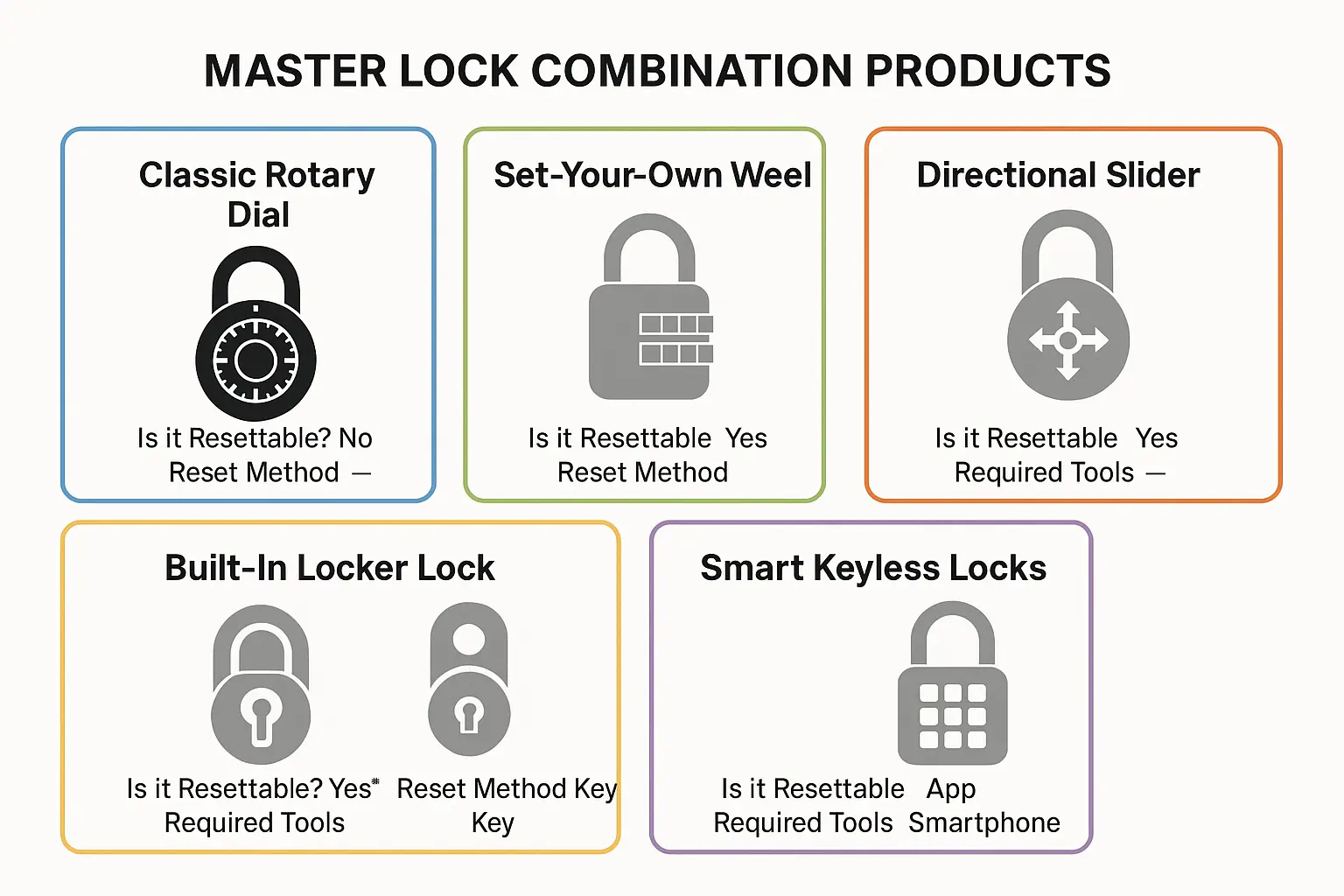

The Master Lock Category Identification Matrix

To determine the correct reset procedure, you must first identify your lock’s specific engineering family. While everyday school padlocks are simple, high-security models rely on distinct physical keys and internal components—making it crucial to learn about identifying and fixing common lock mechanism failures before attempting a reset.

Lock Family	Common Models	Is it Resettable?	Reset Method	Required Tools
Classic Rotary Dial	1500D, 1530D	No (Factory Hardcoded)	None (Must recover code)	None
Set-Your-Own Wheel	175, 178, 643D	Yes	Shackle-turn or side key	K1 Reset Tool (or paperclip)
Directional Slider	1500iD (Speed Dial)	Yes	Rear reset lever (R-position)	None
Built-In Locker Lock	1630, 1652, 1670	Yes (5 Pre-sets)	Control key + Rear push button	Master Control Key
Smart / Keyless	4400D, 4401DLH	Yes	App interface / Master Code	Bluetooth / Smartphone

Step-by-Step Reset Procedures by Family

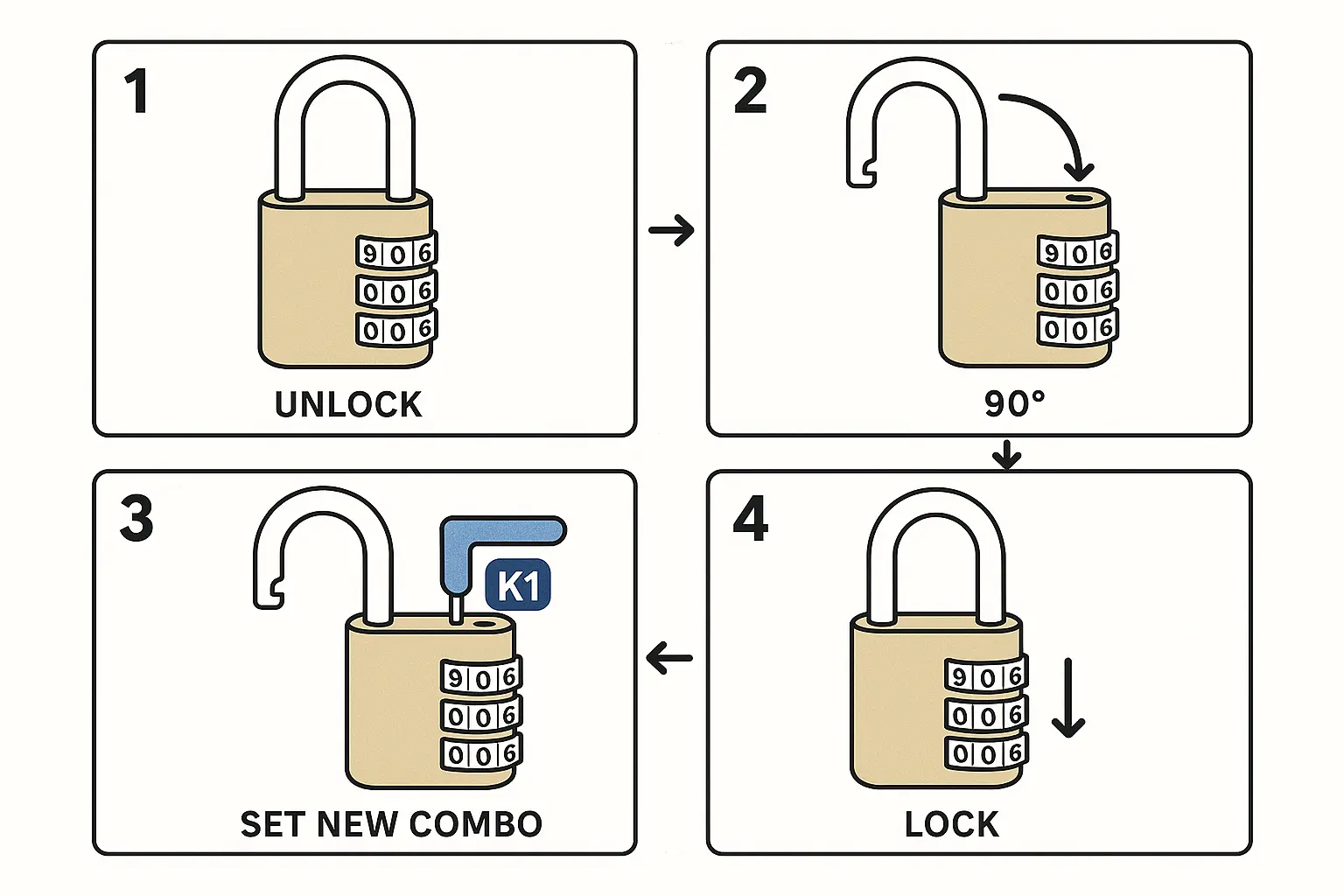

The Multi-Wheel Bottom-Dial Family (175/178/643D)

These heavy-duty locks are popular for gates and toolboxes. To reset them:

Open the lock using the current combination.
Insert the proprietary K1 reset tool into the small hole on the side or bottom.
Turn the tool exactly 90 degrees. Do not force this step. Forcing the tool without proper alignment misaligns the internal gate, causing a permanent malfunction.
Set your new combination, then turn the reset tool back to its original position.

The Directional Family (1500iD Speed Dial)

This unique model uses sliding tensioners rather than rotating wheels:

Open the lock and slide the reset lever on the back of the lock case into the “R” position.
Enter your new directional pattern.
Push the reset lever back to its normal operating position.
The Critical Step: Squeeze the shackle twice firmly to clear the internal chambers. Failing to “double-clear” registers a ghost input, locking you out on the next try.

Built-In Locker Locks (1630/1652)

Used heavily in schools and gyms, these mechanisms do not allow infinite customization. Instead, they feature an internal wheel pack with five pre-cut factory combinations. Resetting to the next combination requires inserting a supervisor control key, pressing the small button on the back of the lock case, and cycling the mechanism to the next pre-set sequence.

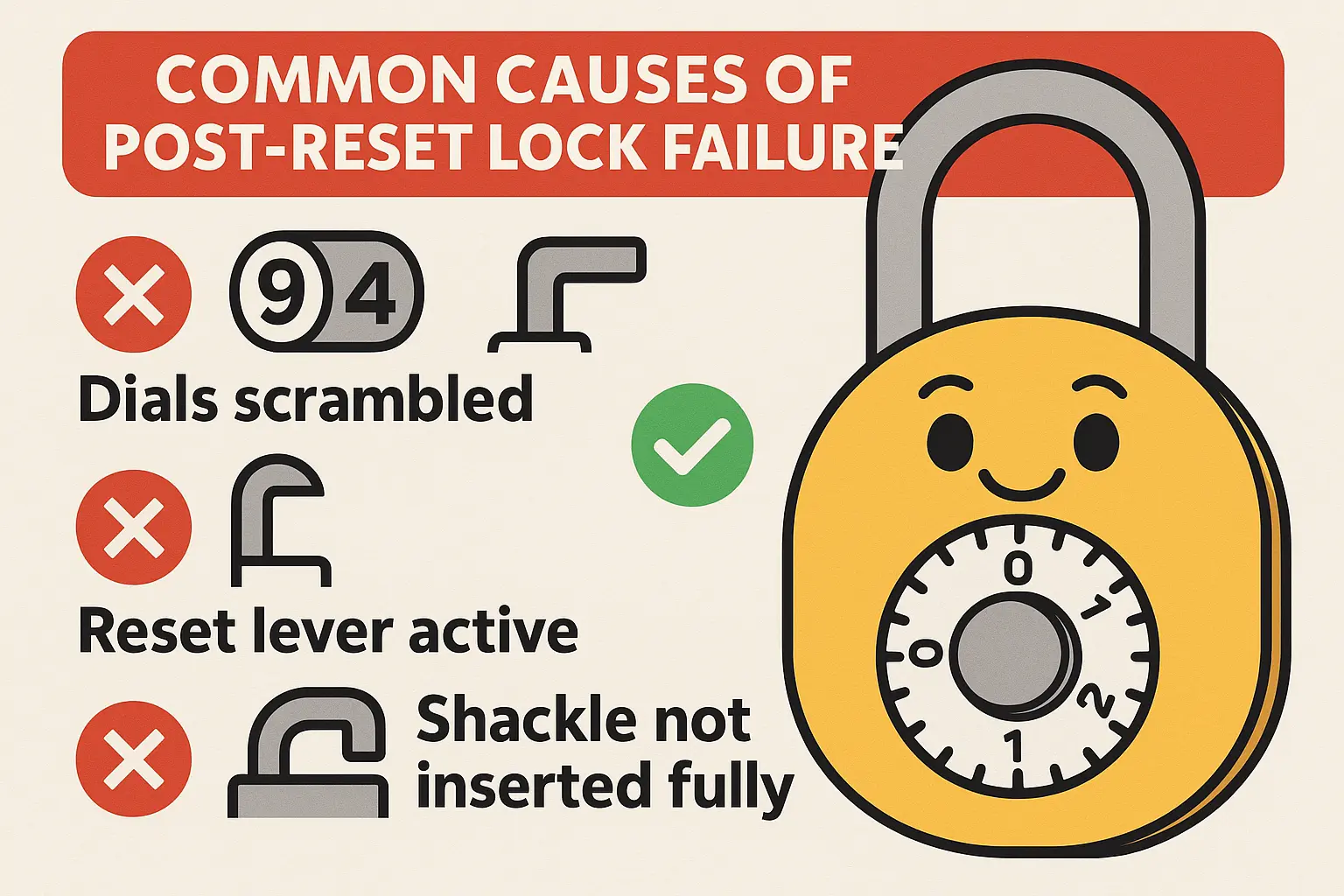

Post-Reset Troubleshooting: 'My Padlock Won't Lock or Close!'

A massive frustration for users is the “won’t close” loop. This happens when the dials are scrambled while the padlock is still open, or if the reset tool was left engaged during combination entry.

To resolve this issue immediately:

Turn the dials back to your newly set combination.
Verify that the K1 reset tool is completely removed or the rear reset lever is disengaged.
Insert the shackle back into the lock body. It should click into place smoothly.

Frequently Asked Questions

Can I reset a classic rotary dial Master Lock?

No. Classic dial-on-face Master Locks, such as the 1500D, are mathematically hardcoded during manufacturing. They utilize a three-disc wheel pack with fixed notches and cannot be physically reset to a new combination.

Why does my combination lock refuse to snap shut?

This typically occurs if the dials were scrambled while the shackle was open, or if the reset tool remained engaged. Return the dials to your correct combination, ensure the reset mechanism is disengaged, and close the lock.

Are modern Master Locks vulnerable to shimming?

Only entry-level models with simple locking latches are vulnerable. Professional-grade high-security padlocks feature specialized anti-shim plates and ball-bearing locking mechanisms that are completely immune to physical shimming.

Forgotten Code Recovery: Official vs. Defensive Paths

If you have forgotten your combination, you have two primary options:

The Official Manufacturer Path: Master Lock offers a serial number recovery service. This is a slow, methodical process that requires you to download a form, obtain a notary signature, copy the physical lock face, pay processing fees, and wait weeks for a response.
The Professional Defensive Path: Low-security locks are structurally vulnerable to physical bypasses like shimming or tactile decoding. While these bypasses highlight the vulnerability of older mechanical designs, high-security models feature tight tolerances and specialized internal plates that block physical manipulation.

If you are dealing with a critical security failure, a high-security lock upgrade, or an urgent house lockout, trying to DIY your way through a lock can compromise your property’s safety. For professional, on-site assistance, finding a reliable locksmith near me ensures your locks are serviced quickly without structural damage.
