Boat Hatch and Compartment Locking System Upgrade Guide

Published: Aug 21, 2026

Every boater knows the silent frustration of running at full throttle while a deck hatch rattles relentlessly behind them. Worse is opening a “dry” gear locker after a heavy rain to find expensive electronics or life jackets sitting in a pool of water. Selecting the right replacement hardware is critical when securing your vessel, yet finding reliable advice is notoriously difficult. Many boat owners are forced to parse outdated online forums or risk buying ill-fitting parts from giant transactional e-commerce catalogs.

Securing your vessel requires specialized knowledge of how locking mechanisms interface with marine fiberglass, aluminum, and dense carpeting. This guide breaks down the engineering specifications, sizing criteria, and material selection needed to upgrade your boat compartment locks with complete confidence.

Slam Latches vs. Compression Latches: Which Keeps Gear Dry?

Choosing the correct locking mechanism depends on whether your priority is quick access or complete weatherproofing. The marine industry relies on two primary latch designs: slam latches and compression latches.

A slam latch features a spring-loaded strike. When you push the hatch lid down, the strike clicks closed automatically. While highly convenient for livewells or frequently accessed glove boxes, slam latches do not pull the hatch down against its rubber seal. Because they do not compress gaskets, they are fundamentally unsuitable for dry storage compartments.

In contrast, a compression latch utilizes a “lift-and-turn” folding handle. Folded flat, the handle pulls the cam shaft upward by 0.15″ to 0.25″. This physical lifting action compresses the rubber hatch gasket to create an airtight, vibration-free, and watertight seal. This is the gold standard for protecting electronics, tackle boxes, and dry safety equipment.

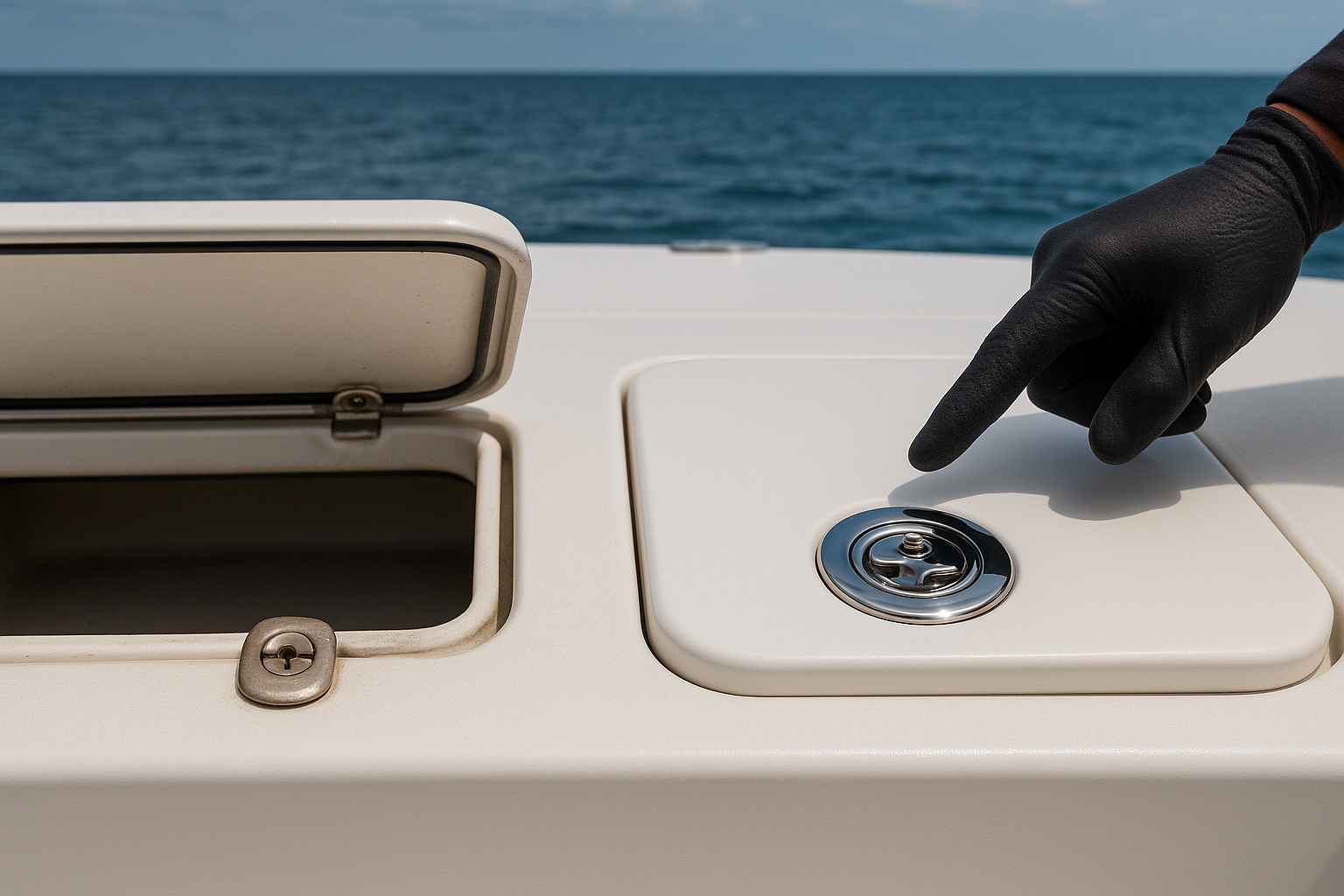

This comparison visually clarifies how compression latches create a watertight seal by compressing hatch gaskets, unlike slam latches that only click shut. Understanding this helps boaters choose the right locking mechanism for dry storage compartments.

Unlike a heavy-duty option like certain padlock types used on dock boxes, flush-mount latches must install seamlessly into the deck to prevent trip hazards. This makes understanding your boat’s specific design vital.

Sizing Secrets: "Measure Twice, Cut Once"

The biggest pitfall when upgrading or replacing hatch locks is purchasing the wrong size. Marine manufacturers have standardized hatch lock cutouts into three primary mounting hole diameters:

2.0″ (50mm): Common on general runabouts, ski boats, and smaller utility hatches.
2.5″ (64mm): Standard on heavy-duty fiberglass offshore center consoles (e.g., Gemlux or Yellowfin).
2.375″ (2-3/8″): A highly specific cutout designed almost exclusively for carpeted bass boats and multi-species vessels (such as Ranger, Triton, or Skeeter).

The 2-3/8″ cutout allows extra space for marine carpet to wrap over the edge of aluminum or fiberglass deck hatches without binding the latch body. Buying a standard 2″ or 2.5″ latch for these vessels will result in costly return shipping and major installation headaches.

Equally critical is calculating your “Grip Range.” This is the distance from the underside of the latch flange down to the striking surface of the cam arm. Premium marine locks feature adjustable, curved, or straight offset cam arms. By flipping or rotating the cam bar, you can adjust the overall grip range anywhere from 0.375″ to over 1.5″, allowing you to customize the lock’s tension against the frame.

This visual guide walks readers step-by-step through measuring their hatch cutouts and calculating grip range accurately, ensuring they select locks that fit perfectly without drilling new holes or causing installation errors.

Materials Science: Steel vs. Plastic

The marine environment is exceptionally harsh, making material selection the single biggest factor in your locks’ longevity.

316 Marine-Grade Cast Stainless Steel: The ultimate material for saltwater. It contains 2% to 3% molybdenum, which prevents pitting, structural degradation, and crevice corrosion. These locks easily last over 10 years without losing structural integrity.
Zamac (Chrome-Plated Zinc Alloy): A cheap alternative often found on factory-installed locks. In saltwater, Zamac rapidly undergoes galvanic corrosion and produces a white oxide powder. This “white rust” freezes the internal lock cylinder, making it brittle and prone to snapping under heavy foot traffic.
UV-Stabilized Nylon/Plastic: Nylon is rust-proof and highly affordable but susceptible to sun damage. Under constant UV exposure, it loses its plasticizers, turning brittle and structurally failing under load within 3 to 5 years.

When considering physical security for your vessel’s storage lockers, choosing premium 316 stainless steel marine locks prevents chemical corrosion while keeping thieves out.

Resolving the "Key Management" Nightmare

No boater wants to fumble with a ring of six different keys to open different deck hatches. When planning a refit, look for “Keyed Alike” multi-pack sets. This allows a single key code (such as the industry-standard CH751 or SC001) to operate every latch on your boat. If your boat requires complex, multi-tiered security, you can explore the mechanics of lock barrel types to design a master-key system optimized for your specific layout.

For DIYers, replacing a broken lock is highly straightforward. When performing a new lock installation, always clean the mounting surface thoroughly and apply a high-quality marine sealant (like 3M 4200) beneath the flange. This prevents water from seeping into the core material of your deck, protecting fiberglass and plywood from rotting over time. Additionally, properly mounting your locking system prevents misalignment, which saves you from dealing with a stuck latch or requiring an emergency door lock repair down the line.

Should you ever snap a key off in a weathered, stiff lock cylinder, don’t panic or try to pry it out with a screwdriver. You can easily learn how to perform a safe broken key extraction to save the lock mechanism and avoid damaging the surrounding hatch material.

Frequently Asked Questions

Can I replace my plastic boat latches with stainless steel ones?

Yes, provided the cutout diameters match. Most premium stainless steel latches are designed to drop directly into existing standard 2.0″, 2.375″, or 2.5″ holes.

How do I know if my hatch requires a compression latch?

If the compartment houses items that must remain dry (like electronics, tackle, or clothing) or if the lid rattles while running, you should upgrade to a compression latch.

Why is my marine lock cylinder frozen?

This is usually caused by galvanic corrosion in cheap chrome-plated zinc (Zamac) locks. Standard maintenance includes rinsing with fresh water and applying a marine-grade dry Teflon lubricant.
