A cracked, rusted, or leaking basement bulkhead door does more than hurt your home’s curb appeal. It creates a critical vulnerability in your home security, allows water infiltration that ruins finished basements, and introduces persistent drafts. Upgrading to a modern, weather-tight cellar door is a smart investment that restores structural integrity and keeps your home secure.
For homeowners evaluating whether to tackle a basement bulkhead door replacement as a DIY project or hire professional residential locksmith and security installers, making the right decision requires a clear understanding of sizing, materials, installation mechanics, and real-world costs.
Measuring Your Areaway: The Bilco Sizing Guide
Ordering the wrong size door is the single largest cause of project delays. Before purchasing, you must measure your concrete areaway’s three critical points: Inside Width (W), Areaway Length (L), and Sidewall Height (H).
Standard Bilco doors are categorized into precise dimensions:
Size O: 47″ W x 58″ L x 29.5″ H
Size B: 51″ W x 64″ L x 22″ H
Size C: 55″ W x 72″ L x 19.5″ H
Size SL: 51″ W x 43.25″ L x 51.5″ H
If your masonry opening is longer than standard dimensions, you do not necessarily need a costly custom door. Bilco offers standard extensions in 6”, 12”, 18”, 24”, and 30” increments to easily bridge the gap.
Classic Steel vs. Ultra Series vs. Competitor Alternatives
Choosing the right material impacts both your upfront budget and long-term maintenance schedule.
Bilco Classic Series (Steel)
The traditional choice. These heavy-duty steel doors offer classic durability with an average lifespan of 20 to 30 years if properly maintained. However, raw primed steel models must be painted with an exterior metal-enamel paint within 45 days of installation to preserve the manufacturer’s warranty and prevent immediate rusting.
Bilco Ultra Series (Polyethylene)
Constructed from high-density polyethylene with a realistic driftwood finish, this series is completely rust-proof, dent-resistant, and never requires painting. While the upfront cost is higher, it completely eliminates ongoing surface maintenance.
Brand Alternatives
Steelway Custom Doors: Features precision, laser-cut, fully welded all-metal construction with an integrated zero-leak design.
ClamDoor: Made of 100% lightweight fiberglass, offering exceptional resistance to salty air in coastal climates.
Cleargress: Built with high-grade aluminum frames and impact-resistant polycarbonate panels, allowing natural daylight to illuminate dark basement stairwells.
Financial Planning: DIY vs. Professional Installation
Understanding your budget helps guide your execution plan.
Cost Component
DIY Project Cost
Professional Service Cost
Bulkhead Door Unit
$500 – $2,500
$500 – $2,500
Tools & Consumables
$150 – $300
Included
Labor Fees
$0
$300 – $800
Total Cost
$650 – $2,800
$800 – $3,300
Completing the project yourself saves on labor but requires specialized tools, including a high-torque hammer drill, masonry bits, socket wrenches, and high-quality polyurethane sealant. For complex structural overhauls—such as widening old brick or pouring new concrete sidewalls—costs can exceed $4,000, making professional assistance the safest and most efficient path.
Step-by-Step Installation Mechanics
Installing a bulkhead door demands precision to ensure long-term security and weather resistance.
1. Site Preparation
Carefully remove the old door. Chip away loose mortar, clean rust and old adhesive from the concrete surface, and repair any damaged foundation walls. Be sure to patch old anchor holes with a high-strength structural mortar.
2. Loose Assembly
Lay out the metal frame parts on a flat surface. Bolt the side panels, header, and sill plate together loosely first. Leaving the bolts slightly loose allows you to make minor adjustments once the assembly is placed on the concrete foundation.
3. The Plumb & Square Test
Place the frame onto the masonry opening. Measure diagonally from opposite corner to opposite corner. Both diagonal measurements must be completely identical. If the frame is out of square, the door leaves will bind and fail to close tightly.
4. Anchoring to Masonry
Using a hammer drill with masonry bits, drill pilot holes through the pre-marked holes in the frame flanges. Secure the frame directly into the concrete using heavy-duty drive-in nail anchors or Tapcon screws.
5. Hardware and Gas Springs
Hang the door leaves on their hinges. Next, install the gas lift-assist struts. Crucial Pro-Tip: The cylinder body of the gas spring must point upward to keep the internal seals lubricated and prevent sudden gas leaks or strut failure.
6. The Waterproof Seal

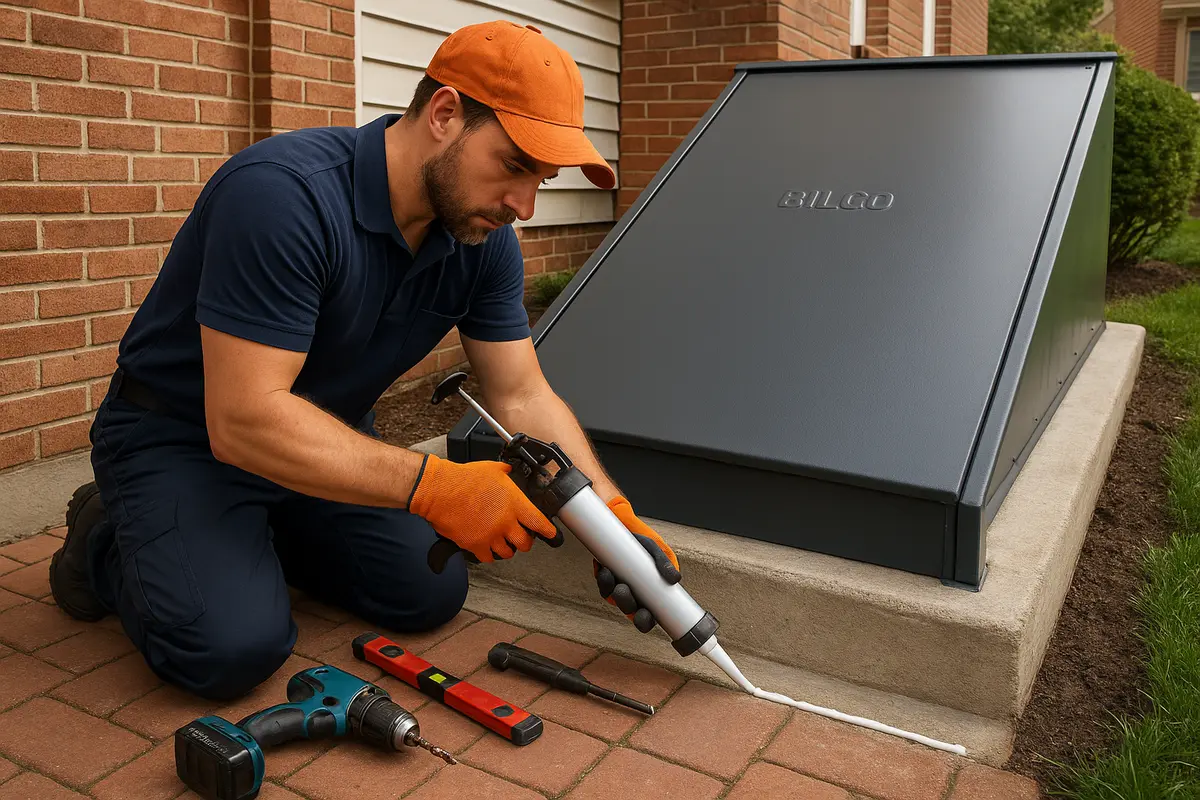

Apply a generous, continuous bead of premium exterior polyurethane sealant along all joint interfaces where the metal frame meets your concrete foundation.
Post-Installation Weatherproofing and Sealing
An unsealed door leads to drafts and musty odors. To maximize performance, install a dedicated self-adhesive neoprene weatherstripping kit along the inner mating flanges of the doors. This simple step blocks wind, dust, and insects. Additionally, inspect the joint where the door header connects to your home’s siding, applying silicone flashing or premium caulk to prevent rain run-off from getting behind the frame.
Frequently Asked Questions
What happens if I do not paint my steel Bilco door within 45 days?
Leaving primed steel exposed to weather elements beyond 45 days voids the manufacturer’s warranty. The protective primer will begin to break down, allowing moisture to reach the steel, which leads to rust and rapid structural decay.
Can I install a standard Bilco door on an uneven concrete foundation?
No. Standard frames require a flat, level concrete surface to ensure the doors align. If your masonry foundation is crumbly, out-of-plumb, or uneven, you must repair and level the concrete cap with mortar before anchoring the frame.
How do I know if I need a custom size or a standard extension?
Measure your overall areaway length. If it exceeds the standard sizes (O, B, or C), look at standard extension options (ranging from 6” to 30”). Extensions are much more cost-effective than ordering a fully customized door. For more details on custom configurations, explore our comprehensive FAQ database or reach out to our team to discover how our other services can secure your home.
Troubleshooting Common Installation Mistakes
Even minor misalignments can cause ongoing operational issues:
Out-of-Square Frame: Doors that require force to latch or exhibit uneven gaps are usually caused by anchoring a frame that is not square.
Water Infiltration: If water pools at the bottom of your steps, check the foundation rise. The concrete areaway must sit at least 4 inches above the surrounding grade, and the masonry sealant must be free of gaps.
Blown Gas Struts: Installing struts upside down drains the internal lubricants, leading to stiff, noisy operation and premature structural failure.
For homeowners who prefer peace of mind over a complicated weekend project, our team provides expert mobile locksmith and structural security installation services. We make sure your entryways, emergency exits, and high-security installations are perfectly aligned, sealed, and secure.
