Selecting the ideal automated entry system requires balancing floor space constraints, high-traffic demands, and rigorous building codes. For architects, contractors, and facility managers, specifying the wrong layout can lead to costly retrofits, code violations, or building bottlenecks.
By understanding the distinct advantages of various automatic sliding doors, you can make an informed decision that enhances both flow and security.
Understanding physical layouts is key to selecting the right automated door. While standard doors serve basic openings, spatial and physical limitations often call for advanced engineering configurations.
Standard sliding configurations require a 1:1 ratio of slide-path wall space to passage width. While reliable and cost-effective, they are highly inefficient in narrow structural footprints since they require ample pocket space for the panels to open.
A telescopic sliding door system divides door leaves into parallel, nesting panels that slide on multiple tracks. By stacking the leaves, a telescopic system yields 33% to 60% greater clear-opening width than standard sliding systems within the exact same structural rough opening.

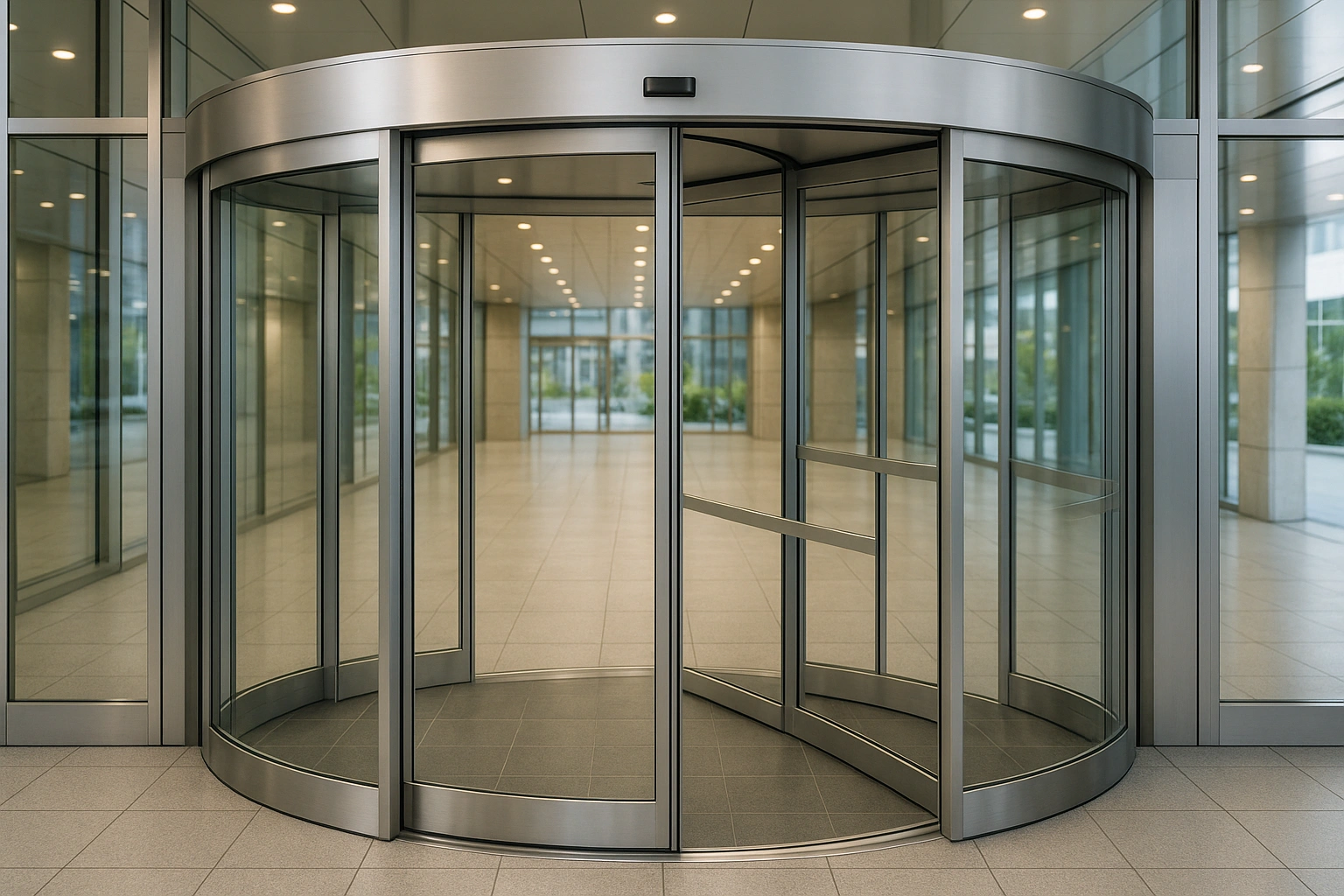

Designed for architectural elegance, curved doors offer a spacious, aesthetic entry. While they perform similarly to traditional revolving doors in managing drafts and thermal insulation, they provide superior accessibility for gurneys, luggage, and large crowds.
The physical performance of these systems depends heavily on drive-track engineering.
Older doors rely on suspended track systems, which often sag under heavy glass loads. Modern solutions use interlocking carrier systems housed inside a structural box header. This transfers the door weight directly to the building’s structural frame, eliminating sagging and ensuring smooth operation.
These systems require complex drive curves. Top-tier systems utilize acoustically decoupled running tracks, high-density polymer rollers, and brushless DC motors running low-momentum toothed belts. This reduces operation decibels—critical in quiet clinical and hospitality settings.
The environment dictates the door configuration. Selecting the right design prevents operational downtime and maintains security.
For standard retail storefronts, bi-parting options with continuous-duty motors are ideal. However, for extreme high-traffic or loading areas, installing an automated high speed door helps control temperatures and keeps traffic moving smoothly.
Healthcare facilities require specialized features. ICU and surgical suites demand touch free doors to prevent cross-contamination. True hermetic doors use a “drop-and-seal” track system, lowering the carrier at the end of the closing cycle to compress EPDM gaskets against the frame. This meets air leakage standards and isolation cleanroom requirements (ISO Class 1 to 10).
To help specifiers choose the correct entrance configuration, this matrix breaks down key design variables.
Yes. Modern access control, fail-safe magnetic locks, and specialized types of sliding glass door locks can be integrated into automatic systems during a commercial door hardware installation to protect your property.
Because they use interlocking panels, telescopic systems require precise initial alignment. However, using high-density polymer rollers and enclosed box headers significantly minimizes maintenance compared to older, track-suspended models.
Single-slide automatic doors are ideal for tight commercial entryways or side entrances where wall space is limited on one side. Bi-parting doors feature two panels that slide open in opposite directions, making them the preferred choice for high-traffic main entrances like retail stores, hospitals, and airports that require wide, rapid access.
Every automated entrance must comply with national safety standards. Key regulations include:
Managing these requirements involves integrating advanced access control. Working with a commercial locksmith service simplifies this process. Integrating a secure door access control system ensures compliance with local life-safety and accessibility laws.
Choosing the right automatic door requires a balance of spatial design, mechanical reliability, and safety compliance. Sure Lock & Key offers over 35 years of physical security expertise to help you specify, secure, and maintain your entryways. Contact our team today for an AAADM-compliant walkthrough or professional design consultation.
